Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHL16060

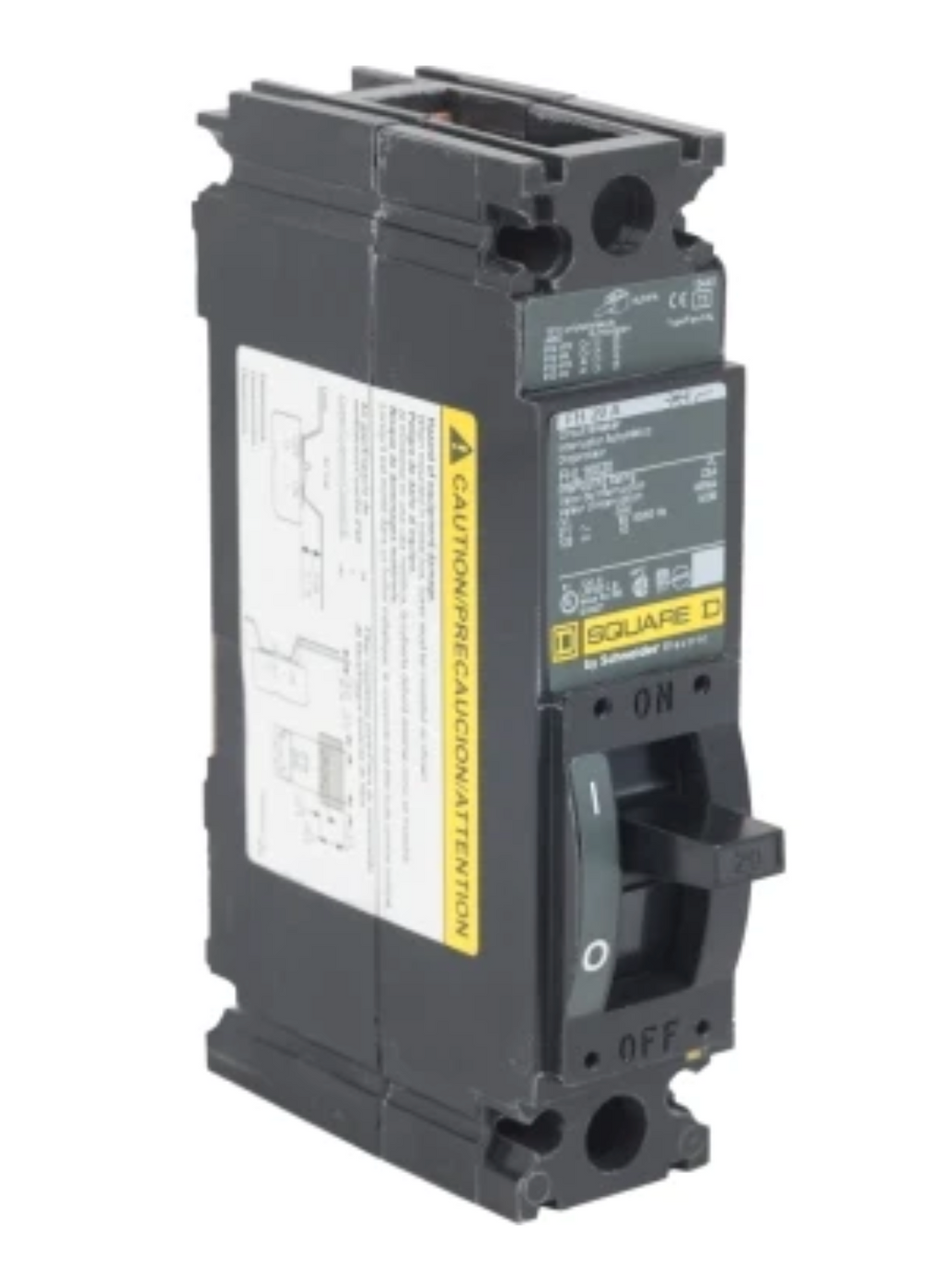

FHL16060 is a 60 Amp, 277 Volt, 1 Pole thermal magnetic molded case circuit breaker from Square D designed for unit mounting.This circuit breaker features a feed-thru connection type with long-time and instantaneous trip functions, providing reliable protection with a 25kA interrupting rating at 277V. It is part of the FHL series with an F frame and is UL and CSA certified for safety and performance.
- Manufacturer: Square D
- Model: FHL16060
- Amperage: 60 A
- Voltage: 277 V
- Poles: 1
- Mounting Type: Unit mount
- Interrupt Rating: 25kAIC at 277V
- Frame Type: F
- Connection Type: Feed-Thru
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Certifications: UL, CSA
- Terminal Connection: Line and Load Side Lug
Specifications
- Part Number: FHL16060
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 277
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901261551
- Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 2
