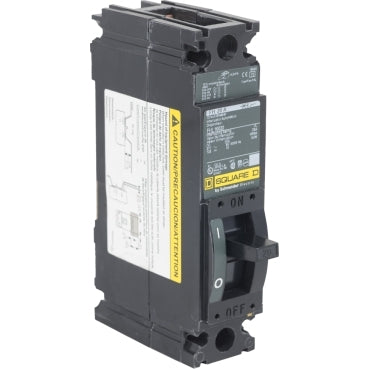

FHL16020 - Square D 20A 277V 1 Pole FHL Series Molded Case Circuit Breaker, Thermal Magnetic Trip, Feed-Thru, 25kA Interrupt Rating, UL/CSA

FHL16020

FHL16020 is a Square D 1 pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 20A trip rating, 277V AC voltage rating, and a robust 25kA interrupting capacity at 277V. It is part of the FHL series, offers feed-thru connection for easy installation, and is certified to UL and CSA standards for safety and compliance.

Key Specifications
• Part Number: FHL16020
• Manufacturer: Square D
• Amperage: 20A
• Voltage: 277V AC (600V frame)
• Poles: 1
• Mounting Type: Unit (molded case)
• Interrupt Rating: 25kA at 277V AC
• Series/Frame: FHL
• Trip Unit: Thermal magnetic
• Connection Type: Feed-thru
• Certifications: UL, CSA
• Wire Range: 14–4 AWG copper, 12–4 AWG aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL16020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901563105
• GTIN : 00785901563105
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 1.907
• Wire Size : AWG 14, AWG 4 copper)1, AWG 12, AWG 4 aluminium)1
