Product Info
- Manufacturer:Eaton
- Sub-Category:Heater Element
Description

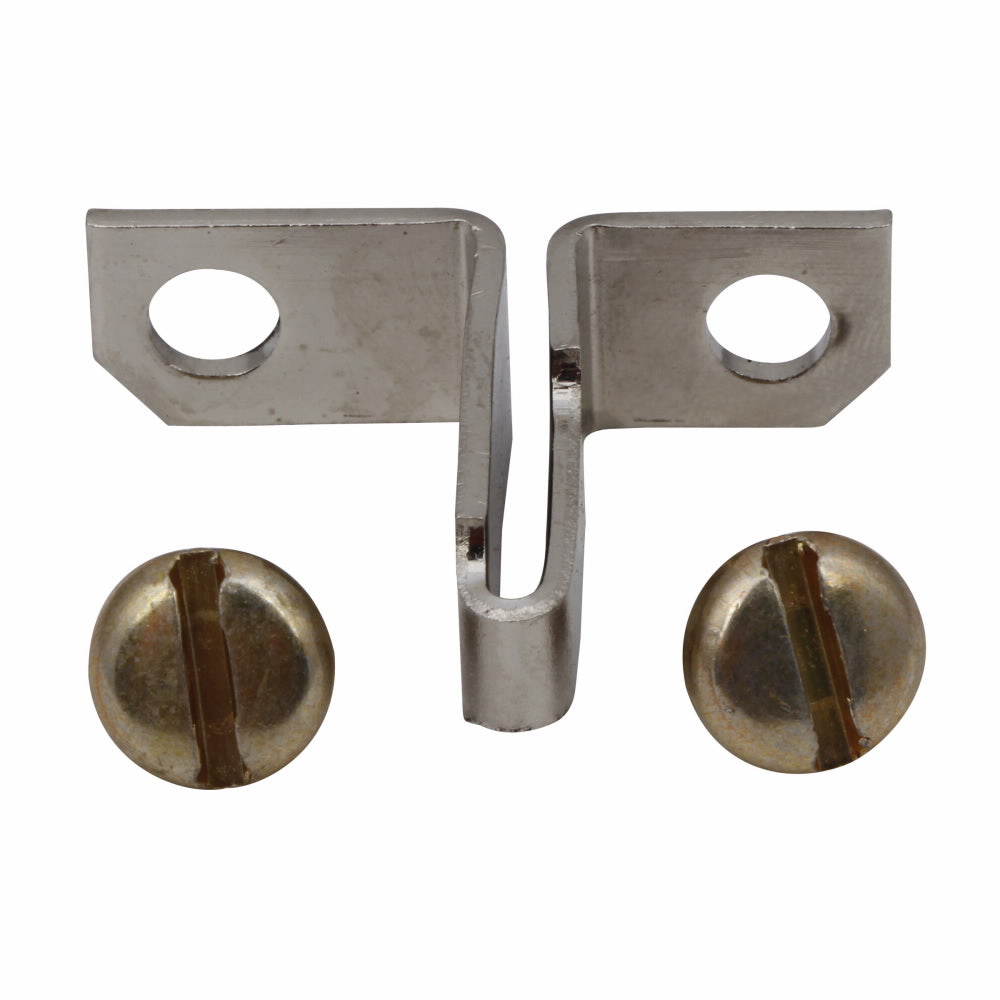

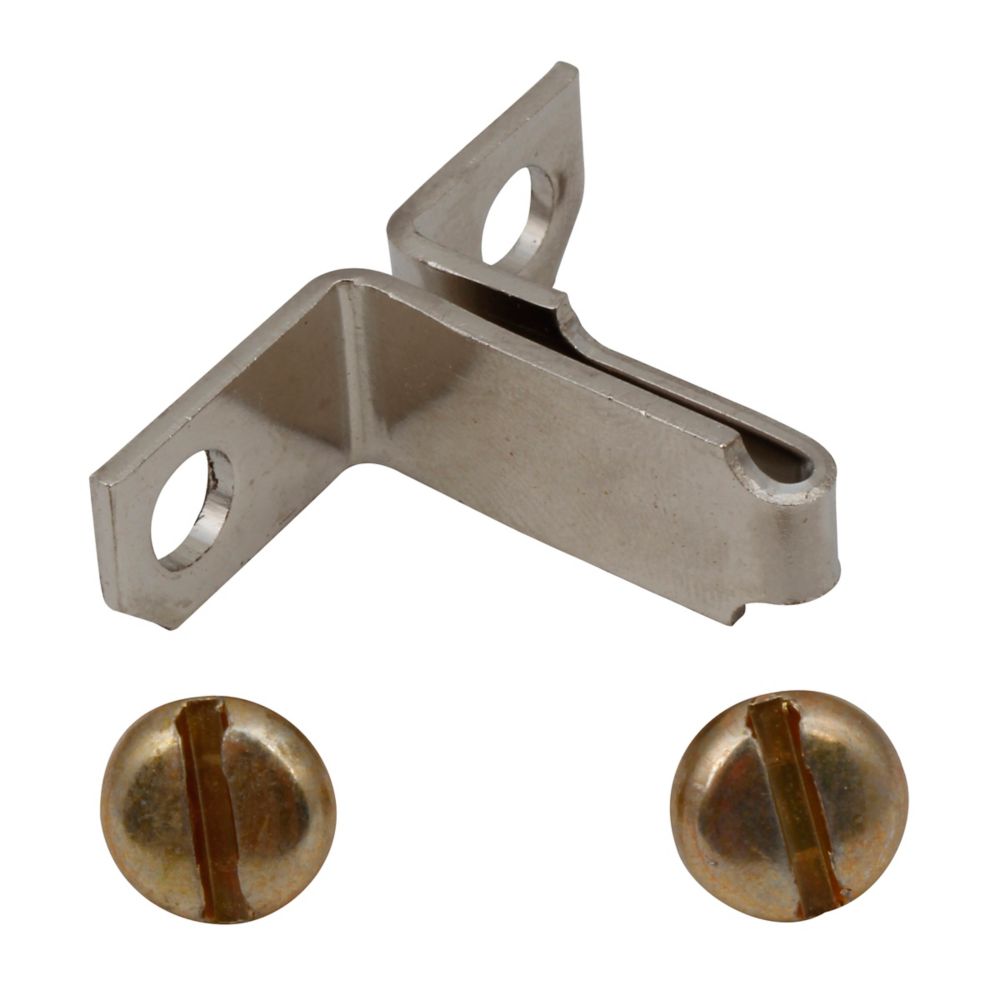

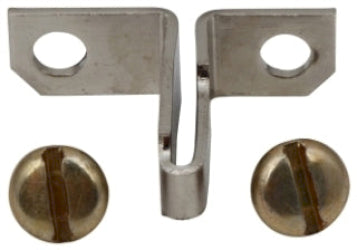

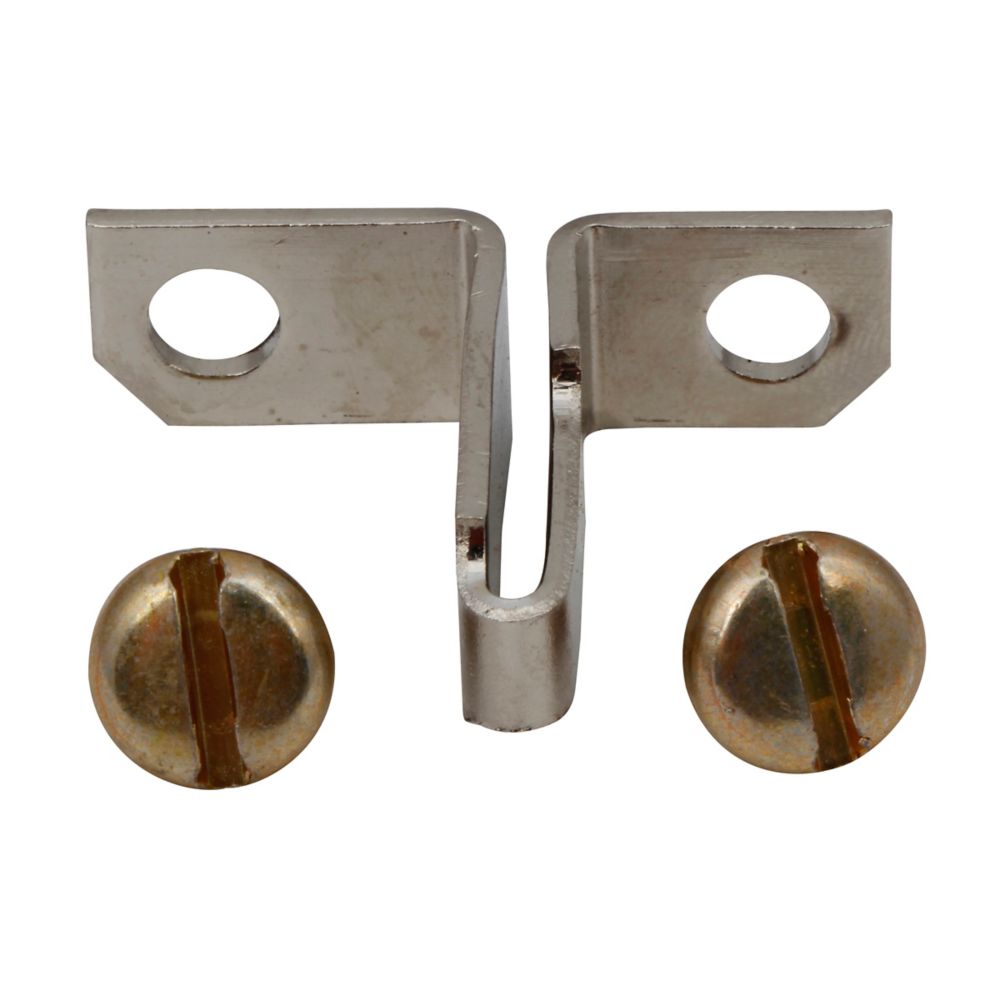

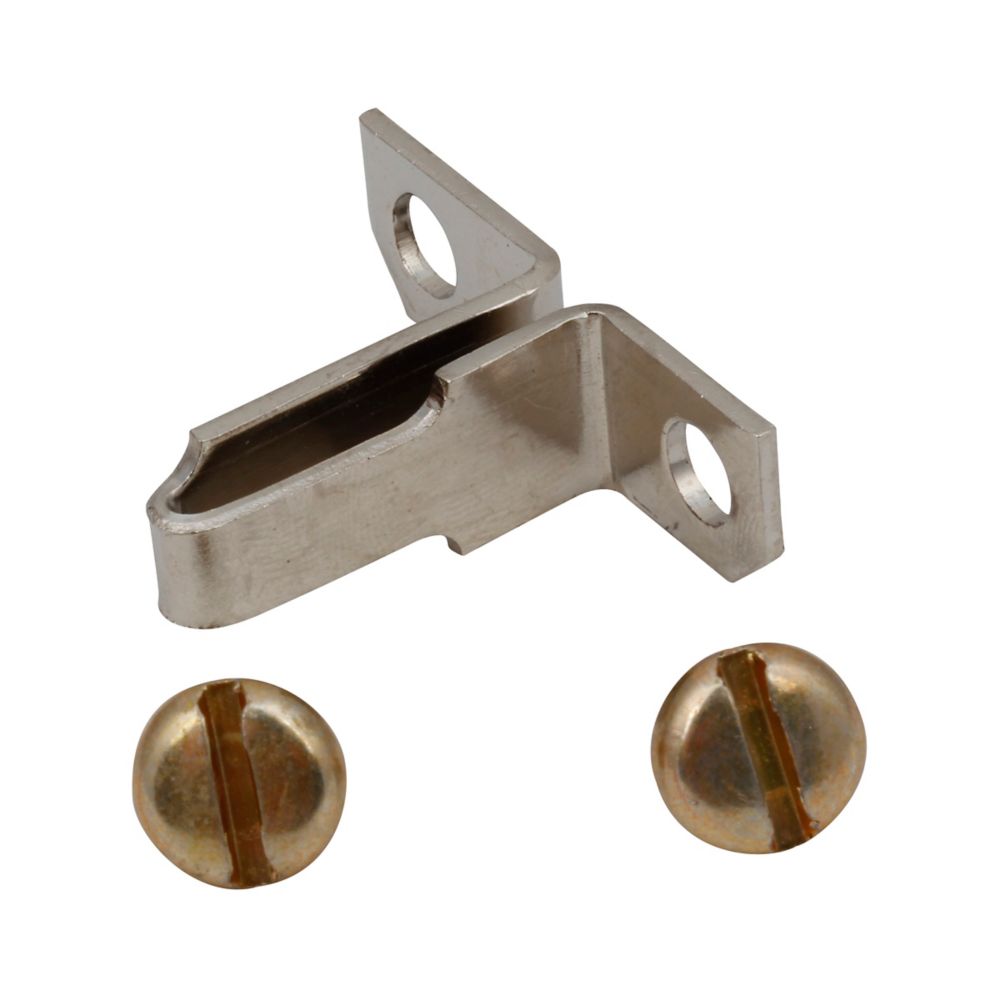

FH86
FH86 is an Eaton A200/B100 heater designed for use with A200 Starter Sizes 3 and 4, suitable for three-phase motor control applications. This heater provides reliable thermal overload protection for motors operating within specified current ranges. The FH86 heater is engineered for NEMA design standards and is compatible with Type A and B overload relays. It features both thermal and fast trip protection, ensuring safe motor operation under varying load conditions. Select heater coils based on the full load current shown on the motor nameplate for optimal performance.
- Part Number: FH86
- Manufacturer: Eaton
- Series: A200/B100
- Used With: A200 Starter Sizes 3 & 4
- Phase: 3-Phase Only
- Full Load Current Range: Ambient 74-78 A, Non-Comp 68-72 A
- Overload Relay Type: Type A and B
- Trip Type: Thermal and Fast Trip
- Design: NEMA
- Certifications: CSA Certified, UL Listed
- Service Factor: 1.15
- Temperature Rise: 40°C
Specifications
- Part Number: FH86
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : A200 Series
- Type : FH
- Full Load Amp Minimum : 68
- Full Load Amp Maximum : 72
Product Data
- UPC : 786678671024
- GTIN : 00786678671024
- Country of Origin : Dominican Republic
- Dimensions : 2.1 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 0.05 lb
- Certification : UL Listed,CSA Certified
