Product Info
- Manufacturer:Eaton
- Sub-Category:Heater Element
Description
FH83

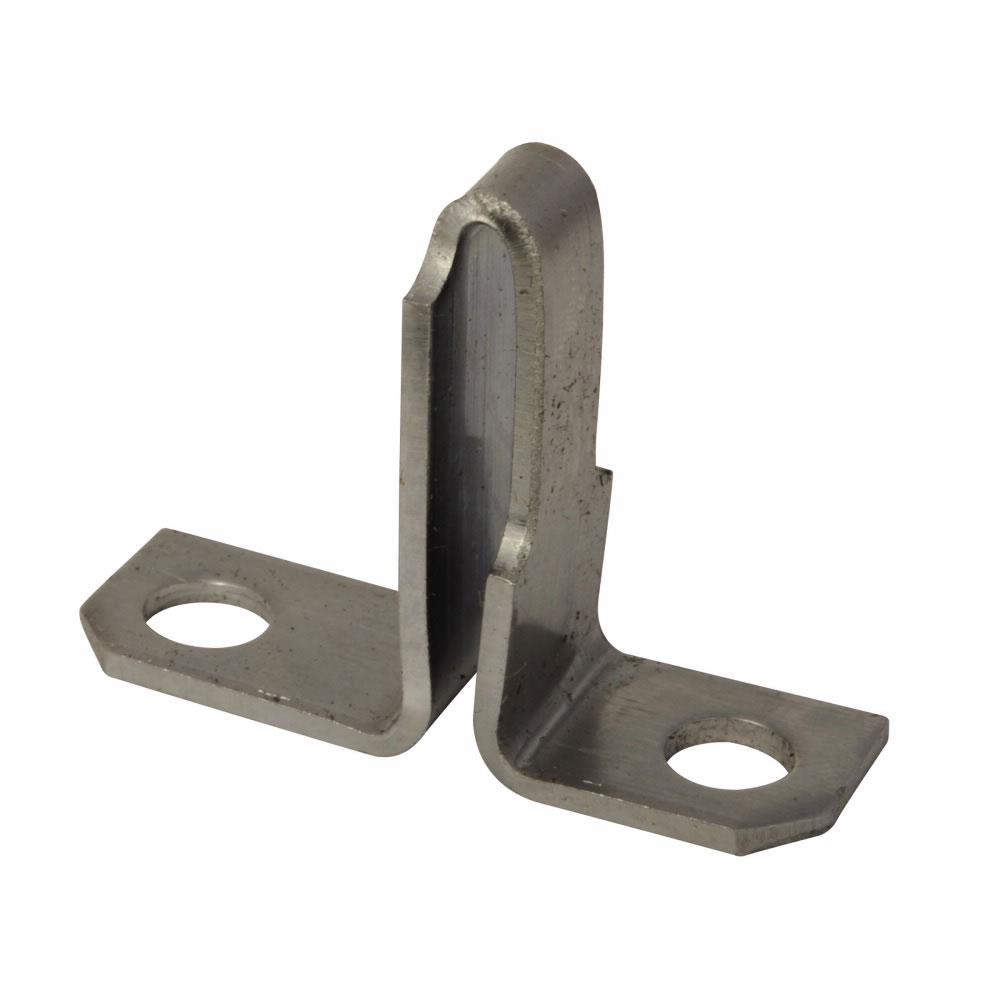

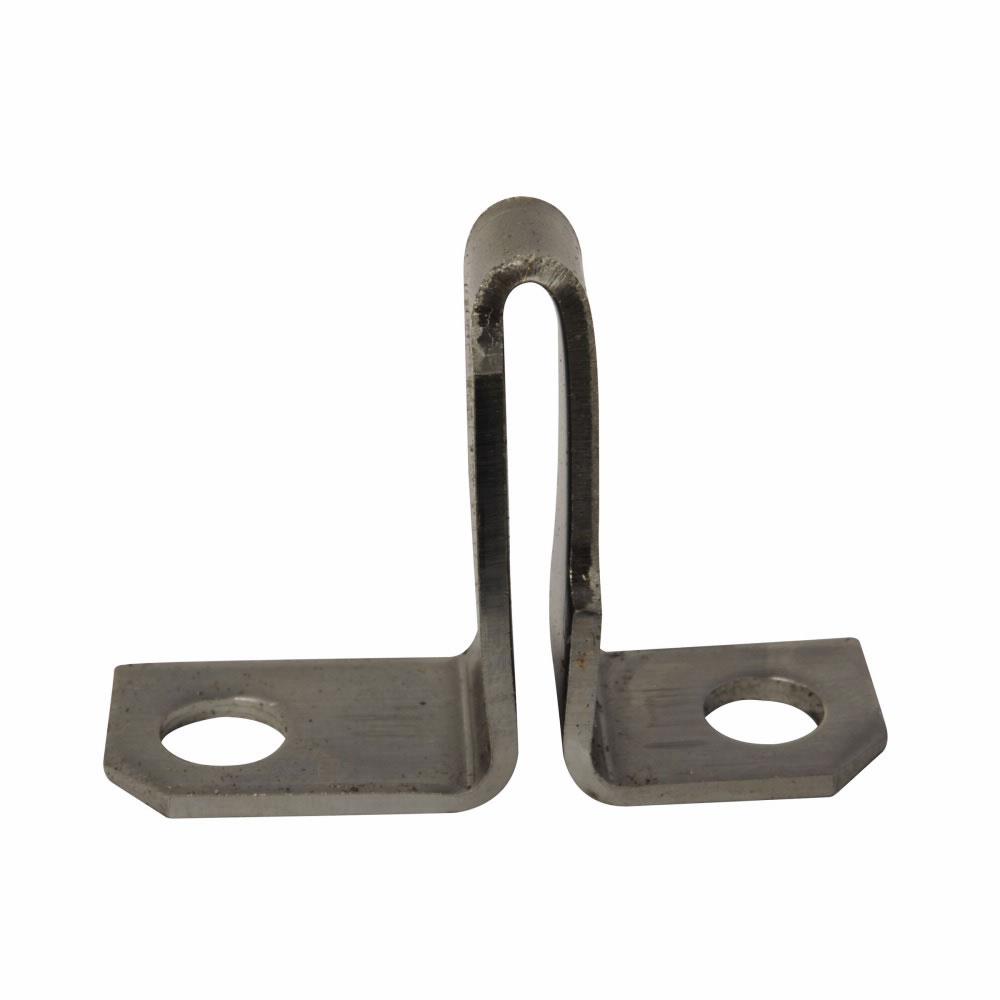

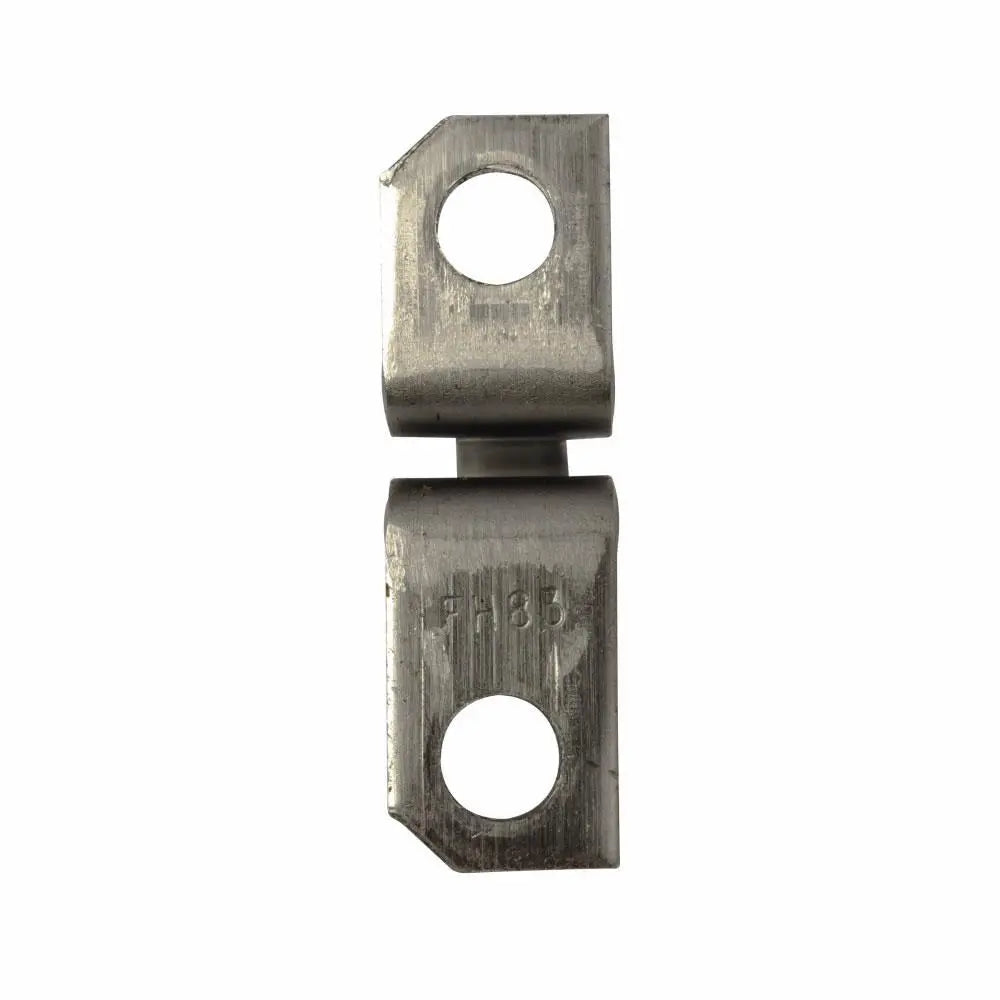

FH83 is an Eaton A200/B100 heater designed for use with A200 Starter Sizes 3 and 4, 3-phase only, providing reliable thermal and fast trip overload protection.This heater coil is rated for an ambient full load current range of 56-61 amps and a non-compensated range of 52-56 amps. It is compatible with Type A and B overload relays and built to NEMA design standards. The FH83 heater is specifically engineered to protect motors with a 40 degree Celsius rise and a service factor of 1.15, ensuring optimal motor control and protection.
- Key Specifications
- Manufacturer: Eaton
- Part Number: FH83
- Type: A200/B100 Heater
- Full Load Current Range: Ambient 56-61 A, Non-Compensated 52-56 A
- Compatible Overload Relay Types: A and B
- Used With: A200 Starter Sizes 3 and 4
- Phase: 3-Phase Only
- Design: NEMA
- Trip Type: Thermal and Fast Trip
- Certifications: UL Listed, CSA Certified
- Dimensions: 2.3 in Length, 1.8 in Width, 1.3 in Height
- Weight: 0.06 lb
- Part Number: FH83
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : A200 Series
- Type : FH
- Full Load Amp Minimum : 52
- Full Load Amp Maximum : 56
- UPC : 786678670935
- GTIN : 00786678670935
- Country of Origin : Dominican Republic
- Dimensions : 2.3 in x 1.3 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.06
- Certification : CSA Certified,UL Listed
