Description

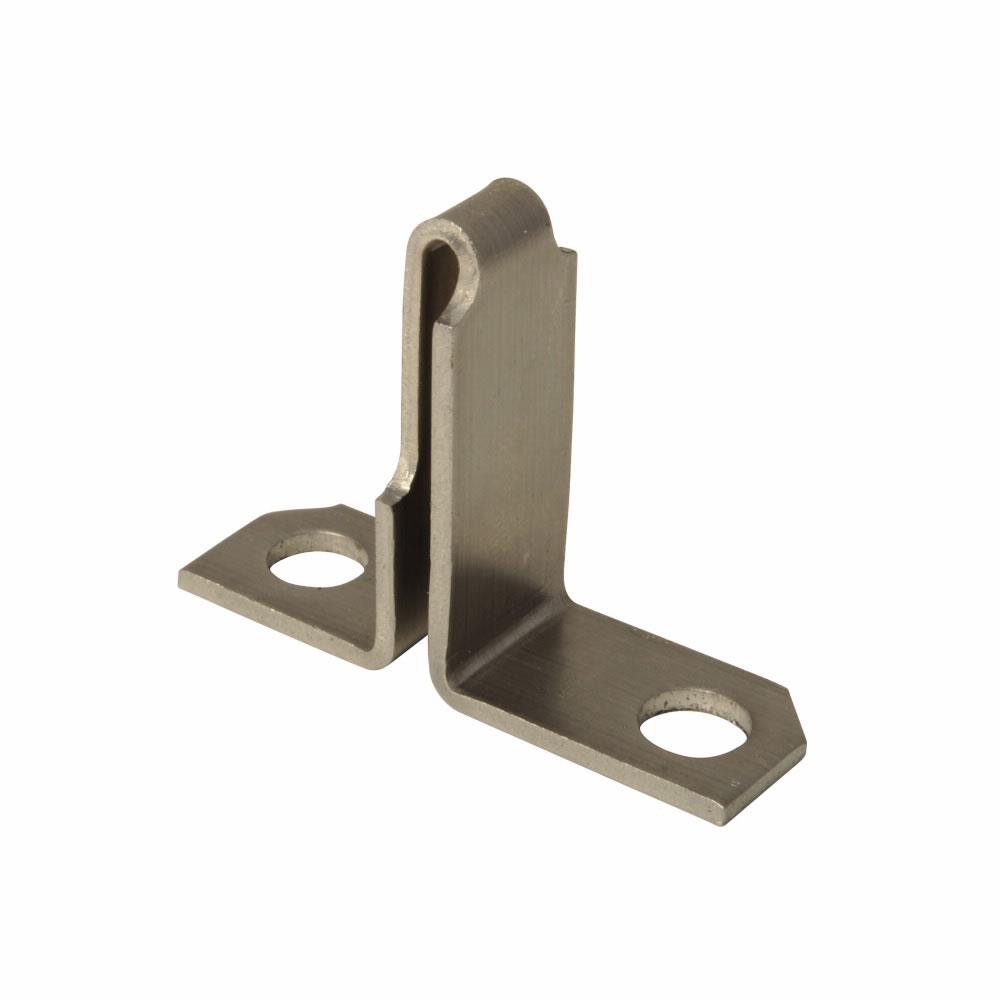

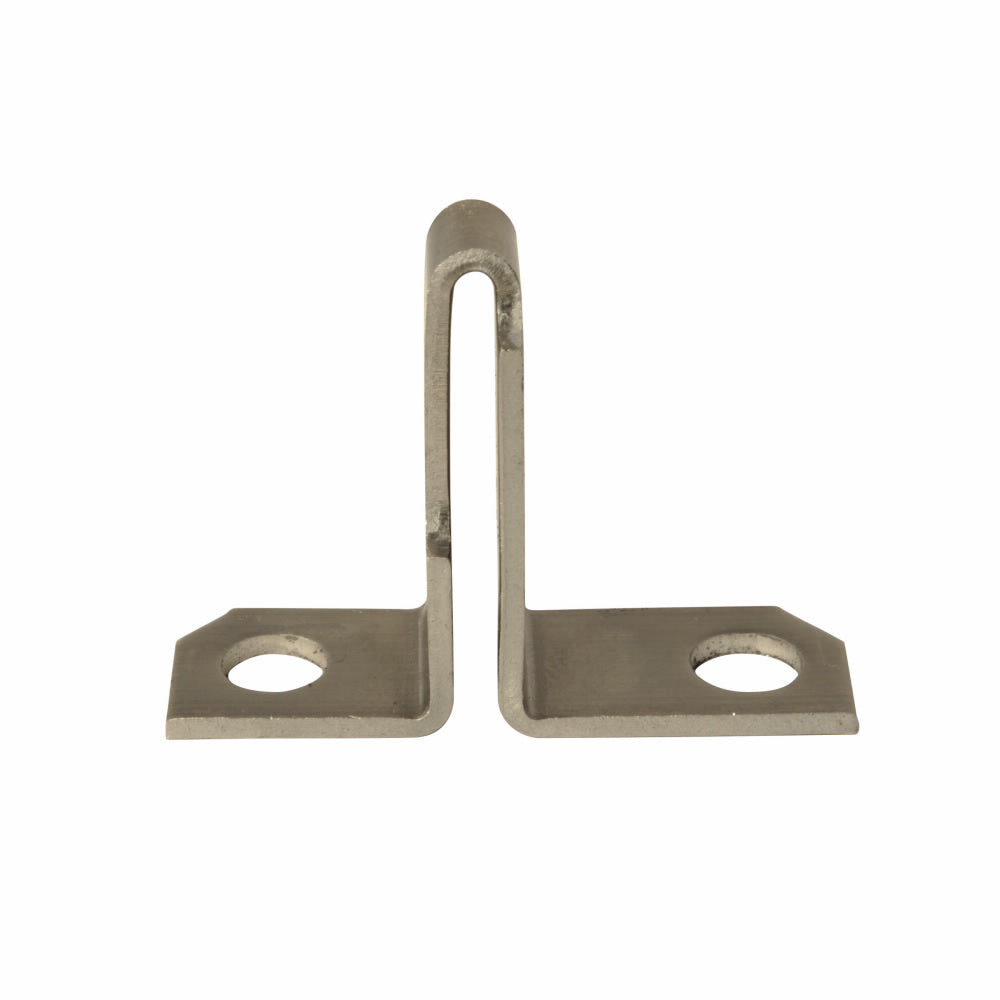

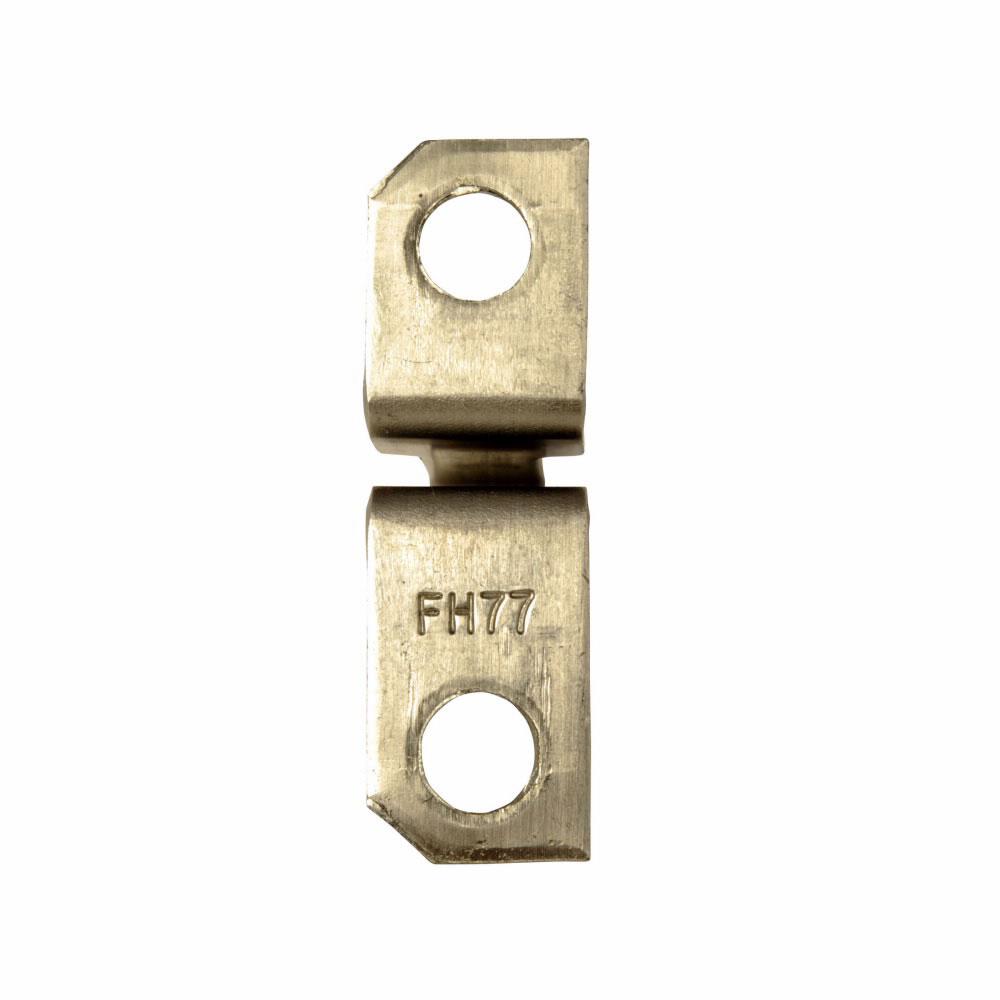

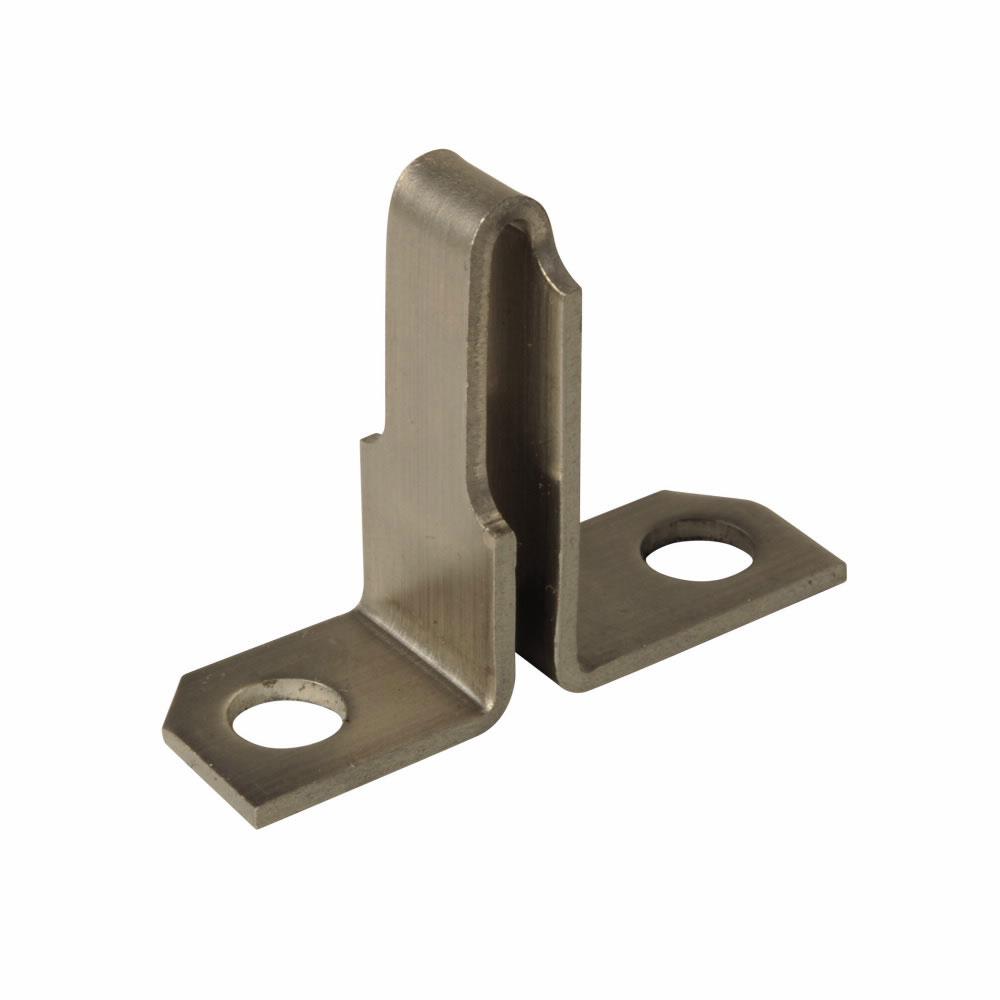

FH77
FH77 is an Eaton A200/B100 heater coil designed for motor control applications with A200 Starter Sizes 3 and 4, 3-phase only.
This heater coil provides thermal and fast trip protection with a full load current range of 28.2 to 33.5 amperes (ambient 30.7-33.5A, non-compensated 28.2-30.8A). It is compatible with Type A and B overload relays and features a NEMA design. The heater coils are rated to protect against a 40 degree Celsius rise and a service factor of 1.15, requiring two heaters for single-phase and three heaters for three-phase motors.
- Part Number: FH77
- Manufacturer: Eaton
- Type: A200 Heater Coil
- Full Load Current Range: Ambient 30.7-33.5 A, Non-Compensated 28.2-30.8 A
- Trip Type: Thermal and Fast Trip
- Overload Relay Compatibility: Type A and B
- Used With: A200 Starter Sizes 3 and 4
- Phase: 3-Phase Only
- Design: NEMA
- Dimensions: 2.3 in Length x 1.9 in Width x 1.3 in Height
- Certifications: CSA Certified, UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FH77
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : A200 Series
- Type : FH
- Full Load Amp Minimum : 28.2
- Full Load Amp Maximum : 30.8
Product Data
- UPC : 786678670751
- GTIN : 00786678670751
- Country of Origin : Dominican Republic
- Dimensions : 2.3 in x 1.3 in x 1.9 in (Length/Depth x Height x Width)
- Weight : 0.06
- Certification : CSA Certified,UL Listed
