FH52 - Westinghouse | Cutler Hammer Thermal Overload Heater Element, 28.9A–31.4A, NEMA Size 1 & 2, Class 20 Standard Trip, UL/CSA Certified, for A200/B100 Series Motor Starters

FH52

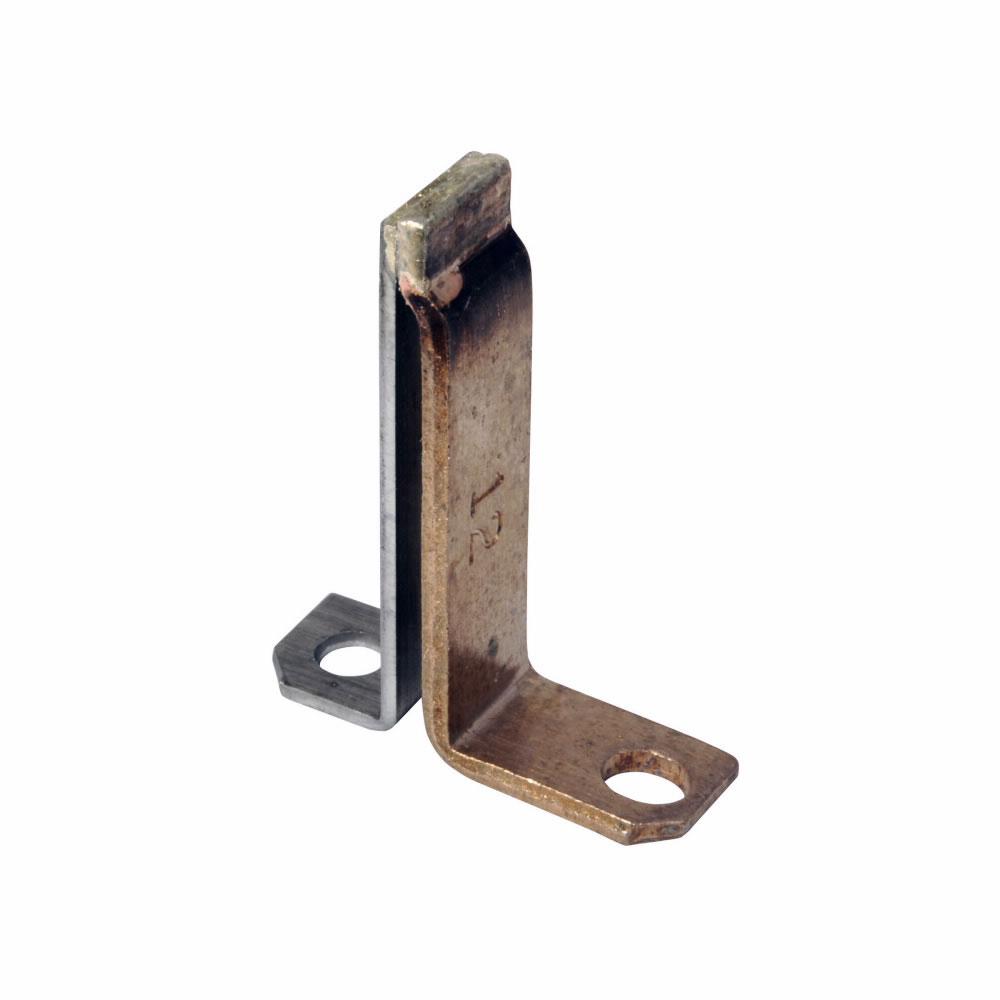

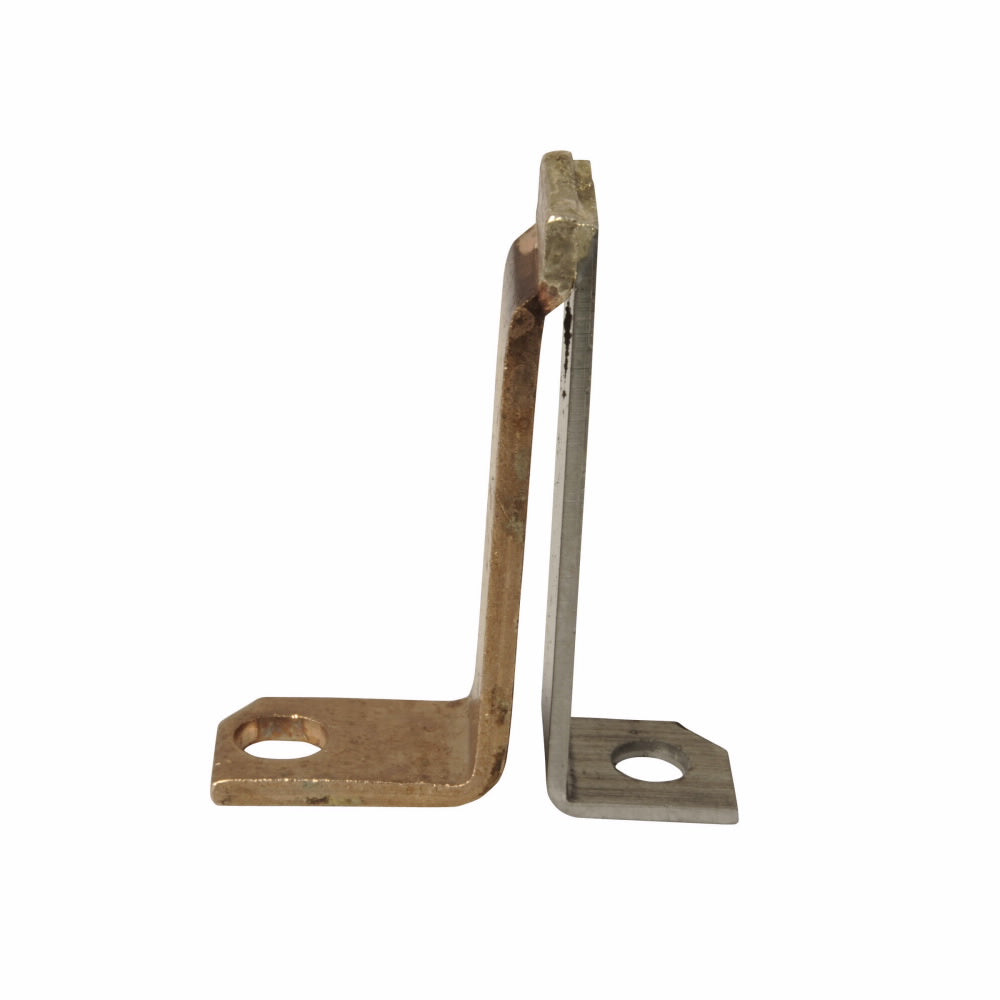

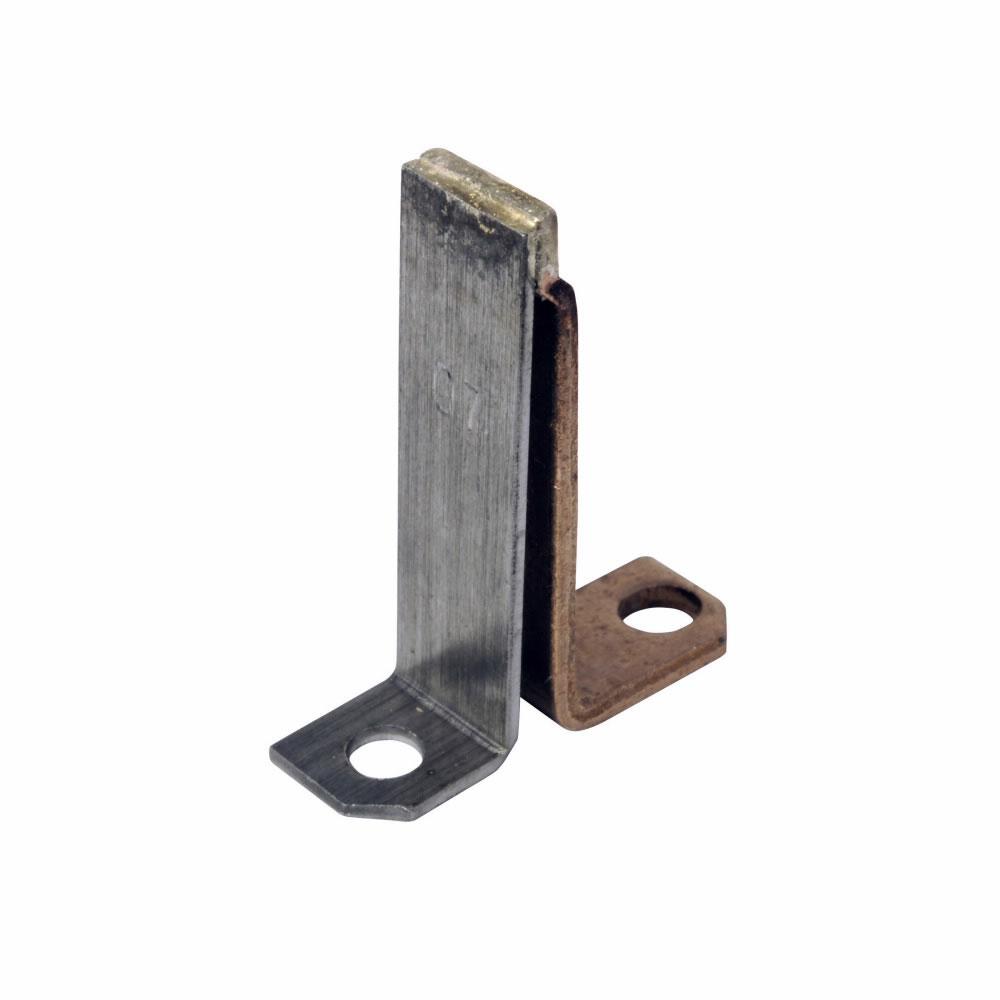

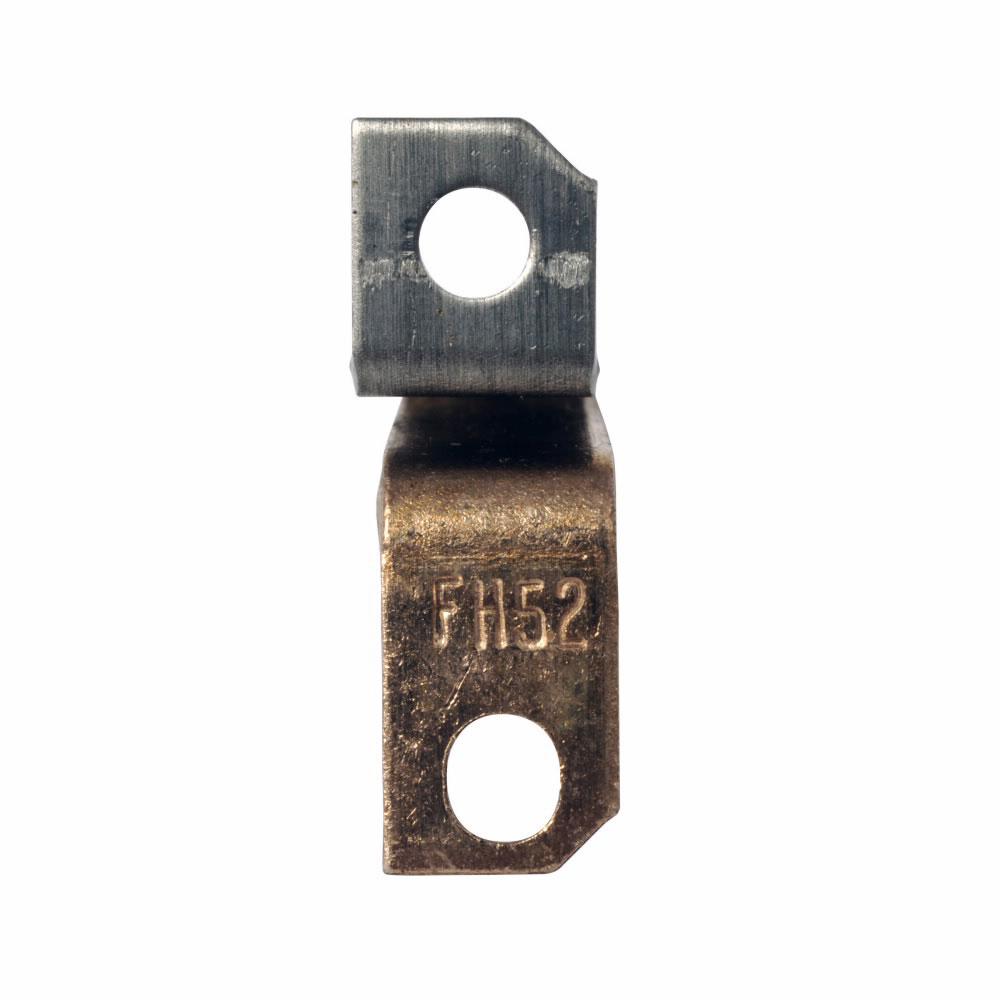

FH52 is a Westinghouse | Cutler Hammer thermal overload heater element designed for reliable motor protection in industrial applications.

This heater element is compatible with NEMA Size 1 and 2 motor starters, including the A200 and B100 series, and is engineered for use in both enclosed and manual starter configurations. It features a class 20 standard trip characteristic, ensuring optimal protection for motors with full load currents between 28.9A and 31.4A. The FH52 is UL and CSA certified, meeting rigorous safety and performance standards for motor control equipment.

Key Specifications
• Part Number: FH52
• Manufacturer: Westinghouse | Cutler Hammer
• Category: Motor Control / Thermal Overload Heater
• Amperage Range: 28.9A minimum, 31.4A maximum full load current
• Voltage: Not specified (typical for heater elements; check starter rating)
• Poles: Not specified (heater element; check starter)
• Mounting Type: For use with NEMA Size 1 & 2 starters (A200/B100 series)
• Interrupt Rating: Not specified (determined by starter/contactor)
• Series/Frame: A200, B100
• Trip Unit: Class 20 standard trip
• Certifications: UL, CSA
• UPC/GTIN: 786678670423

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH52
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : A200 Series
• Type : FH
• Full Load Amp Minimum : 28.9
• Full Load Amp Maximum : 31.4
• Full Load Amps : 24.60 to 26.40

Product Data

• UPC : 786678670423
• GTIN : 00786678670423
• Country of Origin : Dominican Republic
• Dimensions : 0.21 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
• Weight : 0.03 lb
• Certification : UL Listed,CSA Certified
