Product Info
- Manufacturer:Eaton
- Sub-Category:Heater Element
Description
FH39

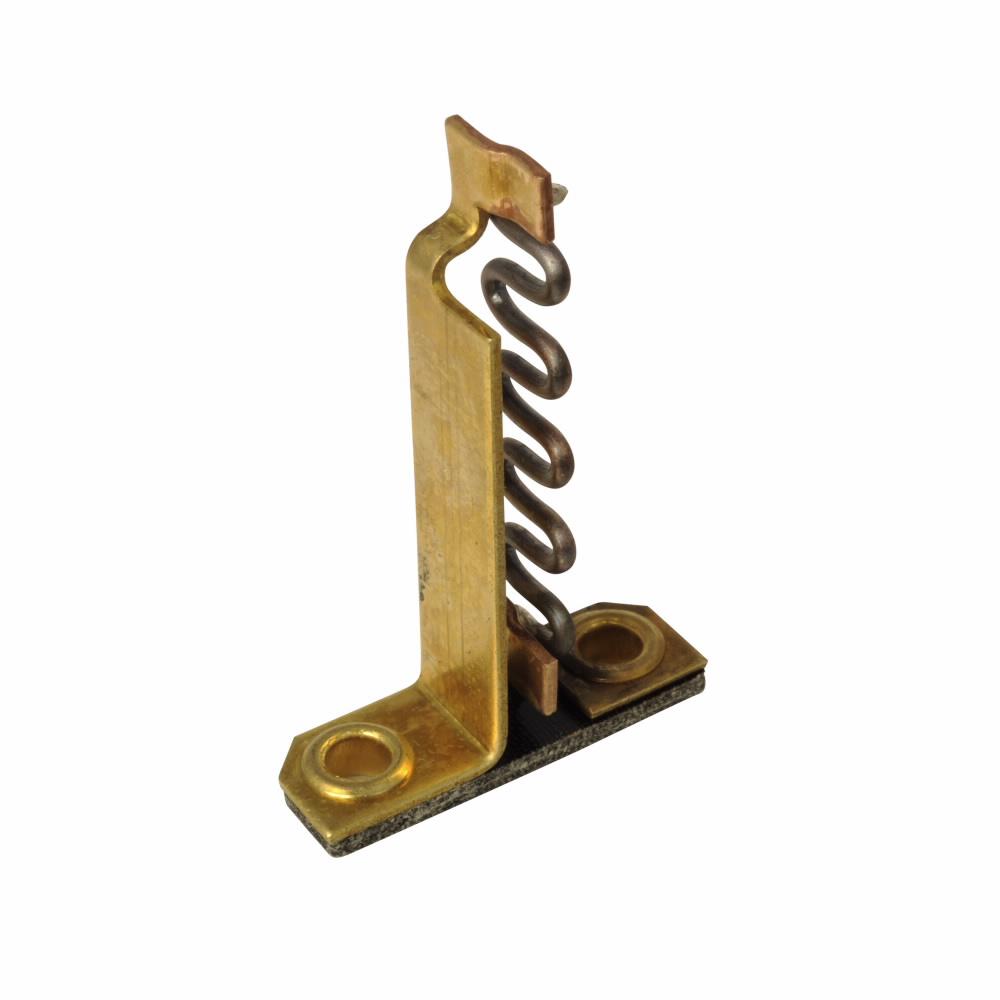

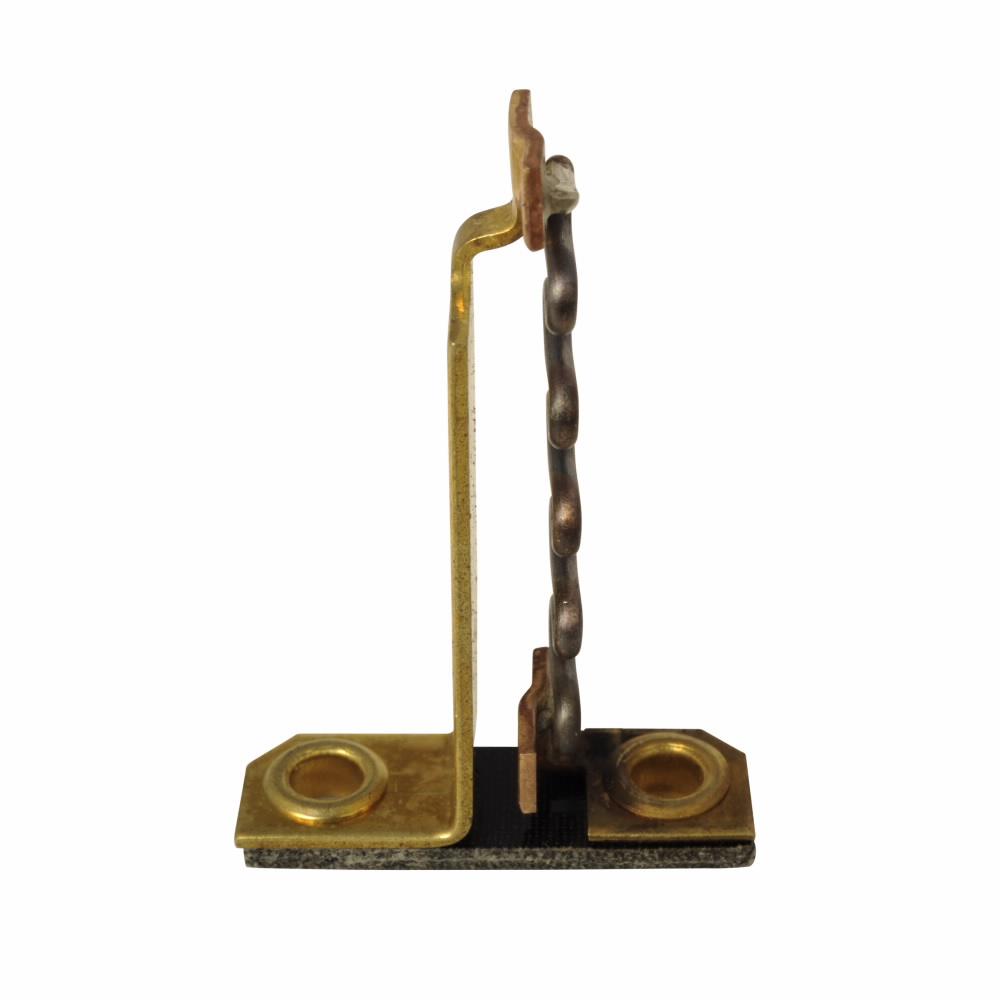

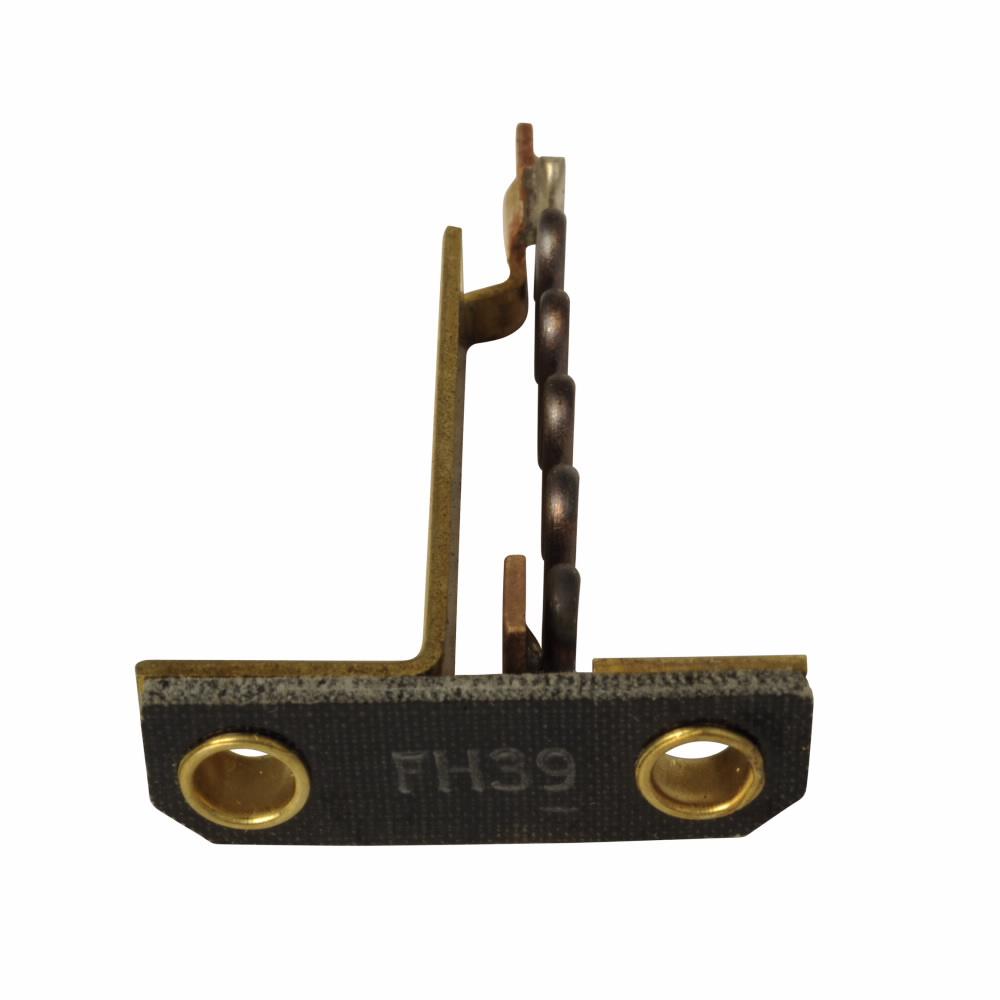

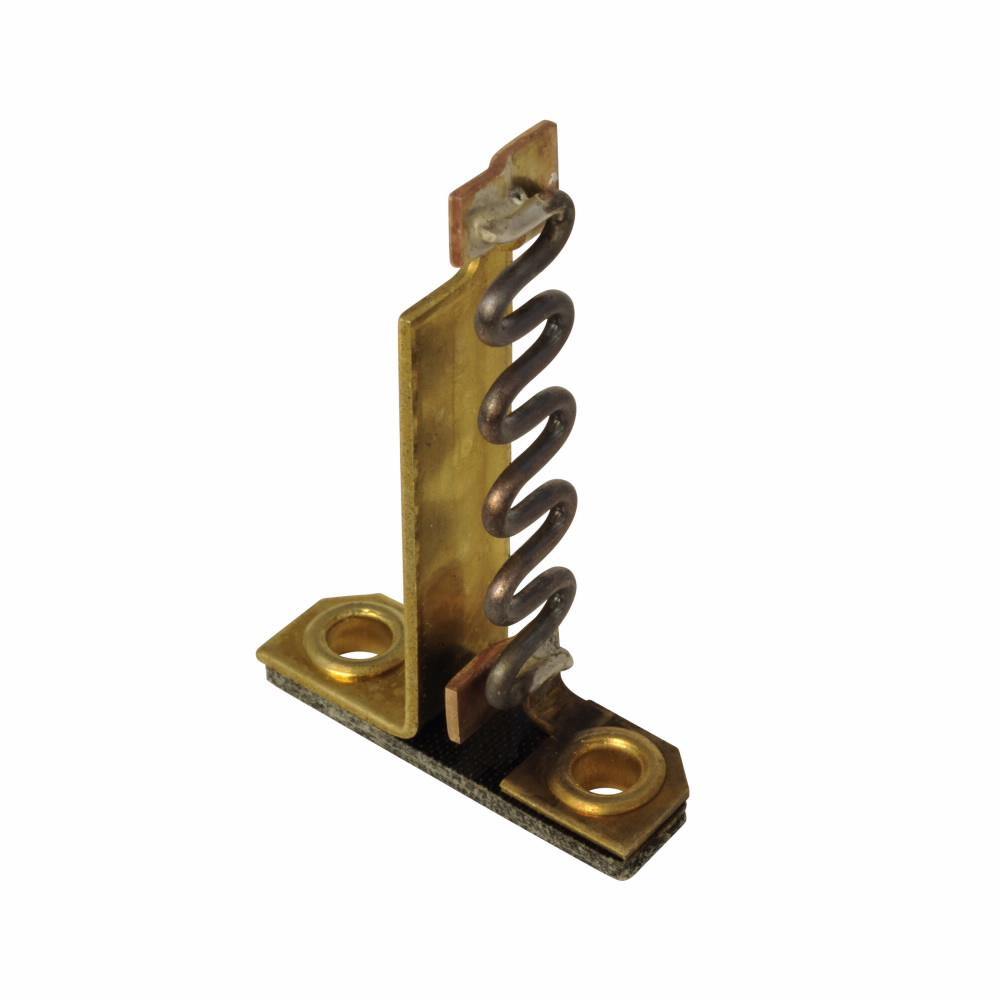

FH39 is an Eaton A200/B100 heater element designed for motor control starters, providing reliable overload protection with a full load current range of 8.8 to 9.7 amps.This heater element is compatible with Eaton starter sizes 0, 1, and 2 and supports thermal and fast trip functions. It is designed for NEMA applications and rated to protect against a 40 degree C rise with a service factor of 1.15. The FH39 is UL Listed and CSA Certified, ensuring compliance with industry safety standards. Single-phase motors require two heaters, while three-phase motors require three heaters for proper protection.
- Key Specifications
- Full Load Current Range: 8.8 to 9.7 Amps
- Type: A200/B100 Heater
- Compatible Starter Sizes: 0, 1, and 2
- Trip Unit: Thermal and Fast Trip
- Design: NEMA
- Certifications: UL Listed, CSA Certified
- Service Factor: 1.15
- Temperature Rise Protection: 40°C
- Single-Phase Requires: 2 Heaters
- Three-Phase Requires: 3 Heaters
- Weight: 0.03 lb
Specifications
- Part Number: FH39
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : A200 Series
- Type : FH
- Full Load Amp Minimum : 8.8
- Full Load Amp Maximum : 9.7
- Full Load Amps : 8.82 to 9.58
Product Data
- UPC : 786678670034
- GTIN : 00786678670034
- Country of Origin : Dominican Republic
- Dimensions : 2.1 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 0.03
- Certification : CSA Certified,UL Listed
