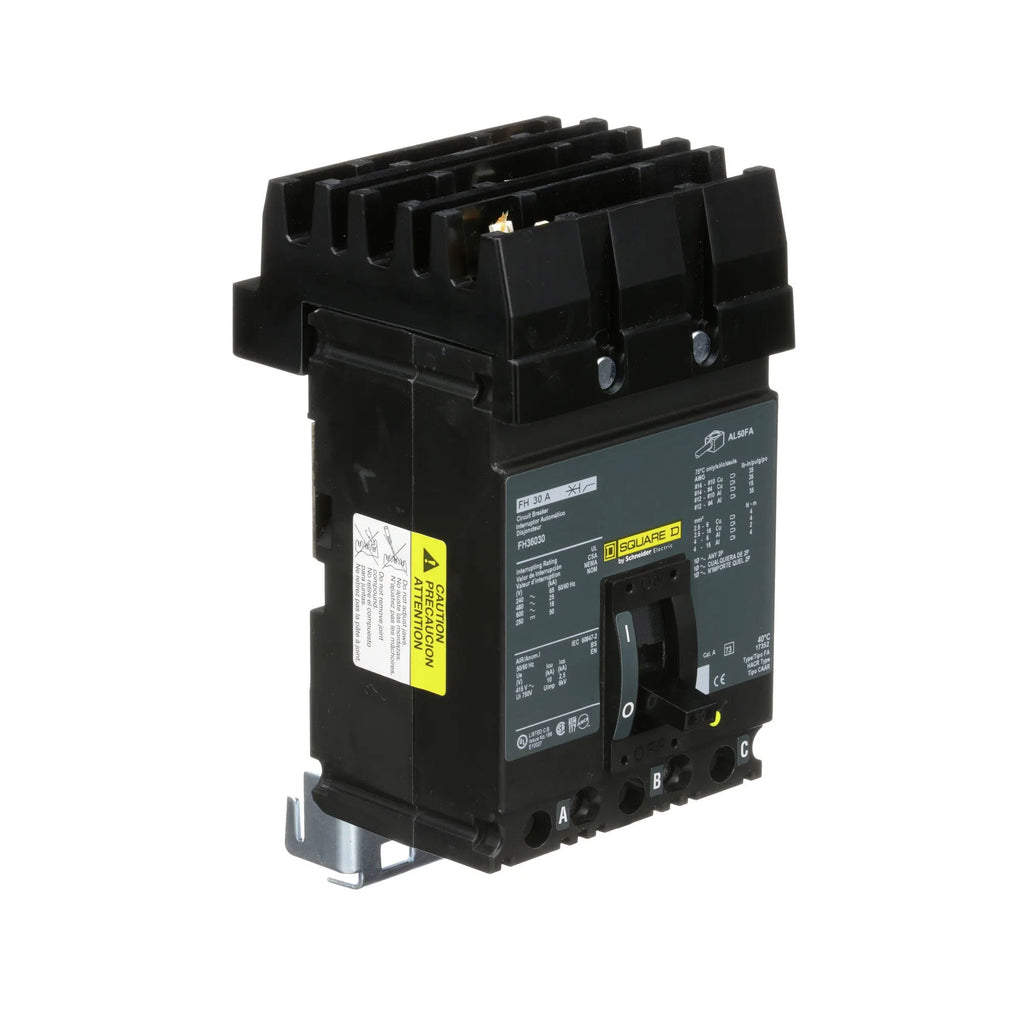

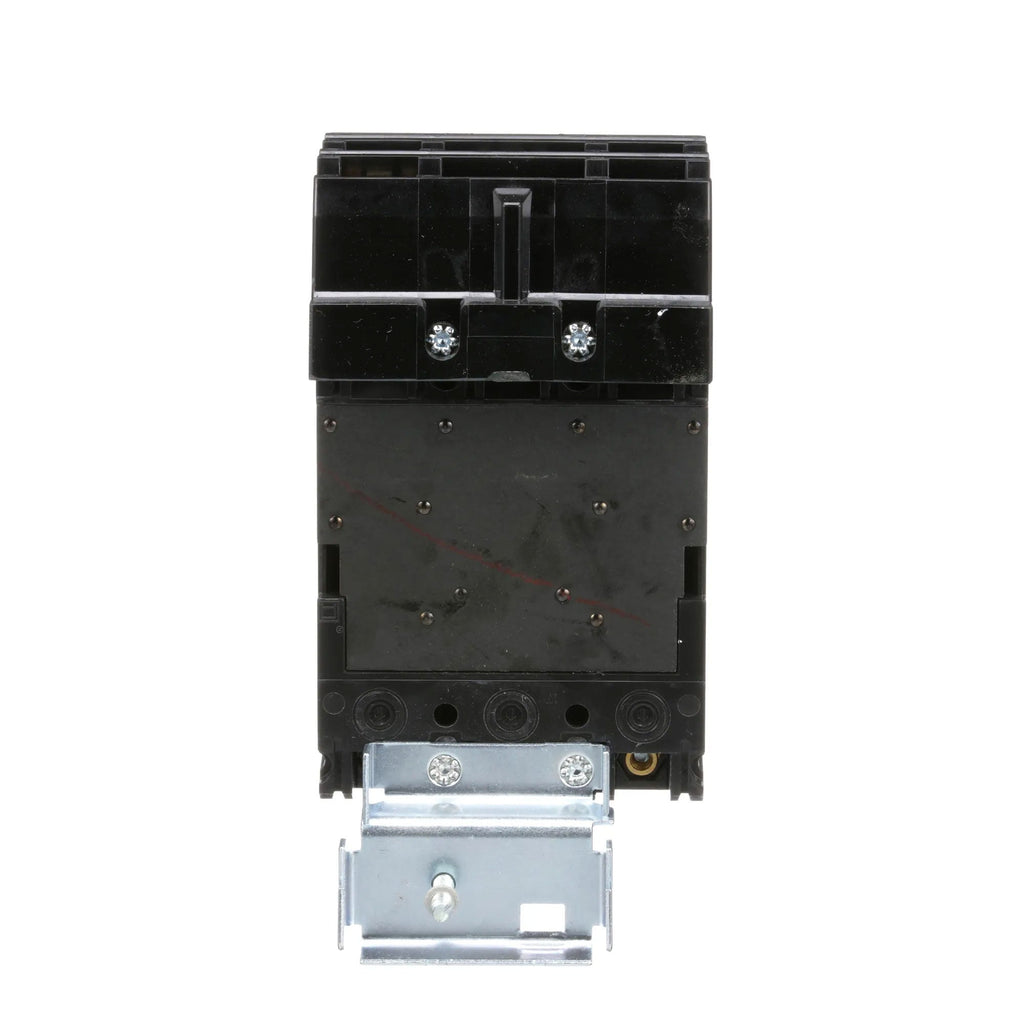

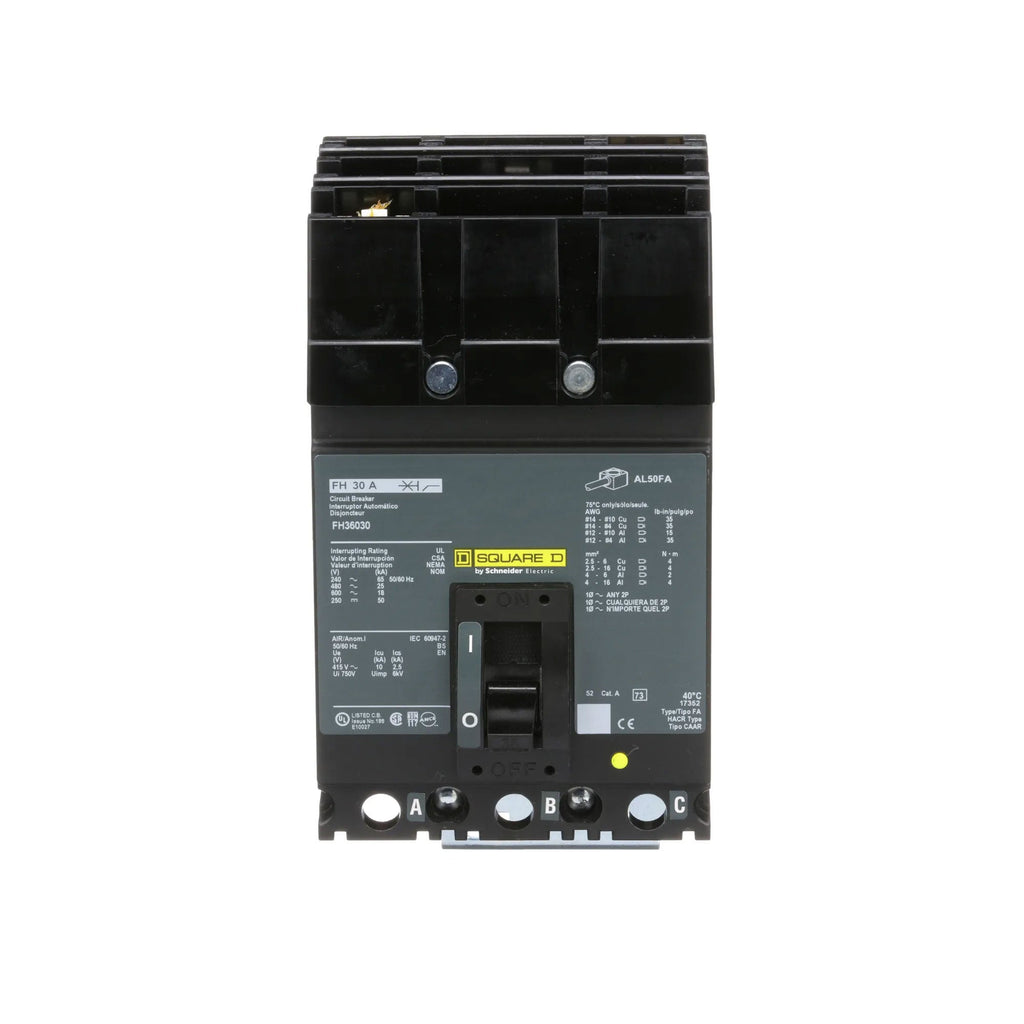

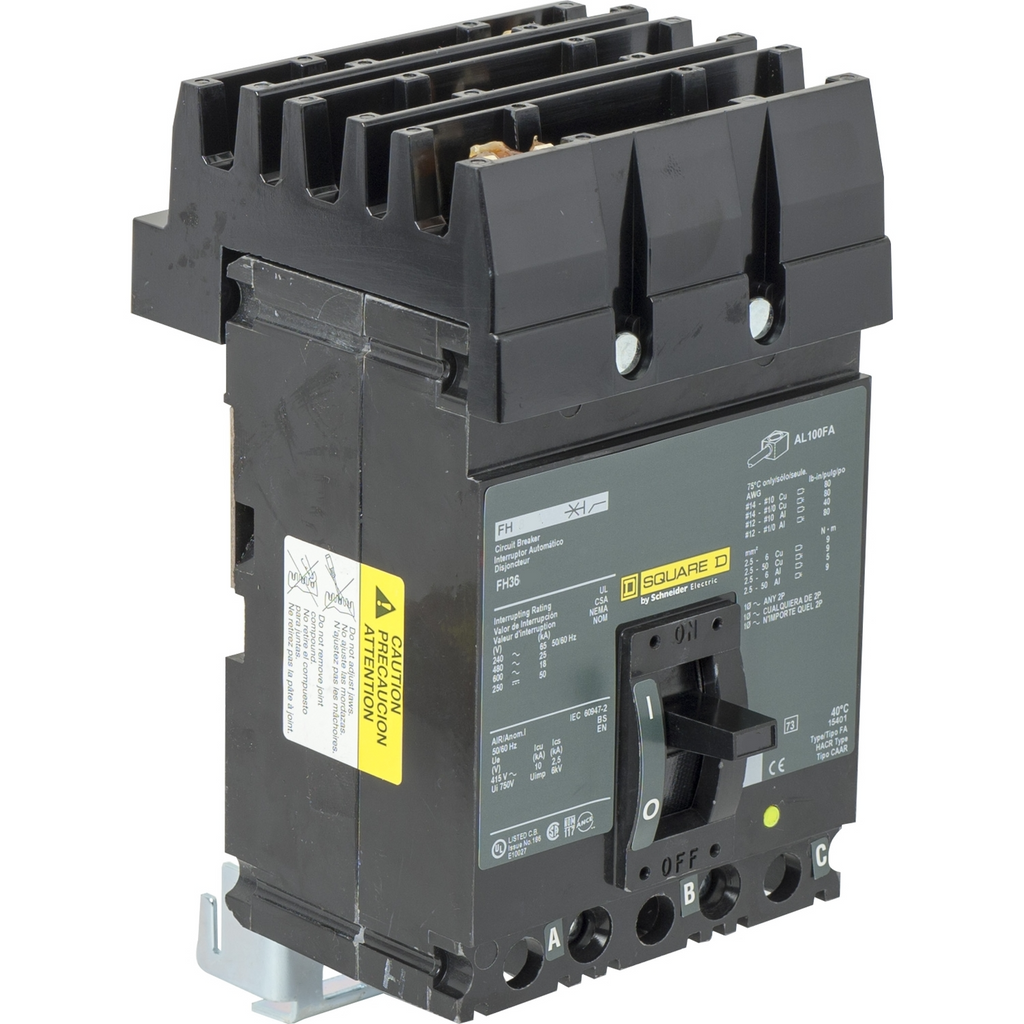

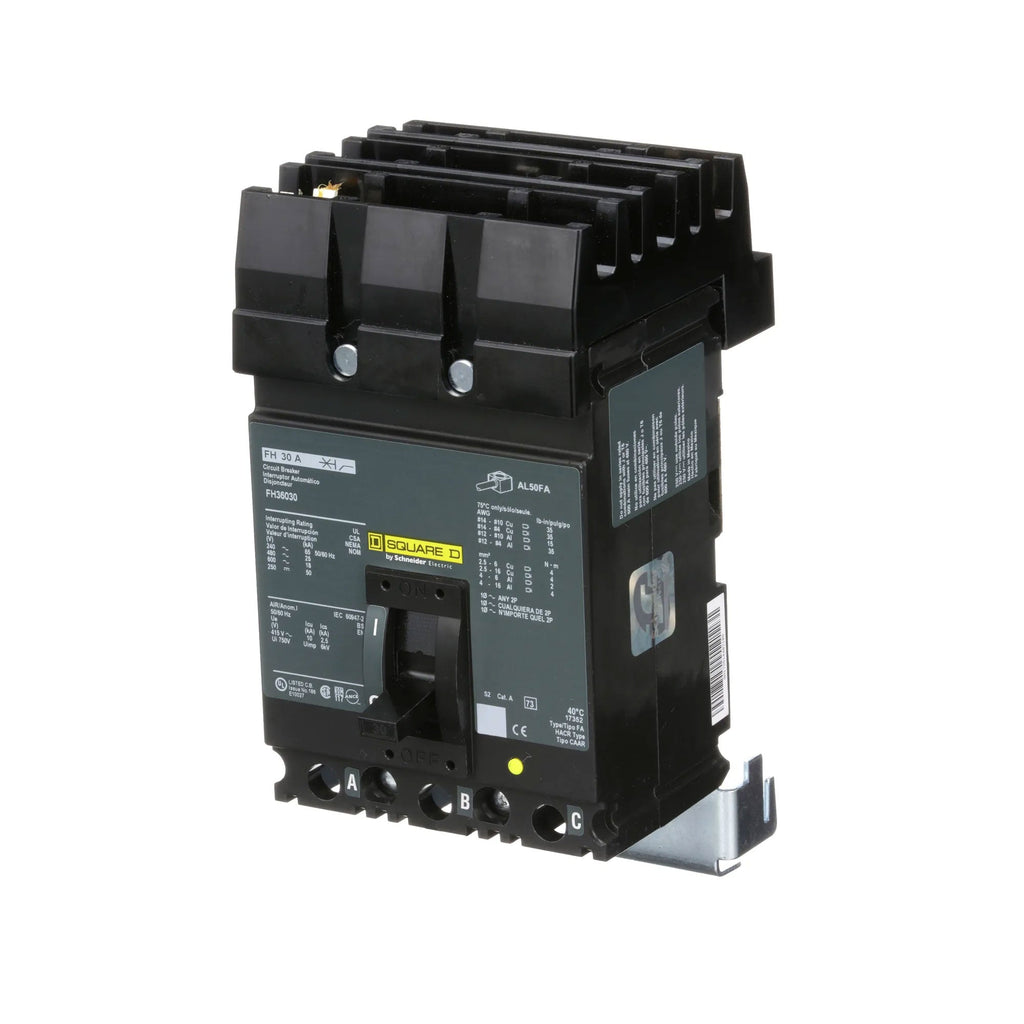

FH36030 - Square D 30A 600VAC 3-Pole Circuit Breaker I-Line Plug-In Thermal Magnetic FH Frame

FH36030

FH36030 is a Square D 3-pole molded case circuit breaker rated for 30 amps and 600VAC, designed for I-Line plug-in mounting.This FH frame circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has a 25kA interrupting rating at 480V and is UL, CSA, and CE certified. The breaker supports load side lug terminal connections and is HACR rated for HVAC applications.

• Amperage: 30A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 25kAIC at 480V
• Frame Type: FH
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Approvals: UL Listed, CSA Certified, CE
• Terminal Connection: Load Side Lug
• HACR Rated
• Dimensions: 4.13" L x 4.5" W x 6.4" H
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901241348
• GTIN : 00785901241348
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
