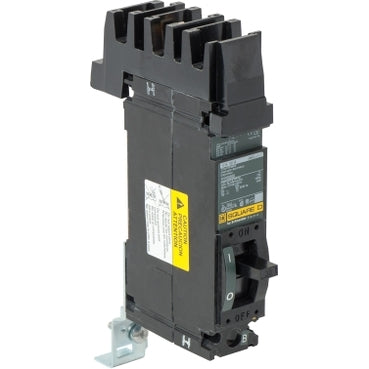

FH16030B - Square D 30A 277V 1 Pole I-Line Plug-In Molded Case Circuit Breaker

FH16030B

FH16030B is a 1 pole, 30 amp, 277 volt I-Line style plug-in molded case circuit breaker from Square D designed for reliable power distribution protection.FH16030B features a thermal magnetic trip unit with a frame type F, suitable for use in I-Line panelboards and switchboards. It has a high interrupting rating of 25kA at 240VAC and is UL and CSA approved for industrial and commercial applications. The breaker supports wire sizes from 14 to 4 AWG copper and 12 to 4 AWG aluminum and is designed for plug-on mounting.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 277 VAC
• Poles: 1
• Interrupting Rating: 25kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• Frame Type: F
• Mounting Type: Plug-On
• Wire Size: 14-4 AWG Copper, 12-4 AWG Aluminum
• Certifications: UL, CSA
• Dimensions: 1.5" W x 4.13" D x 6" H
• Phase: B Phase (Yellow)
• Series: I-Line

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16030B
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590156312
• GTIN : 00785901563129
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
