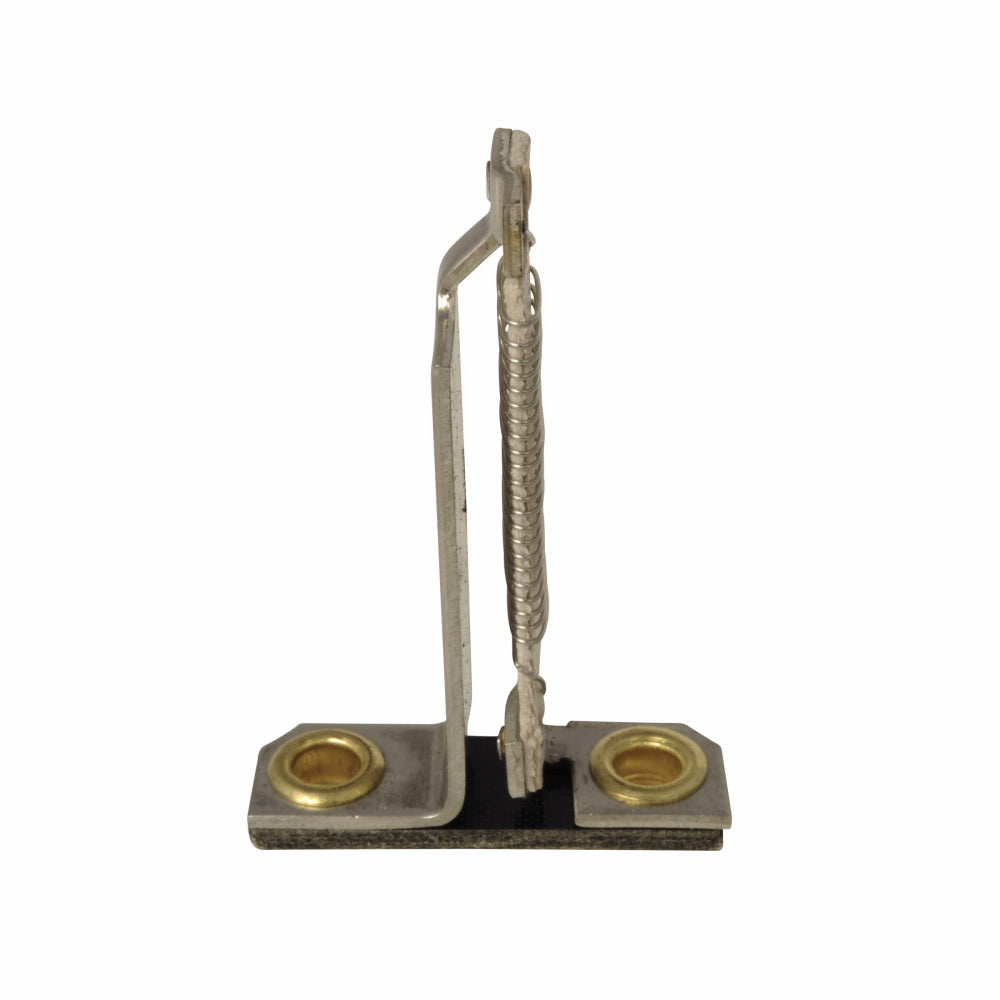

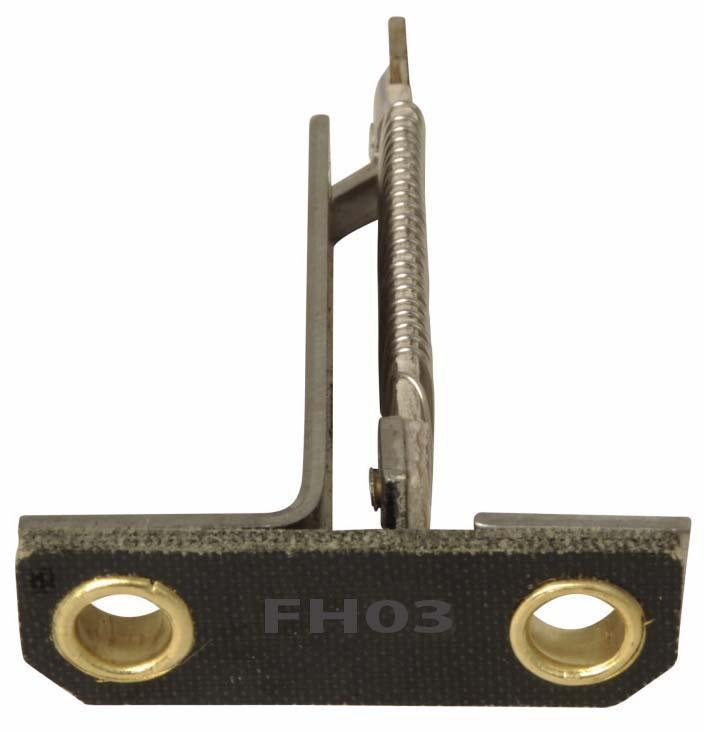

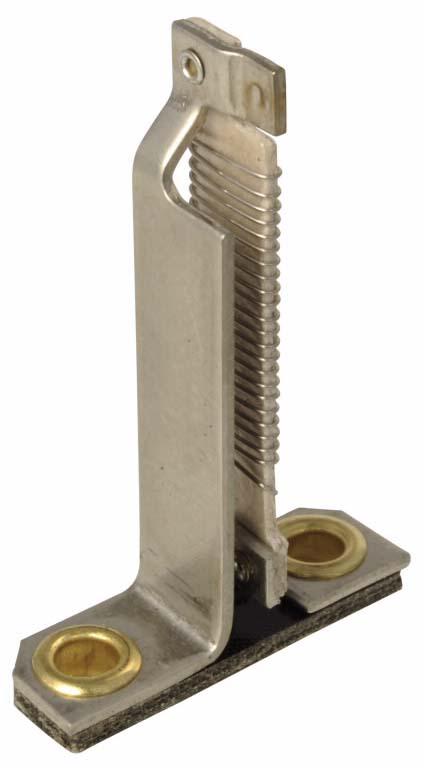

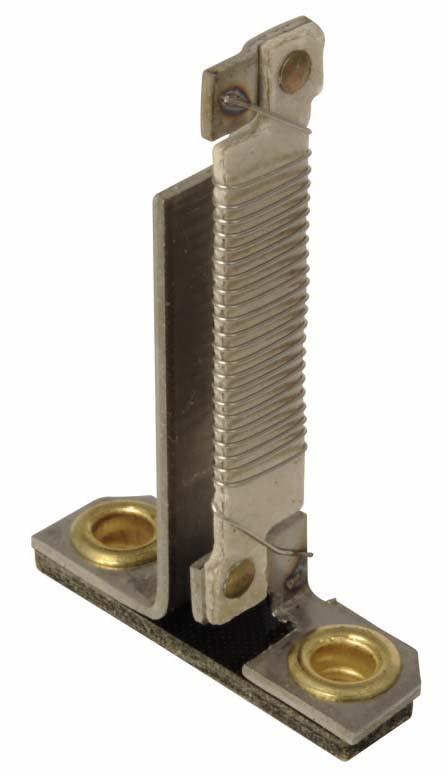

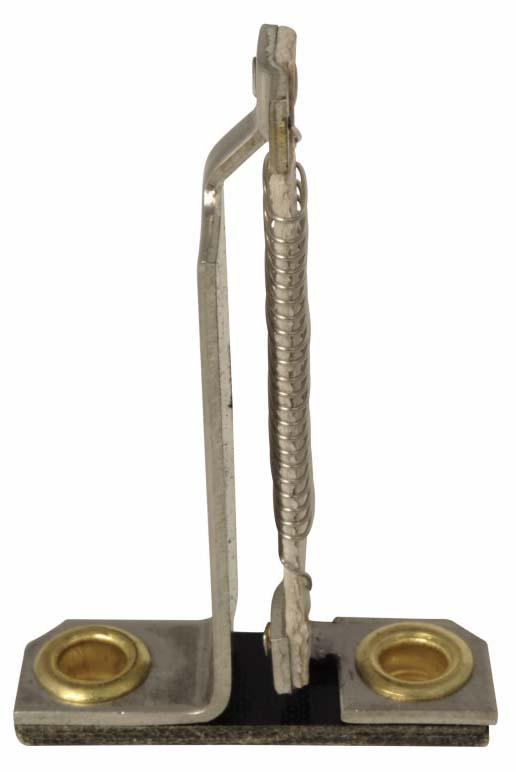

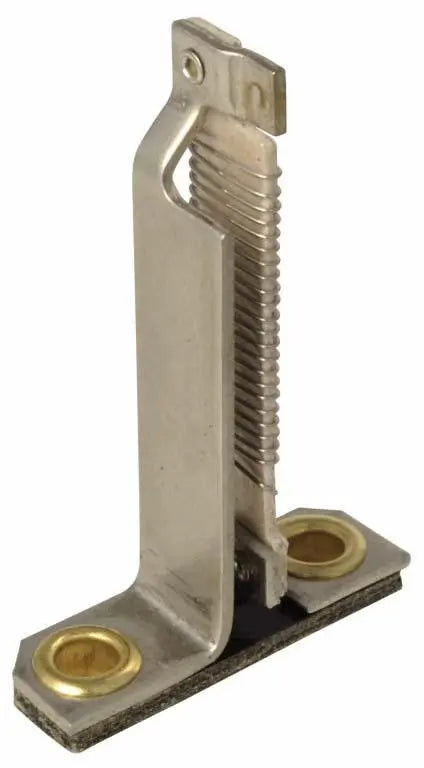

FH03 - Eaton Overload Heater Element 0.28-0.30A Motor Control for A200/B100 Starters

FH03

FH03 is an Eaton overload heater element designed for use with A200 and B100 series manual motor starters, providing precise overload protection for motor control applications. This heater element is compatible with both single-phase and three-phase motor starters, ensuring reliable thermal protection for a wide range of industrial and commercial motors. The FH03 heater element features a full load current range of 0.28 to 0.30 amps, making it suitable for low-current motor applications. It is designed for use with starter sizes 0, 1, and 2, and is compatible with both Type A and Type B thermal overload relays. The element is constructed for straight-through wiring and is field-mountable, allowing for easy installation and replacement. It is rated for use in both ambient and non-compensated environments, with a service factor of 1.15 and a 40°C rise rating.

• Part Number: FH03
• Manufacturer: Eaton
• Full Load Current Range: 0.28–0.30A
• Compatible Starters: A200, B100
• Starter Sizes: 0, 1, 2
• Thermal Relay Type: Type A and B
• Mounting Type: Field Mountable
• Wiring: Straight-Through
• Service Factor: 1.15
• Temperature Rise: 40°C
• UL Listed
• CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH03
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : A200 Series
• Type : FH
• Full Load Amp Minimum : 0.28
• Full Load Amp Maximum : 0.3
• Full Load Amps : 0.28 to 0.29

Product Data

• UPC : 786678628967
• GTIN : 00786678628967
• Country of Origin : Dominican Republic
• Dimensions : 2.1 in x 0.8 in x 1.3 in (Length/Depth x Height x Width)
• Weight : 0.03 lb
• Certification : CSA Certified,UL Listed
