- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
SBS8/10

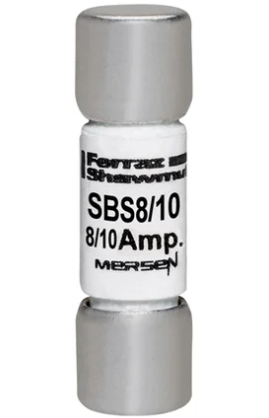

SBS8/10 is a fast-acting midget fuse from Mersen Ferraz Shawmut designed for control circuits and electronic applications.This fuse features a cylindrical, non-rejection body style with a 600 VAC voltage rating and an amperage rating of 8/10 amps. It has a high interrupting rating of 100 kA RMS, meeting UL 248-14 and CSA C22.2 No. 248.14 standards. The fuse is constructed with a fiberglass body and tin-plated copper contacts, mounted via clip with ferrule terminal connections. It is RoHS compliant and suitable for lighting ballasts, meter circuits, and other electronic circuits.
- Brand: Mersen Ferraz Shawmut
- Part Number: SBS8/10
- Type: Fast Acting
- Voltage Rating: 600 VAC
- Amperage Rating: 8/10 A
- Interrupting Rating: 100 kA RMS
- Fuse Class: Midget
- Body Style: Cylindrical, Non Rejection
- Mounting Type: Clip
- Terminal Connection: Ferrule
- Contact Material: Tin Plated Copper
- Construction: Fiberglass
- Certifications: UL 248-14, CSA C22.2 No. 248.14, RoHS Compliant
Specifications
- Part Number: SBS8/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 8
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
Product Data
- UPC : 78200190772
- GTIN : 00782001907723
- Weight : 0.01
