Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
OTM1

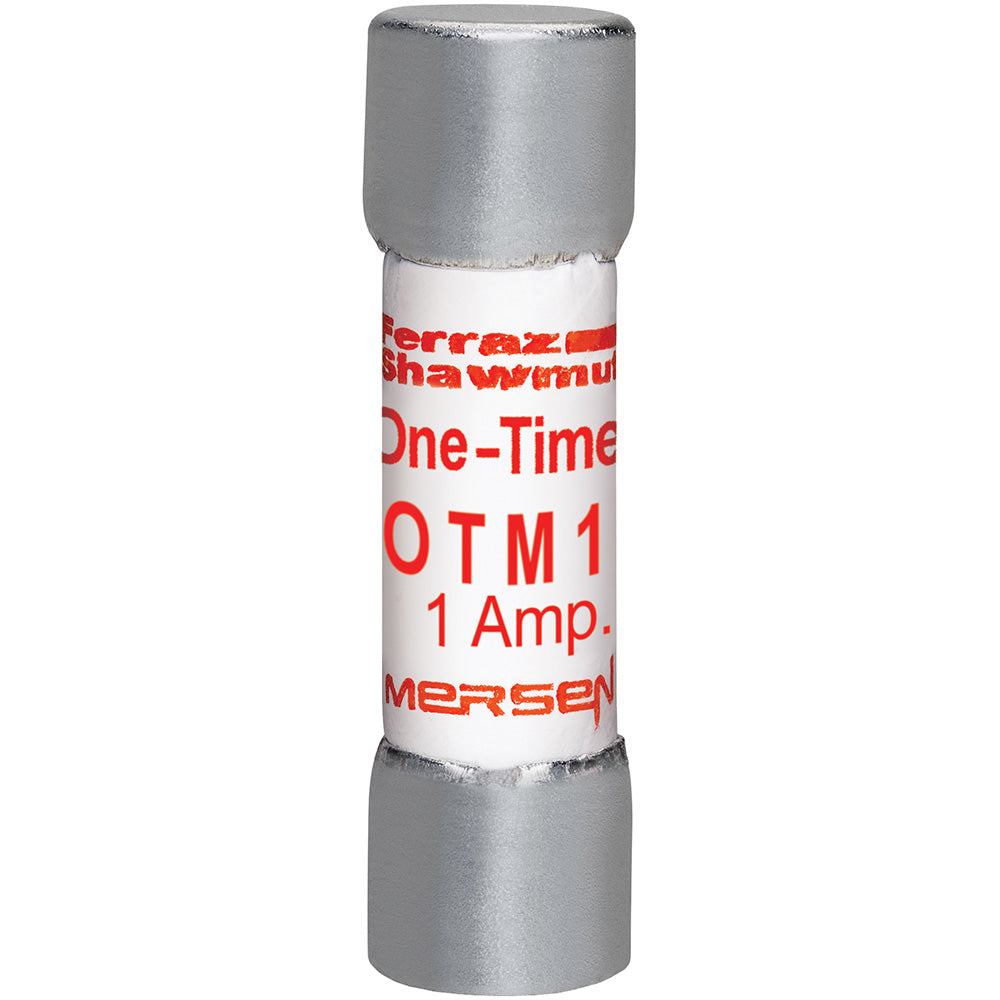

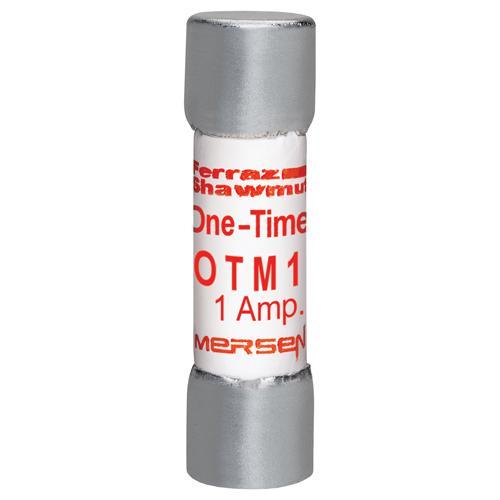

OTM1 is a 1 Amp, 250 Volt AC midget fast-acting fuse from Mersen Ferraz Shawmut designed for general purpose protection.This one-time use fuse features a fast-acting characteristic suitable for lighting, heating, and control circuits where time delay is not required. It has a compact size of 13/32" x 1 1/2", a high interrupting rating of 10,000 AIC at 250VAC, and is UL listed to standard 248-14 and CSA certified. The fuse uses a ferrule terminal and mounts via clip, making it compatible with UltraSafe™ fuse holders.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 250 VAC
- Fuse Type: Midget, Fast-Acting
- Interrupt Rating: 10,000 AIC @ 250 VAC
- Mounting Type: Clip
- Terminal Type: Ferrule, Tin-Plated Copper
- Dimensions: 0.41" Diameter x 1.5" Length
- Series: OTM One-Time Midget Fuse
- Certifications: UL Listed (File E33925), CSA Certified (C22.2 No. 248.14)
- Body Material: Paper Insulated
- Application: General purpose lighting, heating, control circuits
- Part Number: OTM1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 1
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Ferrule
- Barrels : 1
- UPC : 78200170501
- GTIN : 00782001705015
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.01
