FDPWT3623R - Cutler Hammer 100A 3-Pole 600V Fusible Panelboard Switch Horizontal Twin

SKU: FDPWT3623R-New
Condition: New
Price:
$2,126.45
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

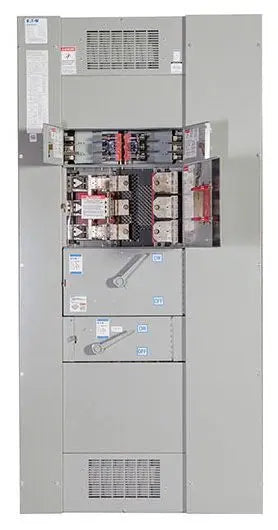

Cutler Hammer FDPWT3623R Panel Mount Switch (Fusible) - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cutler Hammer FDPWT3623R Panel Mount Switch (Fusible) - Essential Electric Supply

Description

FDPWT3623R


FDPWT3623R is a Cutler Hammer fusible panelboard switch designed for industrial and commercial power distribution applications. This unit features a horizontal twin mounting configuration and is rated for 600V, 100A, three-pole operation. The FDPWT3623R is part of the Type FDPW series and is built for installation in panelboards requiring a robust, fusible disconnect solution. It supports Class R fuses and is engineered for high interrupting capacity, making it suitable for demanding environments. The switch is constructed with a durable sheet steel enclosure and provides reliable circuit protection for branch or main applications.
  • Part Number: FDPWT3623R
  • Manufacturer: Cutler Hammer
  • Series/Frame: Type FDPW
  • Amperage: 100A
  • Voltage: 600V
  • Poles: 3
  • Mounting Type: Horizontal Twin
  • Interrupt Rating: 200,000A RMS symmetrical at 600V AC
  • Fuse Type: Class R
  • Enclosure Material: Sheet Steel
  • Application: Panelboard Fusible Disconnect
  • HP Rating: 30 hp at 240V AC, 60 hp at 480V AC, 75 hp at 600V AC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FDPWT3623R
  • Manufacturer : Cutler Hammer
  • Brand : Cutler Hammer
  • Category : Switch
  • Item Subcategory : Panel Mount
  • Family : Type FDP
  • Type : FDPWT
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@480V
  • Fuse Class : R,H,K
  • Configuration : Dual/Twin
  • Switch Style : Fusible
  • Nema Rating : 1
  • Compatible Frames : SGDA

Product Data

  • UPC : 786679153512
  • GTIN : 00786679153512
  • Country of Origin : Mexico
  • Dimensions : 26.3 in x 10 in x 8 in (Length/Depth x Height x Width)
  • Weight : 19.65

Accesories

Part Manufacture Sub Category
100A600VFC
