FDPWT3233R - Cutler Hammer 100 Amp 3 Pole 240V Fusible Panelboard Switch, Type FDPW, 200 kAIC, Horizontal Mount, Class R Fuse Provision, FDP Series

FDPWT3233R

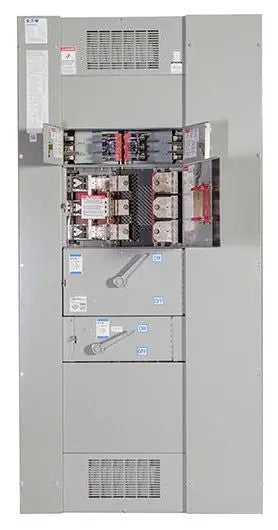

FDPWT3233R is a Cutler Hammer fusible panelboard switch designed for reliable power distribution in commercial and industrial applications.

This 3-pole, 100 Amp switch is rated for 240V AC and 250V DC, with a 200 kAIC interrupting rating at 240V AC and 10 kAIC at 250V DC. It features a horizontal, twin mounting type, is compatible with Class R fuses, and is part of the FDP series panelboards. The switch accepts wire sizes from #14 AWG to 1/0 AWG and is suitable for branch circuit applications.

Key Specifications

• Amperage: 100A
• Voltage: 240V AC / 250V DC
• Poles: 3
• Mounting Type: Horizontal, Twin
• Interrupt Rating: 200 kAIC @ 240V AC, 10 kAIC @ 250V DC
• Series/Frame: FDP Series
• Fuse Class Provision: Class R
• Wire Size: #14 AWG to 1/0 AWG
• Max Horsepower: 30 hp @ 240V AC, 20 hp @ 250V DC
• Connection: Branch
• Certifications: Not specified in available data
• Trip Unit: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDPWT3233R
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPWT
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R,H,K
• Configuration : Dual/Twin
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : THLC

Product Data

• UPC : 786679651568
• GTIN : 00786679651568
• Country of Origin : Mexico
• Dimensions : 22.5 in x 10 in x 8 in (Length/Depth x Height x Width)
• Weight : 17.2
