FDPWT3223R - Cutler Hammer Fusible Panelboard Switch 3 Pole 60/100A 240V AC 250V DC 200kAIC

FDPWT3223R

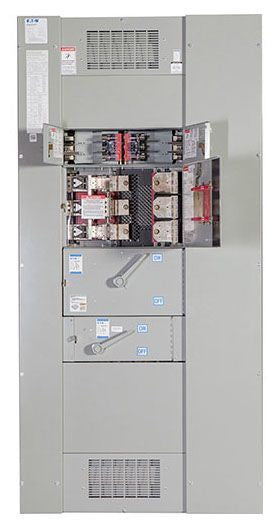

FDPWT3223R is a Cutler Hammer fusible panelboard switch designed for reliable power distribution control.This 3-pole switch supports dual amperage ratings of 60A and 100A for its two units, operating at 240V AC and 250V DC. It features a 200kA interrupting rating at 240V AC and 10kA at 250V DC, suitable for heavy-duty applications. The switch is designed for panel mounting and accepts Class R, H, and K fuses. It supports wire sizes from #14 AWG to 1/0 AWG and complies with Eaton's FDP series standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: FDPWT3223R
• Type: Fusible Panelboard Switch
• Poles: 3
• Amperage: Unit 1 - 60A, Unit 2 - 100A
• Voltage: 240V AC / 250V DC
• Interrupt Rating: 200kA at 240V AC, 10kA at 250V DC
• Fuse Class: R, H, K
• Mounting Type: Panel Mount
• Wire Size Range: #14 AWG to 1/0 AWG
• Switch Style: Twin Horizontal
• Series: FDPW
• Country of Origin: US
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FDPWT3223R
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPWT
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R,H,K
• Configuration : Dual/Twin
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : TJJ



Product Data

• UPC : 786679914304
• GTIN : 00782113206875
• Country of Origin : Mexico
• Dimensions : 22.3 in x 10.2 in x 8 in (Length/Depth x Height x Width)
• Weight : 17.15
