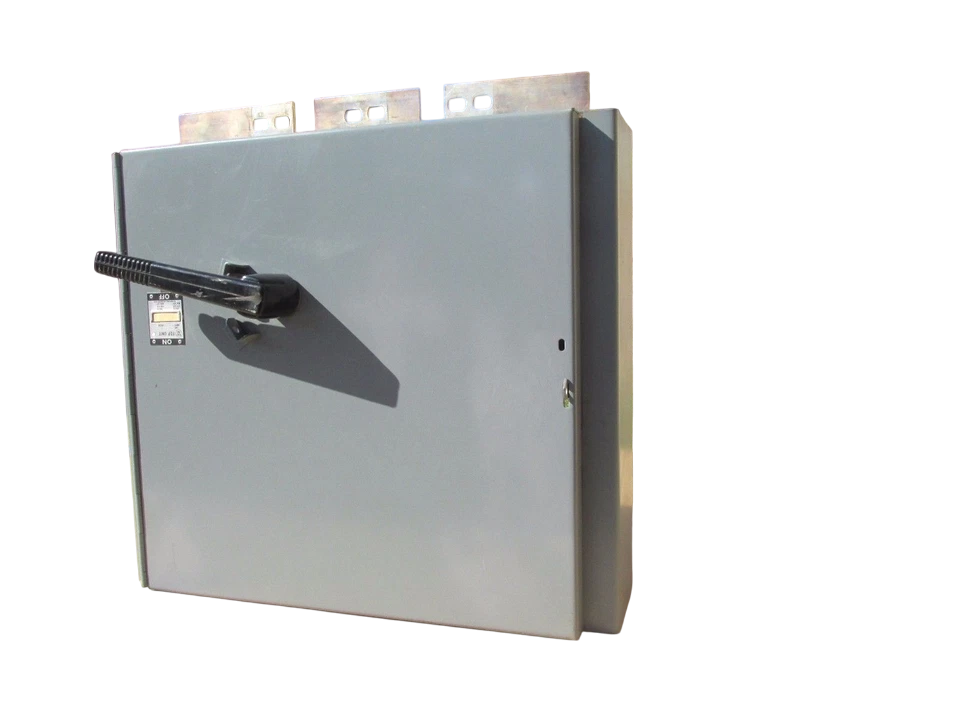

FDPS366R - Eaton 600A 600V Three-Pole Fusible Panelboard Switch 200 kAIC Class R Fuses

FDPS366R

FDPS366R is a Eaton 600A, 600V, three-pole fusible panelboard switch designed for branch circuit protection.This fusible panelboard switch features a 200 kA interrupting rating and is compatible with Class R fuses. It supports wire sizes from (2) #4 AWG to 600 kcmil or (4) 3/0 AWG to 250 kcmil. The switch is horizontally mounted and rated for horsepower loads of 200 hp at 240 Vac, 400 hp at 480 Vac, and 500 hp at 600 Vac. It is UL Listed for safety and reliability.

Key Specifications
• Amperage Rating: 600A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Interrupt Rating: 200 kAIC
• Fuse Class Provision: Class R fuses
• Wire Size Capacity: (2) #4 AWG-600 kcmil or (4) 3/0 AWG-250 kcmil
• Mounting Type: Horizontal
• Horsepower Ratings: 200 hp at 240 Vac, 400 hp at 480 Vac, 500 hp at 600 Vac
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FDPS366R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPS
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : ED



Product Data

• Weight : 85
