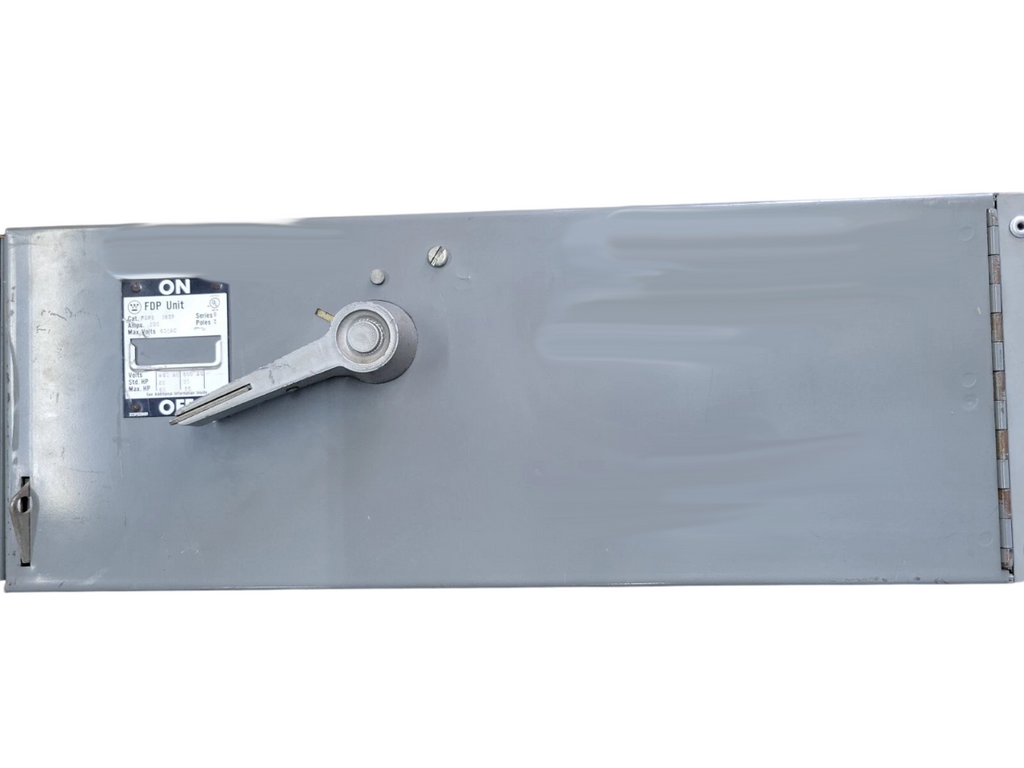

FDPS363 - Eaton 100A 3-Pole Fusible Panelboard Switch 600V NEMA 1

FDPS363

FDPS363 is a 100A, 3-pole fusible panelboard switch designed for commercial and industrial applications requiring reliable circuit protection and switching at 600V AC. This Eaton switch is engineered for panelboard mounting and provides secure, load-break operation for branch and feeder circuits. The FDPS363 features a robust fusible design compatible with Class R, H, and K fuses, supporting a maximum interrupting capacity of 200,000A rms symmetrical at 600V AC. It is rated for 30 hp at 240V AC, 60 hp at 480V AC, and 75 hp at 600V AC, making it suitable for a wide range of motor and load applications. The switch is NEMA 1 rated for indoor use and is designed for horizontal mounting in panelboards.

• 100A Amperage Rating
• 3 Pole / 3 Phase
• 600V AC Maximum Voltage
• Fusible Panelboard Switch
• Compatible with Class R, H, K Fuses
• 200,000A Interrupting Capacity
• 30 hp at 240V AC
• 60 hp at 480V AC
• 75 hp at 600V AC
• NEMA 1 Enclosure
• Horizontal Mounting
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDPS363
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPS
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : SEPA

Product Data

• Weight : 35
