Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
FDE316036

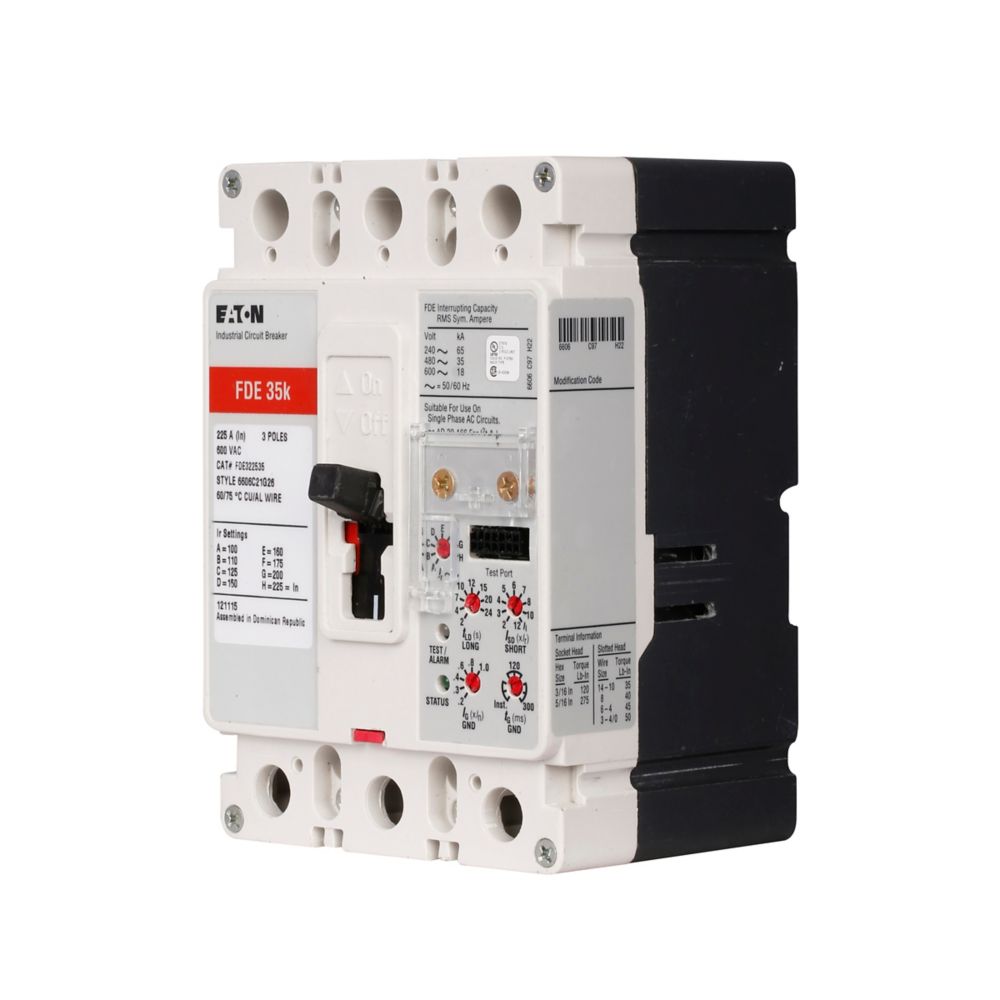

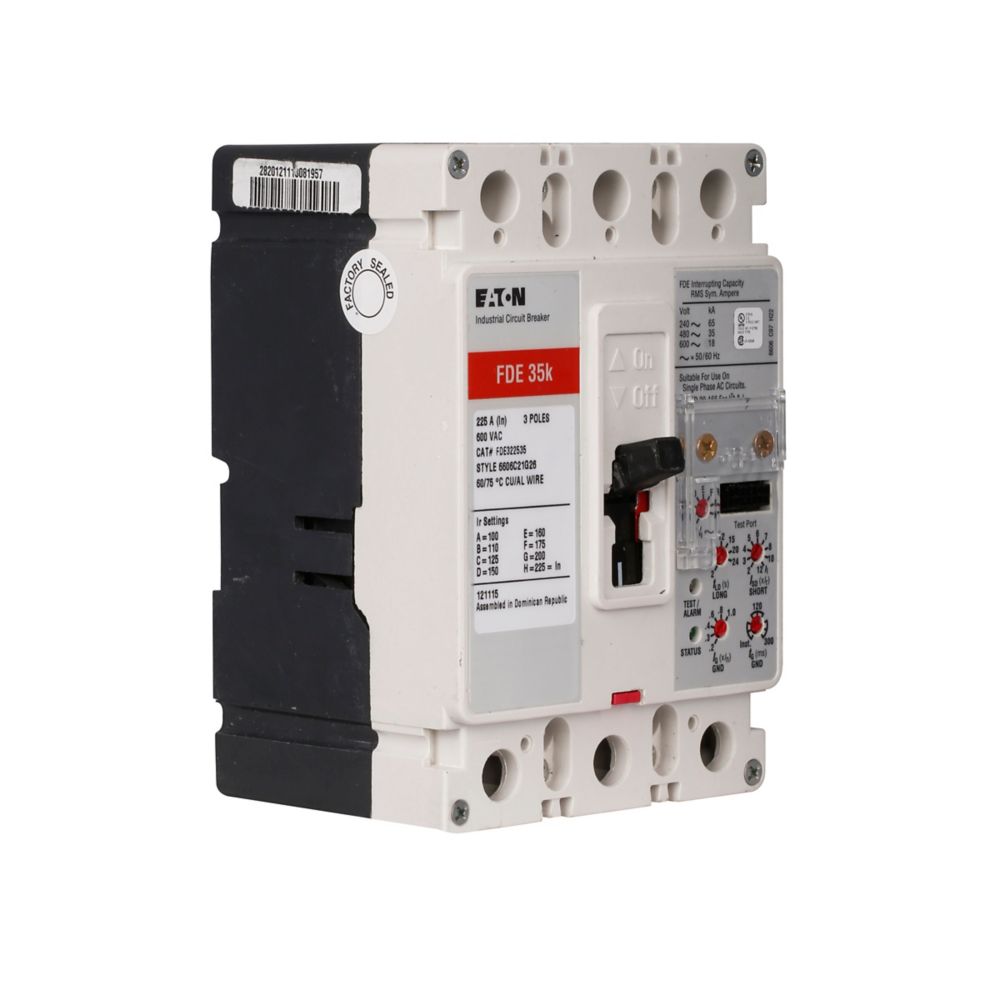

FDE316036 is a Cutler Hammer molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This 3-pole breaker features a 160 ampere rating and supports voltages up to 600 VAC and 250 VDC. It belongs to the Series C frame and includes an electronic LSIG (Long-time, Short-time, Instantaneous, Ground-fault) trip unit for precise protection. The breaker has an interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, ensuring high fault current interruption capability.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: FDE316036
- Amperage: 160 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 65 kAIC @ 240 VAC, 35 kAIC @ 480 VAC
- Series/Frame: Series C
- Trip Unit: Electronic LSIG
- Mounting Type: Molded Case
- Certifications: UL Listed, CSA Certified (typical for this series)
- Part Number: FDE316036
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FDE
- Voltage : 480
- Amperage : 160
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : F Frame
- Protection : Solid State
- UPC : 786685112343
- GTIN : 00786685112343
- Country of Origin : Dominican Republic
- Dimensions : 7.7 in x 4.8 in x 4.9 in (Length/Depth x Height x Width)
- Weight : 4.3
- Certification : UL Listed
