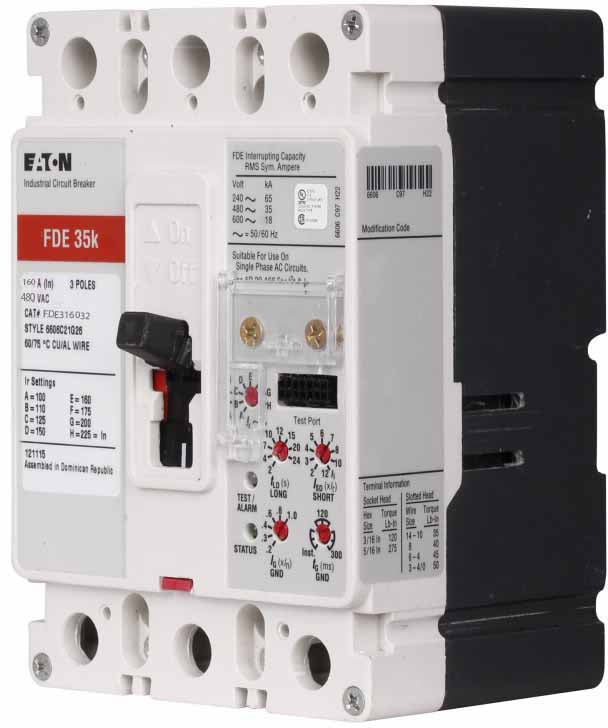

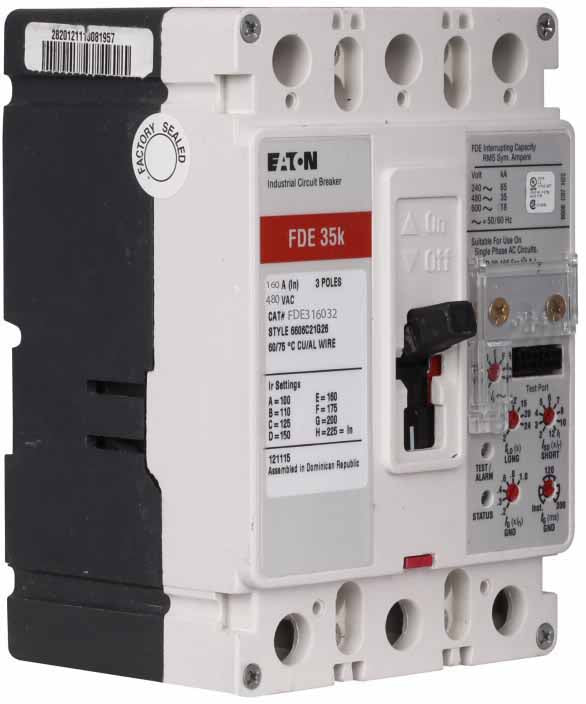

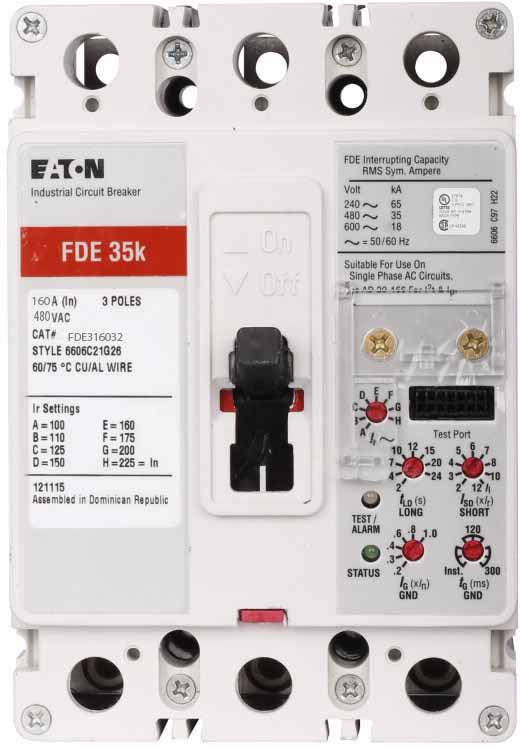

FDE316032 - Cutler Hammer 160 Amp 600VAC 3 Pole Molded Case Circuit Breaker Series C Electronic Trip

FDE316032

FDE316032 is a Cutler Hammer (Eaton) Series C 3 Pole molded case circuit breaker rated for 160 Amps and 600VAC/250VDC operation.This circuit breaker features an electronic LSI (Long-time, Short-time, Instantaneous) trip unit, suitable for reliable protection in industrial and commercial power distribution. It supports bolt-on mounting and offers interrupt ratings up to 65kA at 240VAC, ensuring robust fault current interruption. The breaker is UL Listed and designed for panel or DIN rail installation.

Key Specifications
• Amperage: 160 Amps
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Series/Frame: Series C (FDE frame)
• Trip Unit: Electronic LSI
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Mounting Type: Bolt-on
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDE316032
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FDE
• Voltage : 480
• Amperage : 160
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786685112121
• GTIN : 00786685112121
• Country of Origin : Dominican Republic
• Dimensions : 7.4 in x 4.9 in x 5.1 in (Length/Depth x Height x Width)
• Weight : 4.3
• Certification : UL Listed
