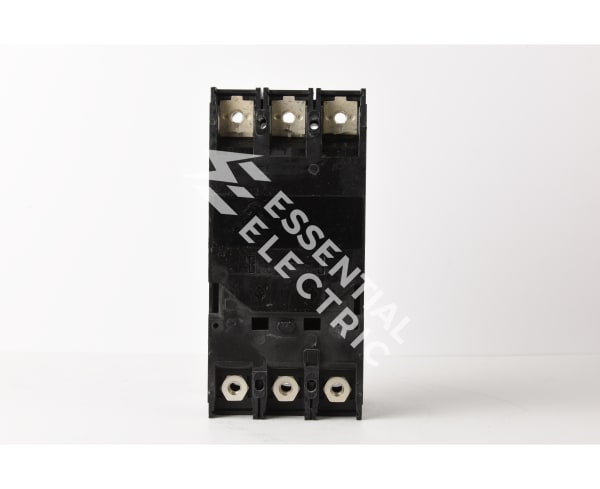

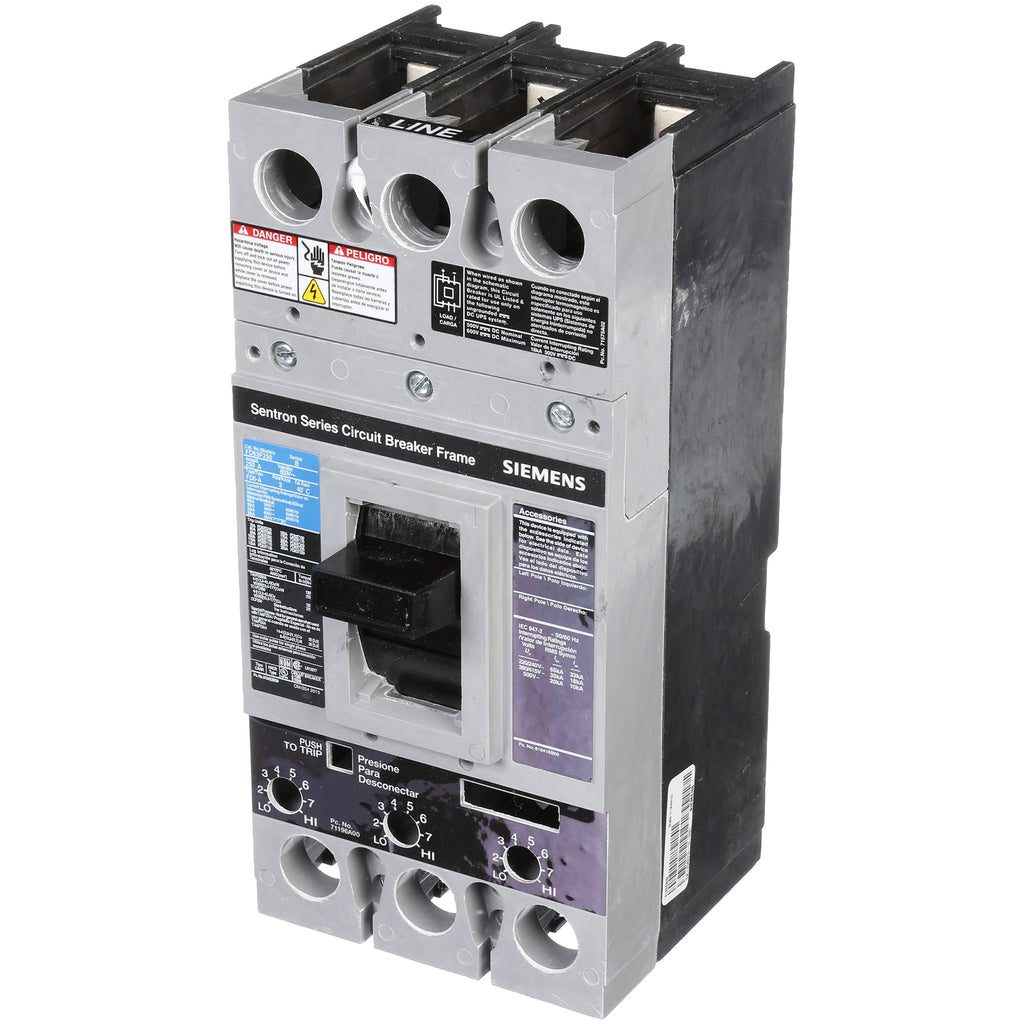

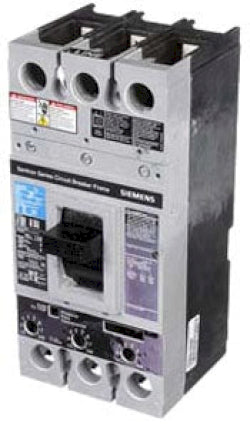

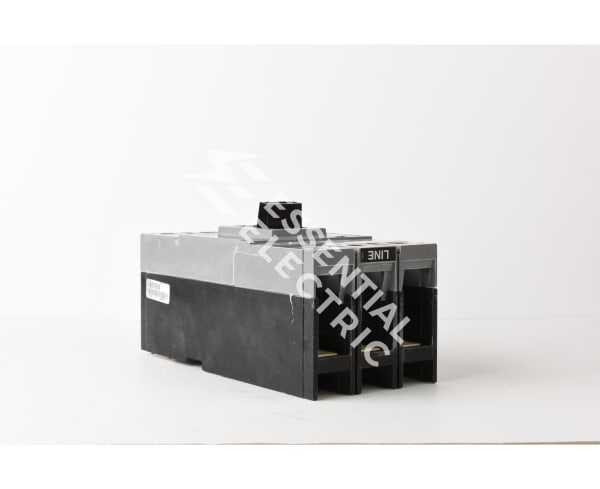

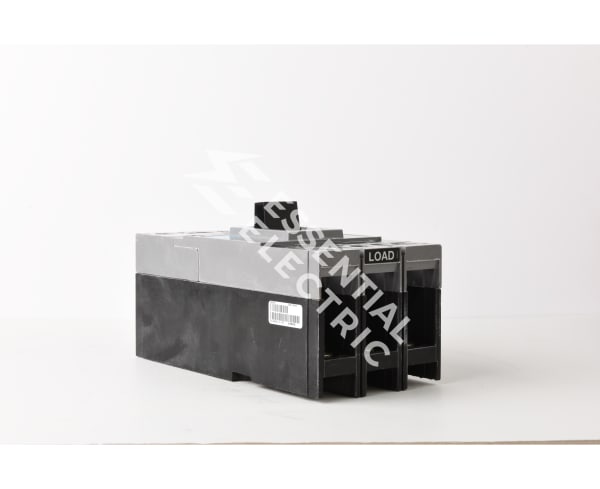

FD63F250 - Siemens 250 Amp 600V 3-Pole FD Series Molded Case Circuit Breaker Frame, Bolt-On, 22kAIC at 600V, Thermal Magnetic Trip

FD63F250

FD63F250 is a Siemens Sentron molded case circuit breaker frame designed for industrial heavy-duty applications. This frame-only unit accepts interchangeable thermal units rated from 70A to 250A and supports field-installable shunt trip mechanisms and auxiliary switches for remote operations.Technical Specifications: The FD63F250 is a 3-pole breaker rated for 600 VAC and 500 VDC service. It features thermal-magnetic trip protection and meets UL 489 and IEC 60947-2 standards. The standard interrupting capacity is 22 kiloampere at 600 VAC, 35 kiloampere at 480 VAC, and 65 kiloampere at 240 VAC. For international applications, it provides 20 kiloampere at 500 VAC and 35 kiloampere at 380/415 VAC per IEC standards. The breaker accepts wire sizes from 6 AWG to 350 KCM copper or 4 AWG to 350 KCM aluminum on both line and load sides.

• Amperage: 250A
• Voltage: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: FD Molded Case
• Trip Unit: Thermal-Magnetic
• Interrupting Rating: 22kA @ 600V, 35kA @ 480V, 65kA @ 240V
• Terminal Type: Line and Load Side Lugs
• Wire Range: 6 AWG - 350 KCM (Copper) / 4 AWG - 350 KCM (Aluminum)
• Mounting: Bolt-on
• Certifications: UL 489, IEC 60947-2
• Dimensions: 4.5 in W x 5.25 in D x 9.5 in H
• Weight: 7.8 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD63F250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211537
• GTIN : 00783643211537
• Country of Origin : Mexico
• Weight : 7.804
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, CU, AWG 4 to 350KCM, AL
