Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD63B200

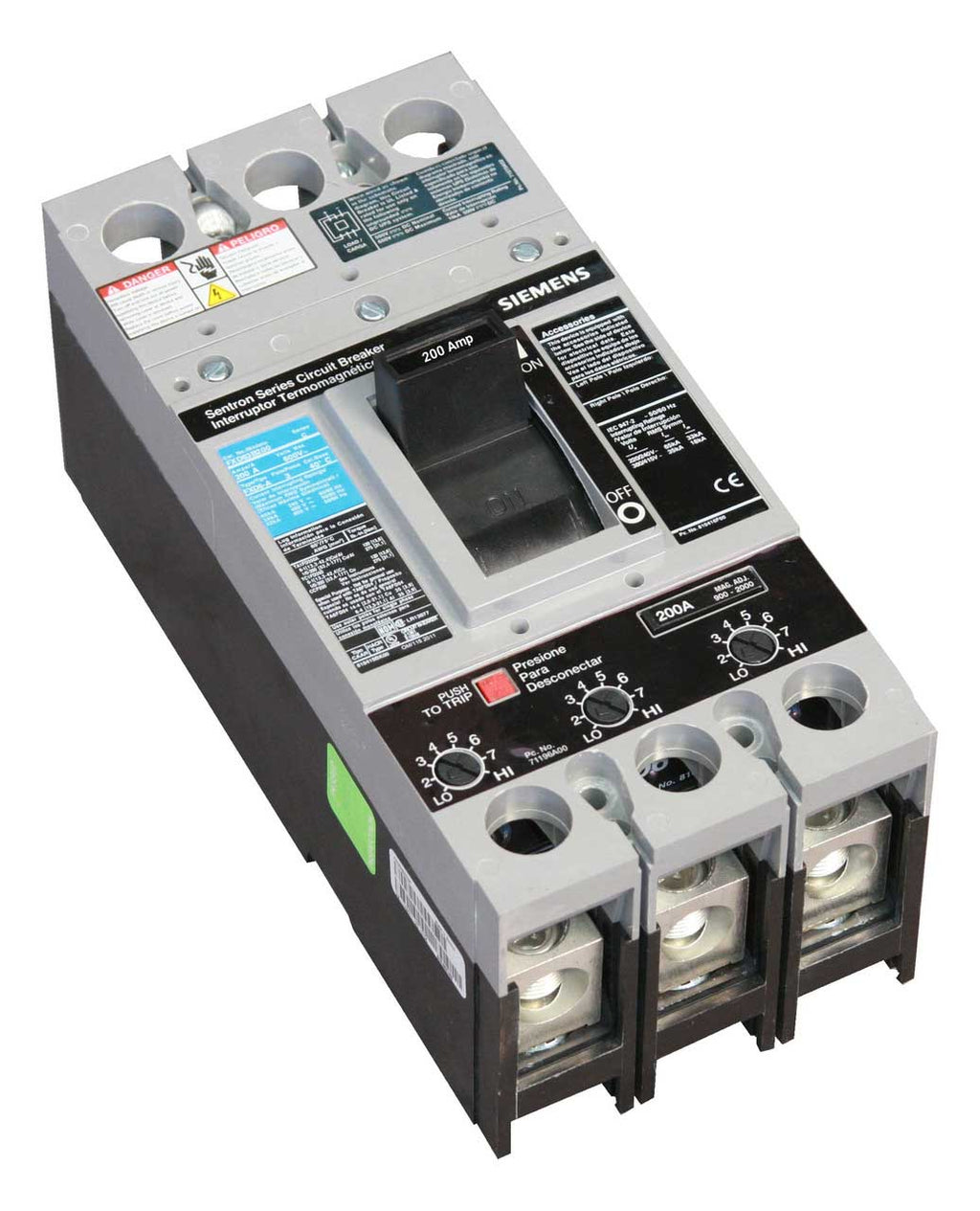

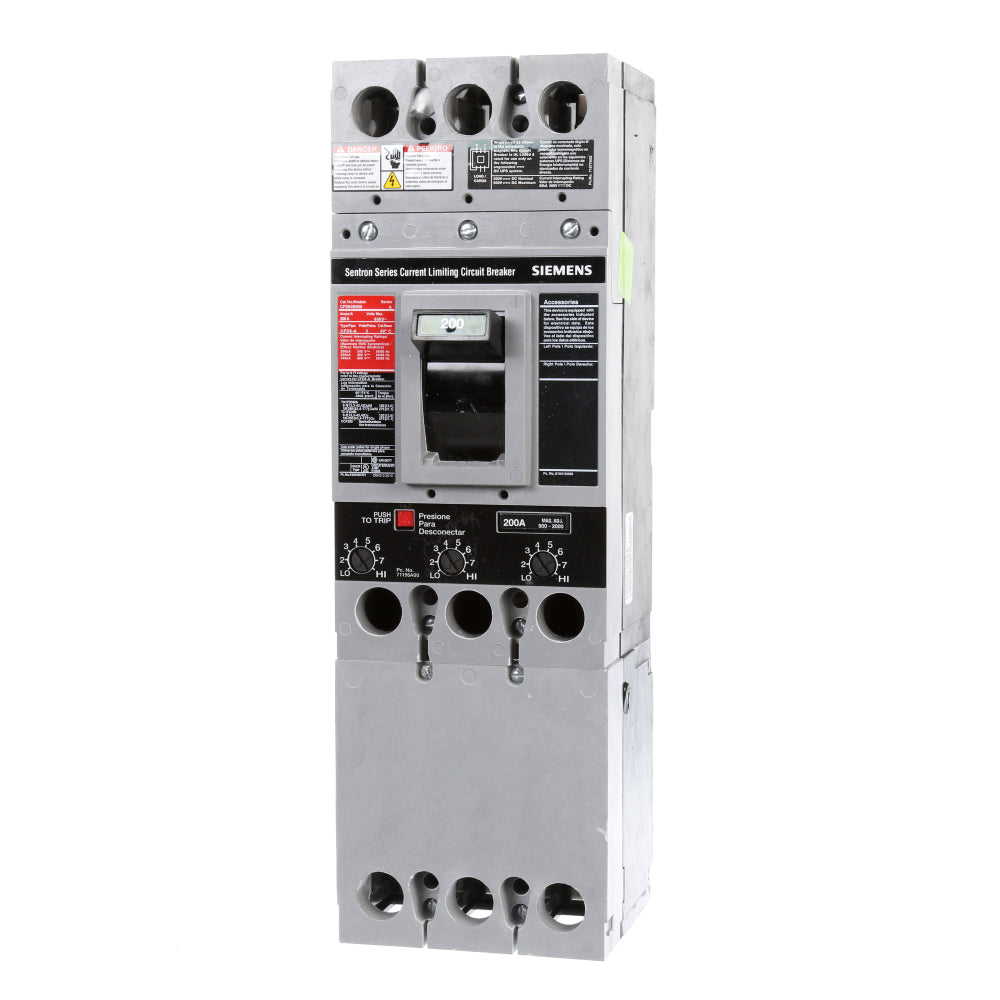

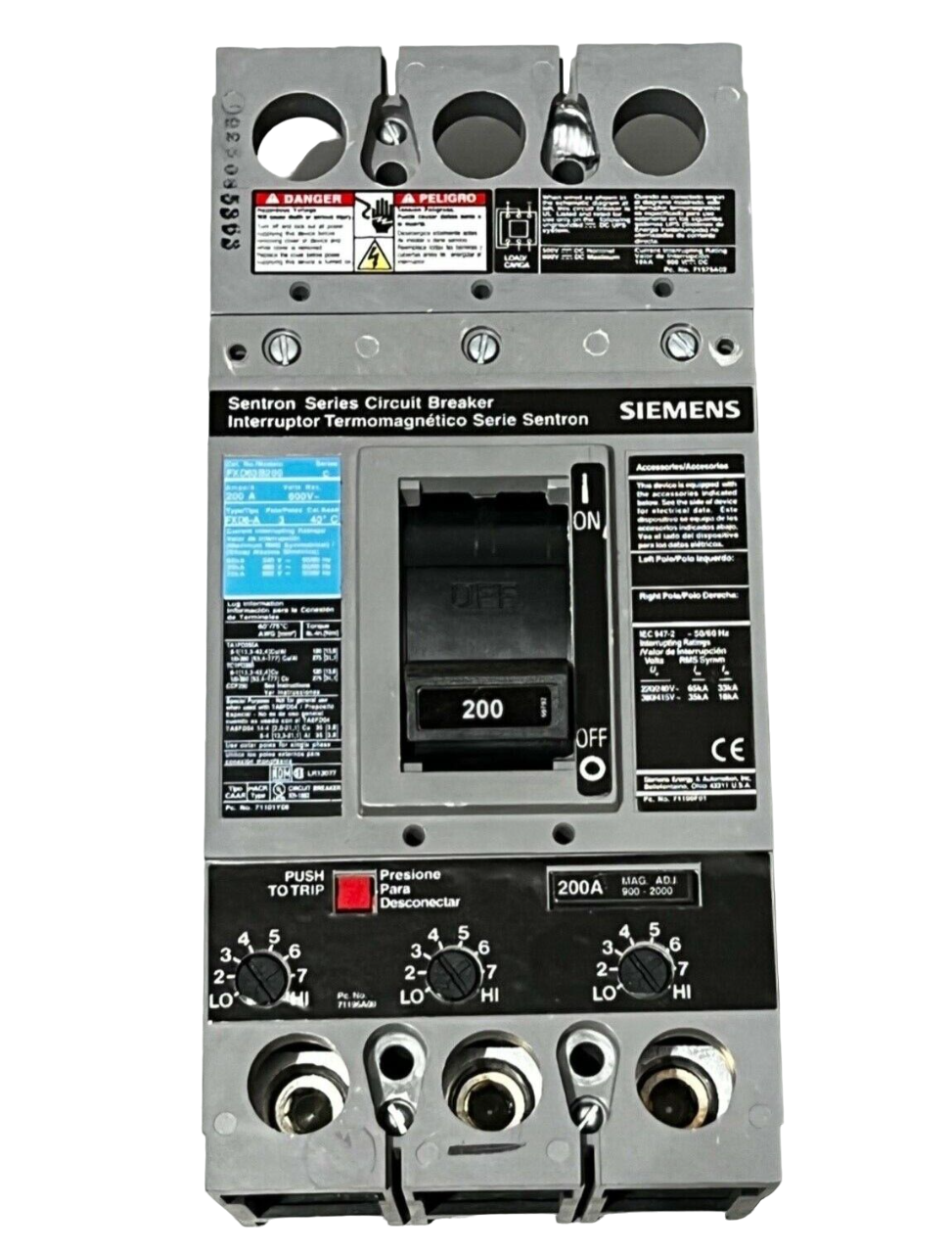

FD63B200 - Siemens Sentron series molded case circuit breaker with thermal magnetic trip unit, 3-pole, 200A rating, and standard breaking capacity.This unassembled FD frame circuit breaker features interchangeable thermal magnetic trip with 900-2000A trip range, 22kA interrupt rating at 600VAC, and load lug terminals for reliable circuit protection in motor and overload applications.
- Part Number: FD63B200
- Manufacturer: Siemens
- Amperage Rating: 200A
- Voltage Rating: 600VAC / 500VDC
- Number of Poles: 3
- Frame Size: FD6
- Trip Type: Thermal Magnetic
- Trip Range: 900 to 2000A
- Interrupt Rating: 22kA at 600V
- Frequency: 50/60 Hz
- Temperature Rating: 40 deg C
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FD63B200
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211490
- GTIN : 00783643211490
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.488
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
