Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD63B175

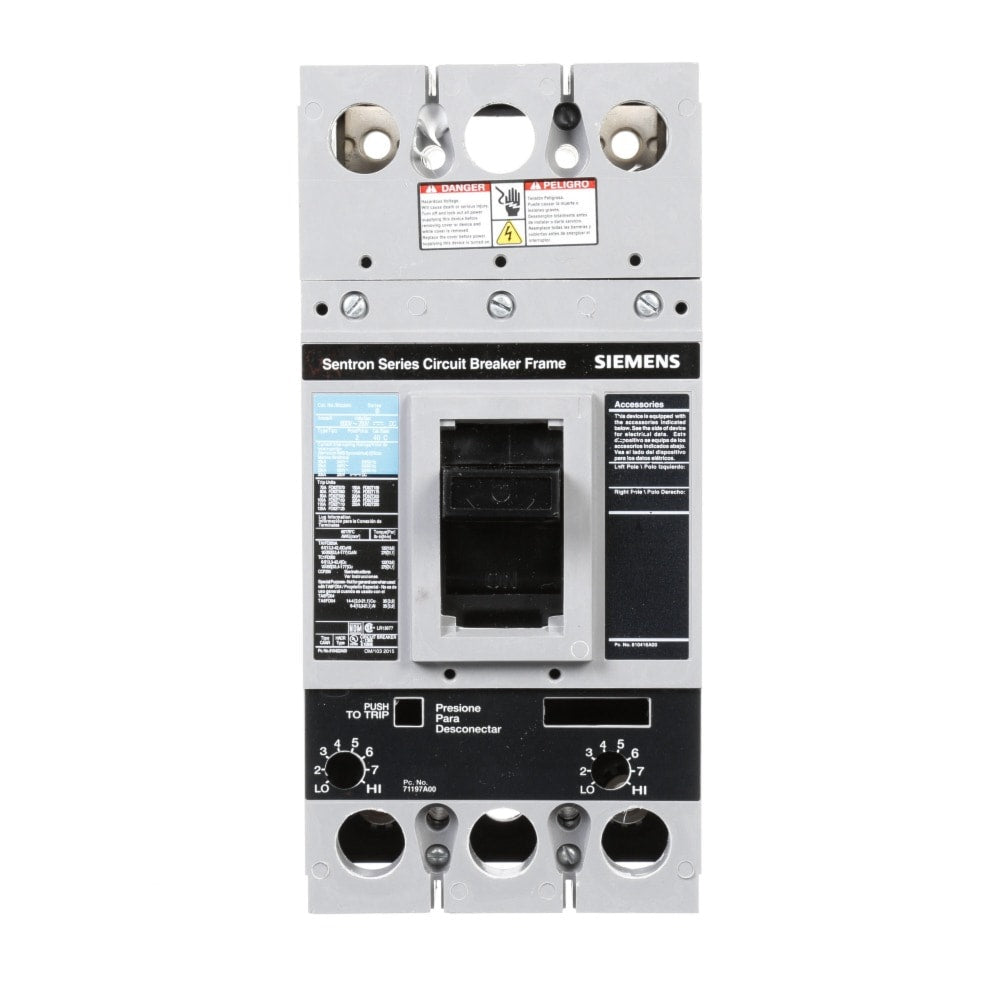

FD63B175 - Siemens Sentron Series molded case circuit breaker, 3-pole, 175A, 600VAC, type FD6 with 22 kAIC interrupt rating.This Siemens FD63B175 is a standard 40C FD frame breaker featuring high breaking capacity, thermal-magnetic trip unit, and line/l load lugs for panelboard mounting. It provides reliable overcurrent protection in industrial and commercial applications, meeting UL 489 standards.
- Part Number: FD63B175
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Frame/Series: FD6 / Sentron Series
- Poles: 3
- Amperage: 175A
- Voltage AC: 600V
- Interrupt Rating AC: 22 kA at 600V
- Mounting: Panelboard (Line/Load Lugs)
- Trip Unit: Thermal-Magnetic
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FD63B175
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211483
- GTIN : 00783643211483
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.444
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
