Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD63B125

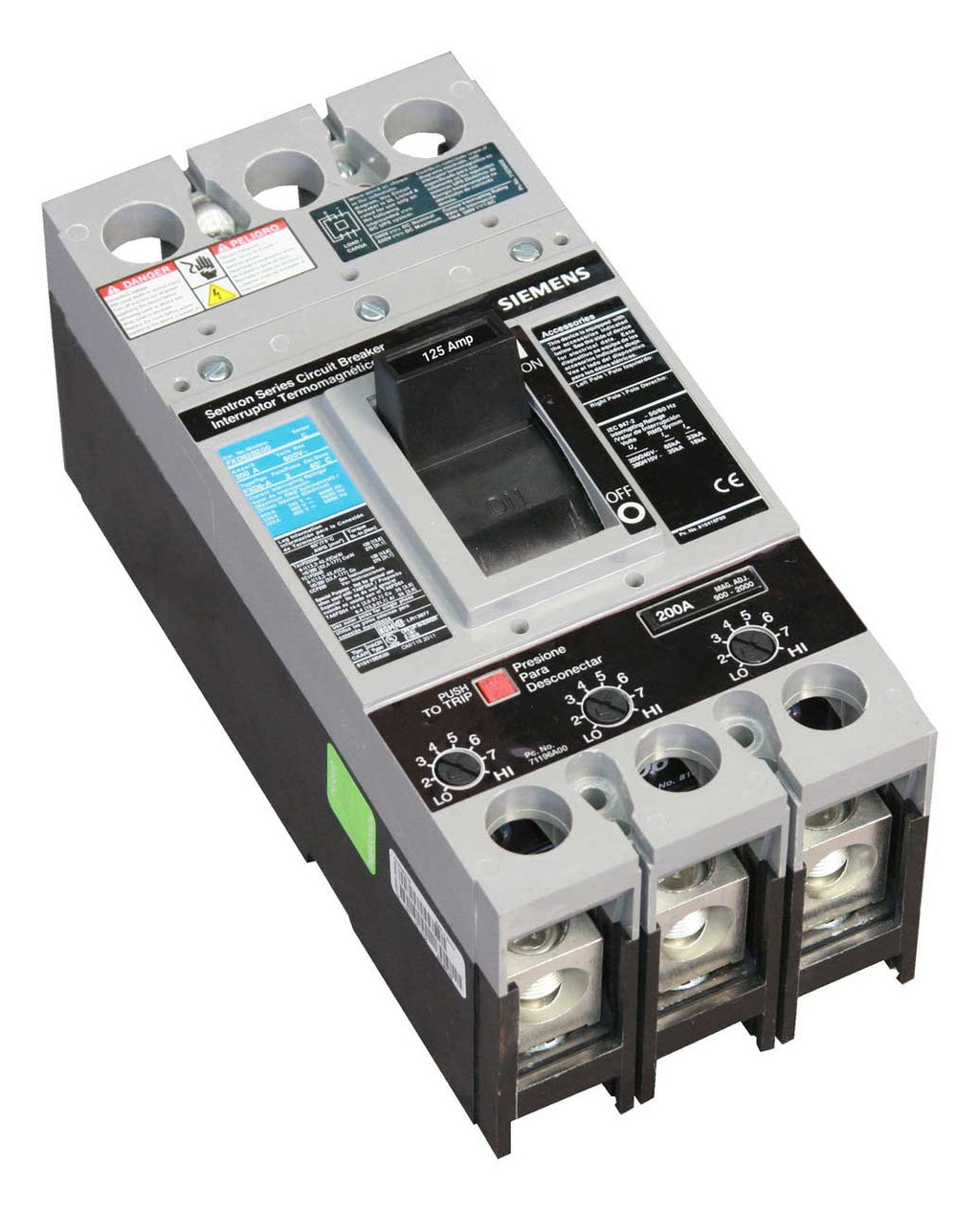

FD63B125 - Siemens Sentron FD6 molded case circuit breaker, 3-pole, 125A thermal magnetic trip.This Siemens FD63B125 is a type FD6 molded case circuit breaker with interchangeable thermal magnetic trip unit, rated for 125A at 40C, 600VAC/500VDC, and 3 poles. It features line and load lugs, bolt-on mounting, and interrupting ratings including 22kA at 600VAC.
- Part Number: FD63B125
- Manufacturer: Siemens
- Series/Frame: FD6
- Amperage Rating: 125A
- Voltage Rating: 600VAC / 500VDC
- Poles: 3
- Trip Type: Thermal Magnetic
- Interrupt Rating: 22kA @ 600VAC
- Mounting Type: Bolt-On
- Temperature Rating: 40C
- Frequency: 50/60Hz
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FD63B125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211469
- GTIN : 00783643211469
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 10.516
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
