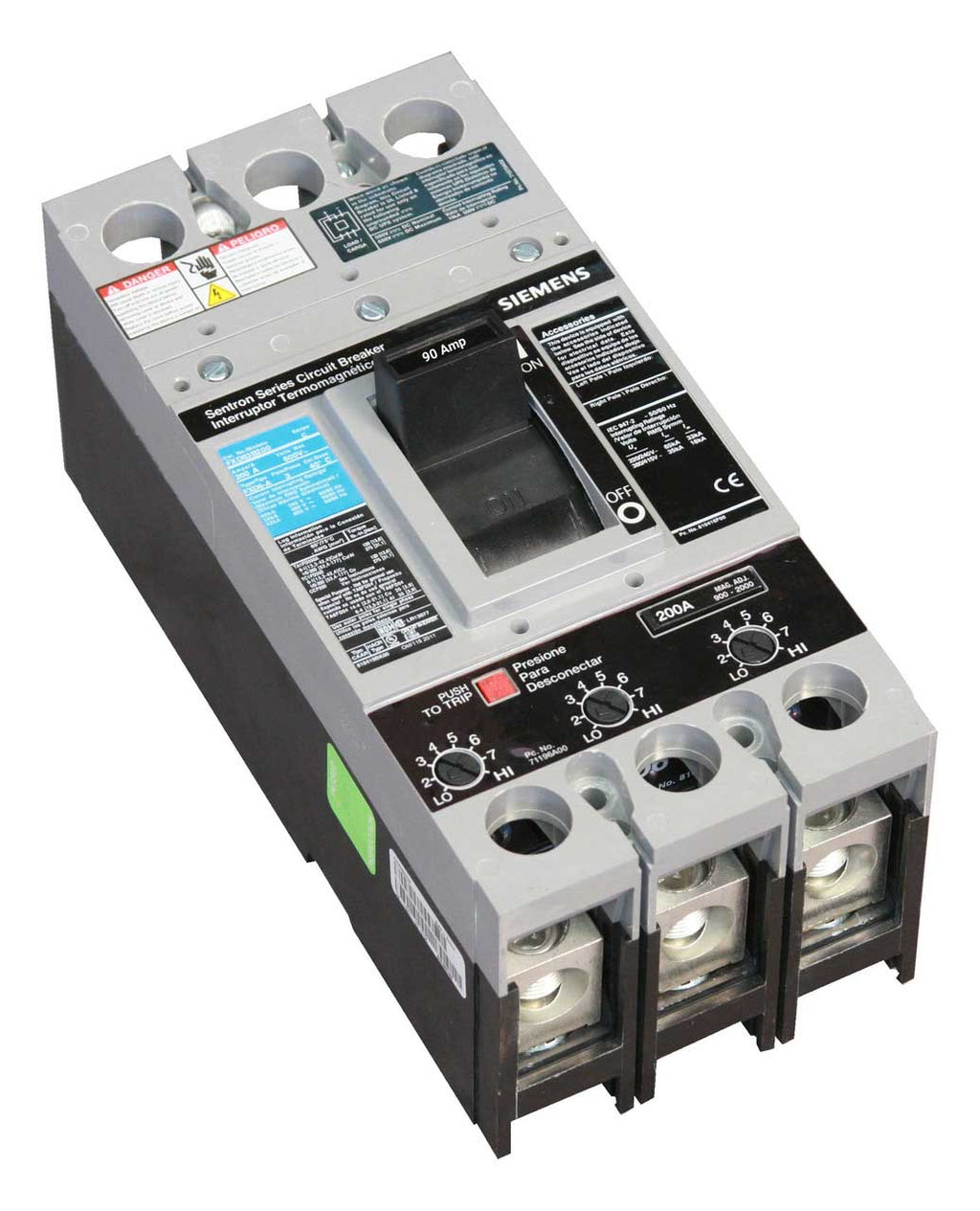

FD63B090 - Siemens 90A 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic Trip 600VAC 35kAIC @ 480V

FD63B090

FD63B090 is a Siemens 90A 3-pole molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features an FD frame, thermal magnetic trip unit, and is rated for 600VAC with a 35kAIC interrupt rating at 480VAC. It is suitable for a wide range of applications requiring high breaking capacity and dependable performance. Engineered for durability and safety, the FD63B090 breaker supports bolt-on mounting and includes lugs for copper and aluminum wiring. The interchangeable trip unit allows for flexible configuration, and the breaker meets UL 489 and IEC 60947-2 standards for circuit protection.

• 90 Ampere rating
• 3 Pole configuration
• 600VAC maximum voltage
• FD Frame series
• Thermal magnetic trip unit
• 35kAIC interrupt rating at 480VAC
• 65kAIC interrupt rating at 240VAC
• Bolt-on mounting type
• Includes copper and aluminum lugs
• UL 489 certified
• IEC 60947-2 compliant
• Interchangeable trip unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: FD63B090
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643211438
• GTIN : 00783643211438
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.973
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
