Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description

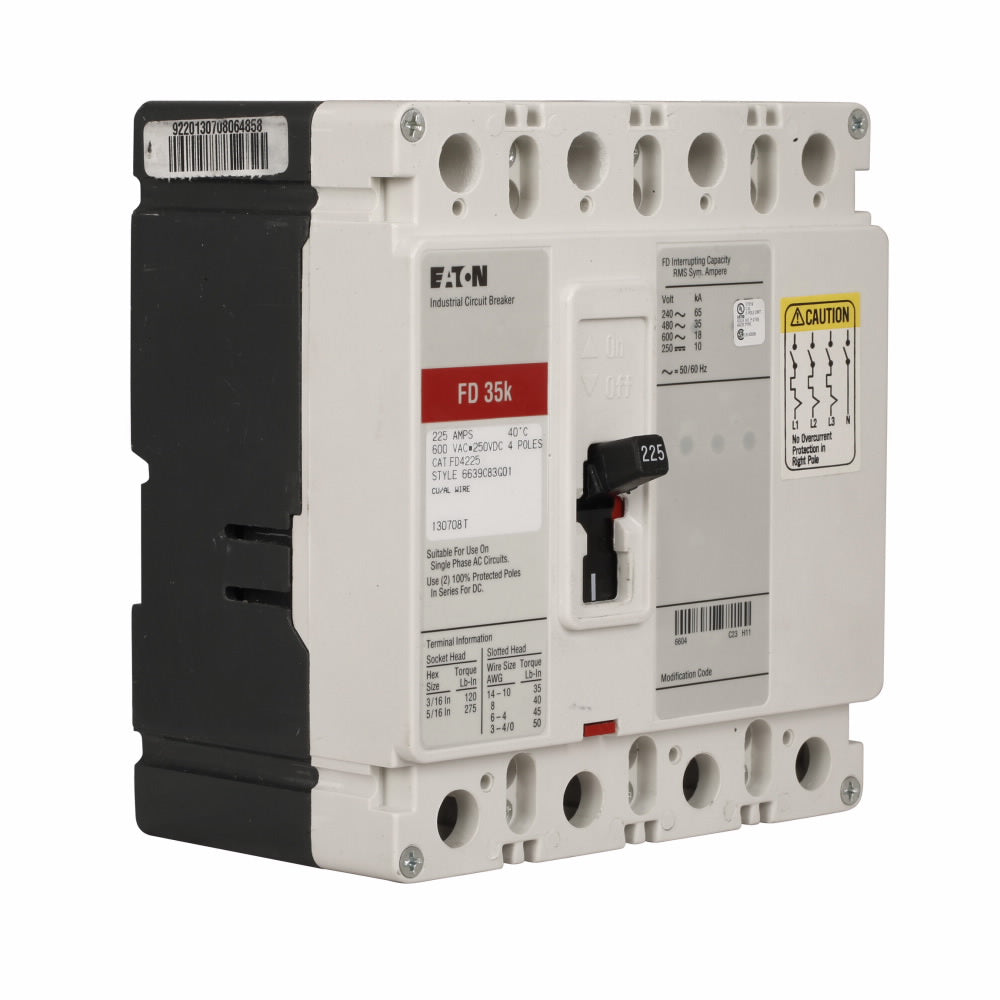

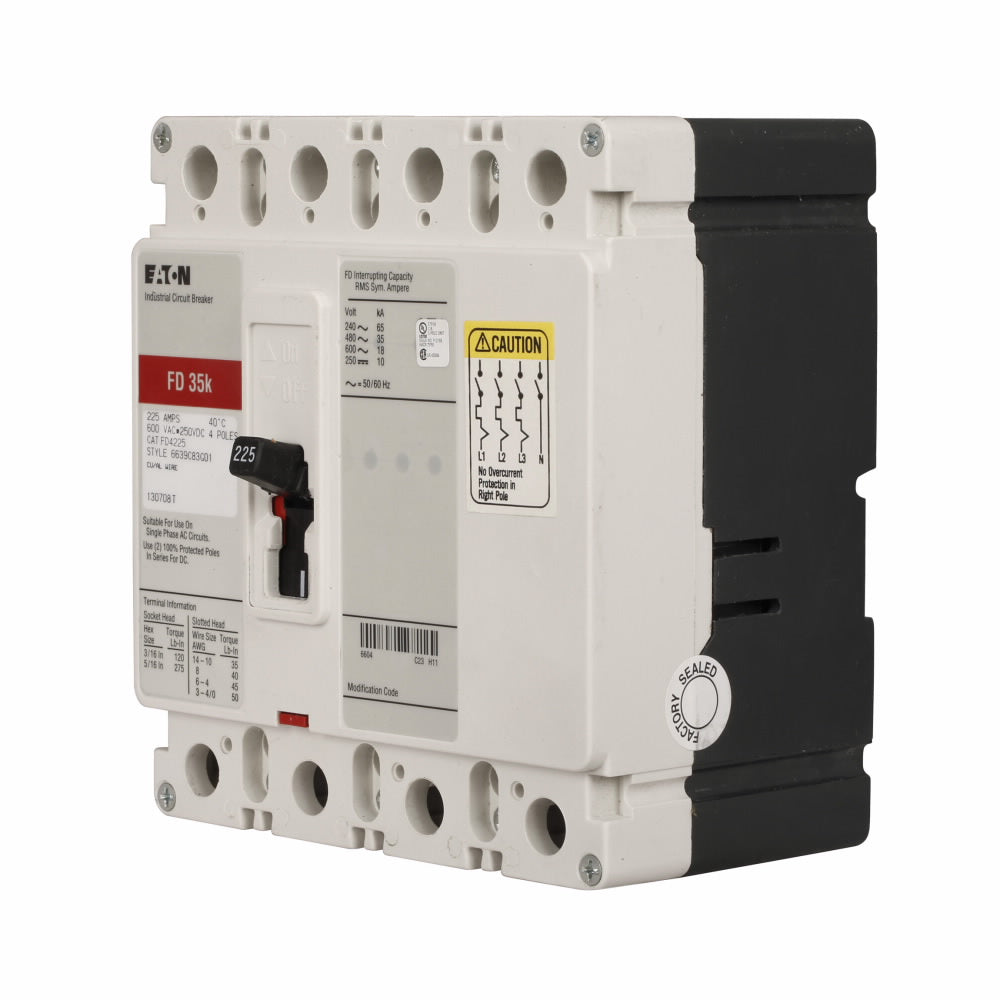

FD4225L
FD4225L is a Westinghouse 4-pole molded case circuit breaker designed for 225 ampere and 600 volt applications with fixed thermal and magnetic trip units.FD4225L features a robust C series FD frame suitable for industrial and commercial power distribution, providing reliable circuit protection with a thermal magnetic trip mechanism. It supports up to 600 VAC and is engineered for fixed mounting with a high interrupt rating to ensure safety and durability.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600 VAC
- Number of Poles: 4
- Series/Frame: C Series FD Frame
- Trip Unit Type: Fixed Thermal, Fixed Magnetic
- Mounting Type: Fixed
- Interrupt Rating: High (typical for FD series, exact kA not specified)
- Phase: 3
- Certifications: IEC 60947-2 compliant (typical for Westinghouse MCCB)
Specifications
- Part Number: FD4225L
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 4
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679015513
- GTIN : 00786679015513
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
