2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
FD4225

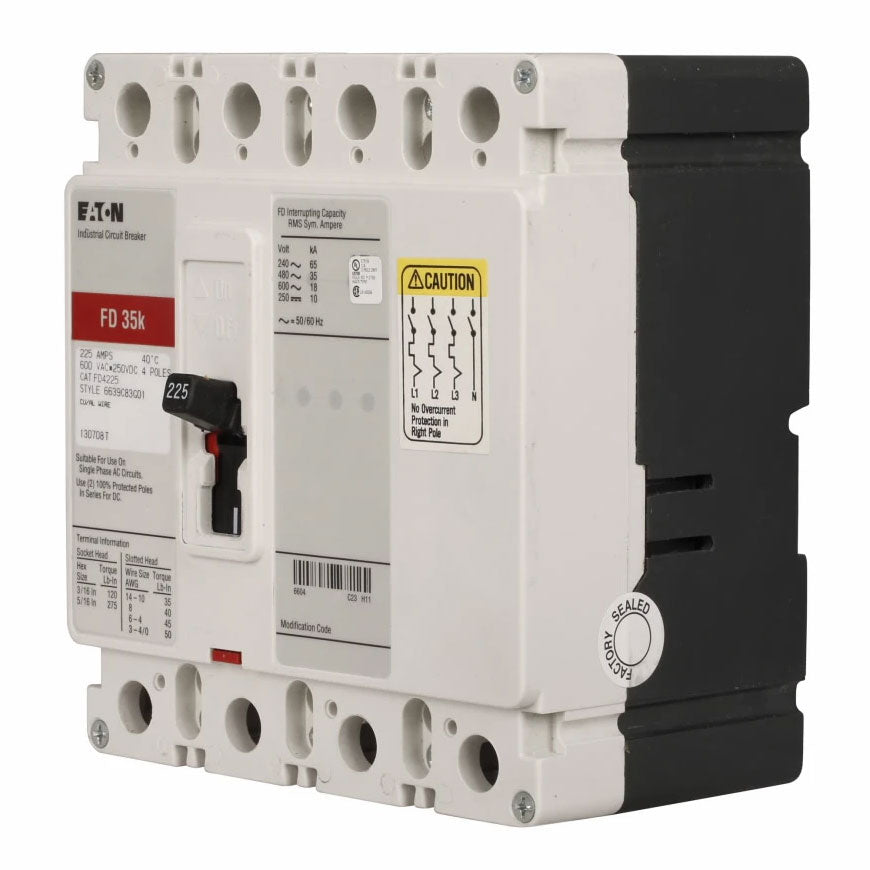

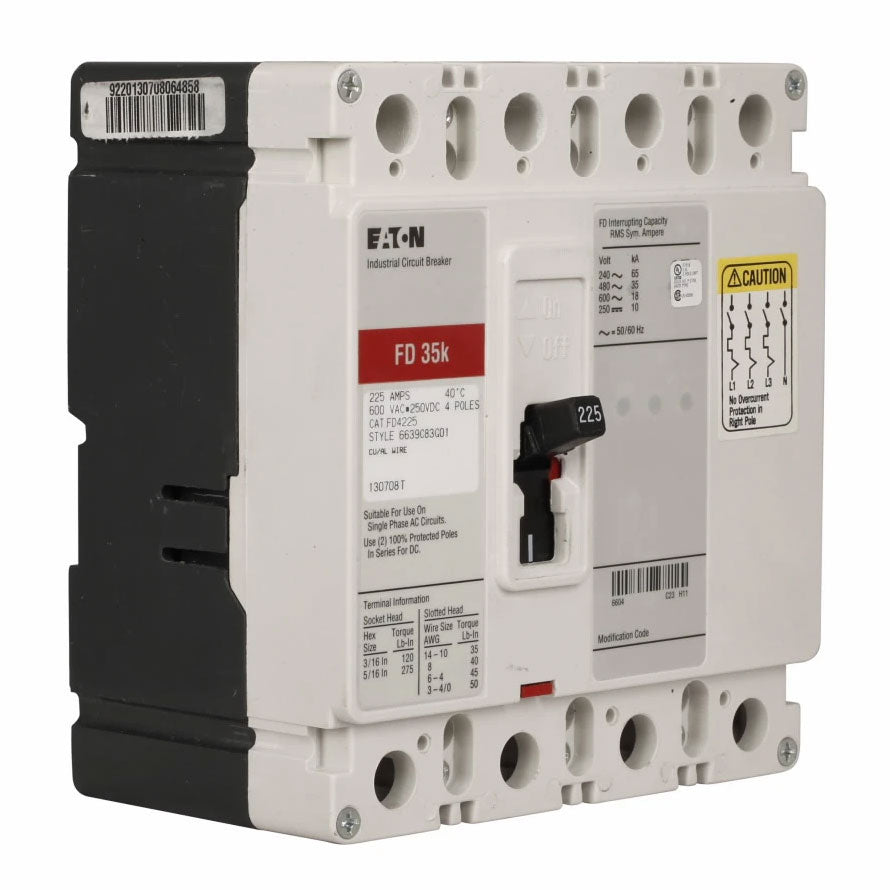

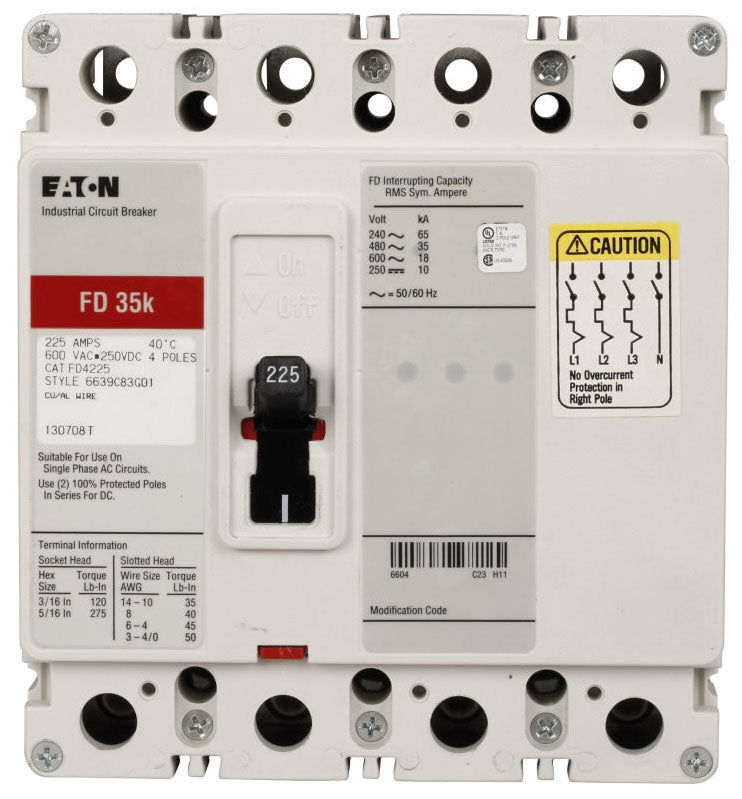

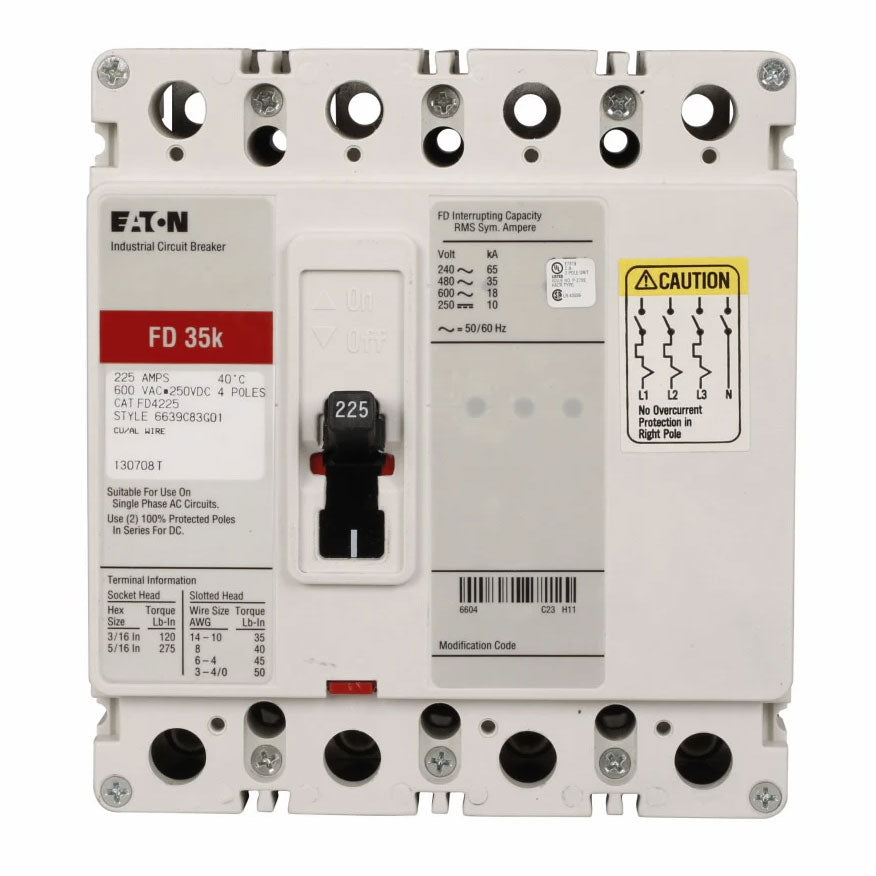

FD4225 is a Cutler Hammer 225 amp, 4-pole molded case circuit breaker designed for panel mounting with thermal magnetic trip protection.This Series C F-frame breaker supports a maximum voltage of 600 VAC and 250 VDC, featuring a fixed thermal and magnetic trip unit. It offers a 25kA interrupt rating at 480V and is UL listed for safety and reliability. The breaker measures 5.5" x 5.5" x 3.38" and weighs approximately 6.3 lbs.
- Amperage: 225 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 4
- Mounting Type: Panel mount
- Interrupt Rating: 25kA at 480V
- Series/Frame: Series C, F-Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- UL Listed Certification
- Dimensions: 5.5" H x 5.5" W x 3.38" D
- Weight: 6.3 lbs
Specifications
- Part Number: FD4225
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 4
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679015483
- GTIN : 00786679015483
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
