Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
FD3200L

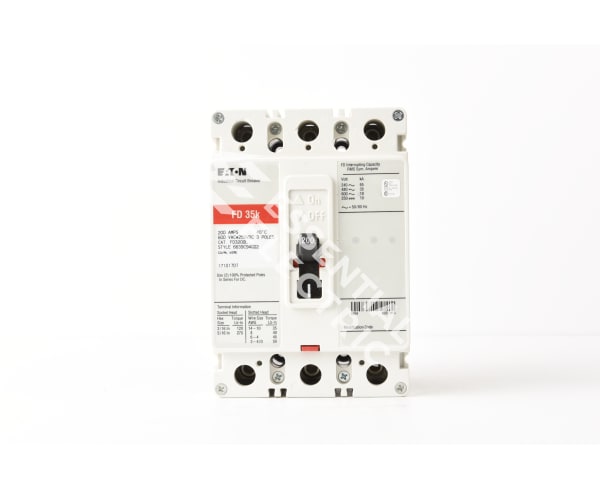

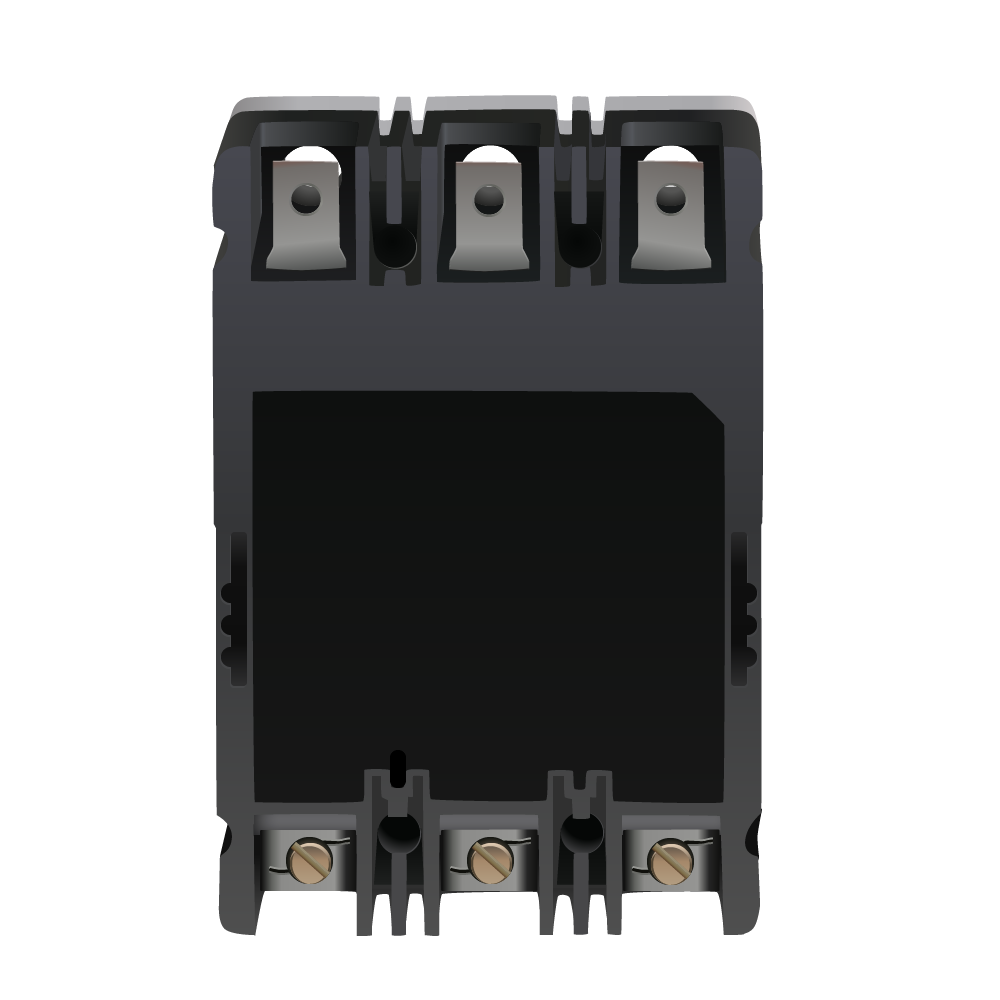

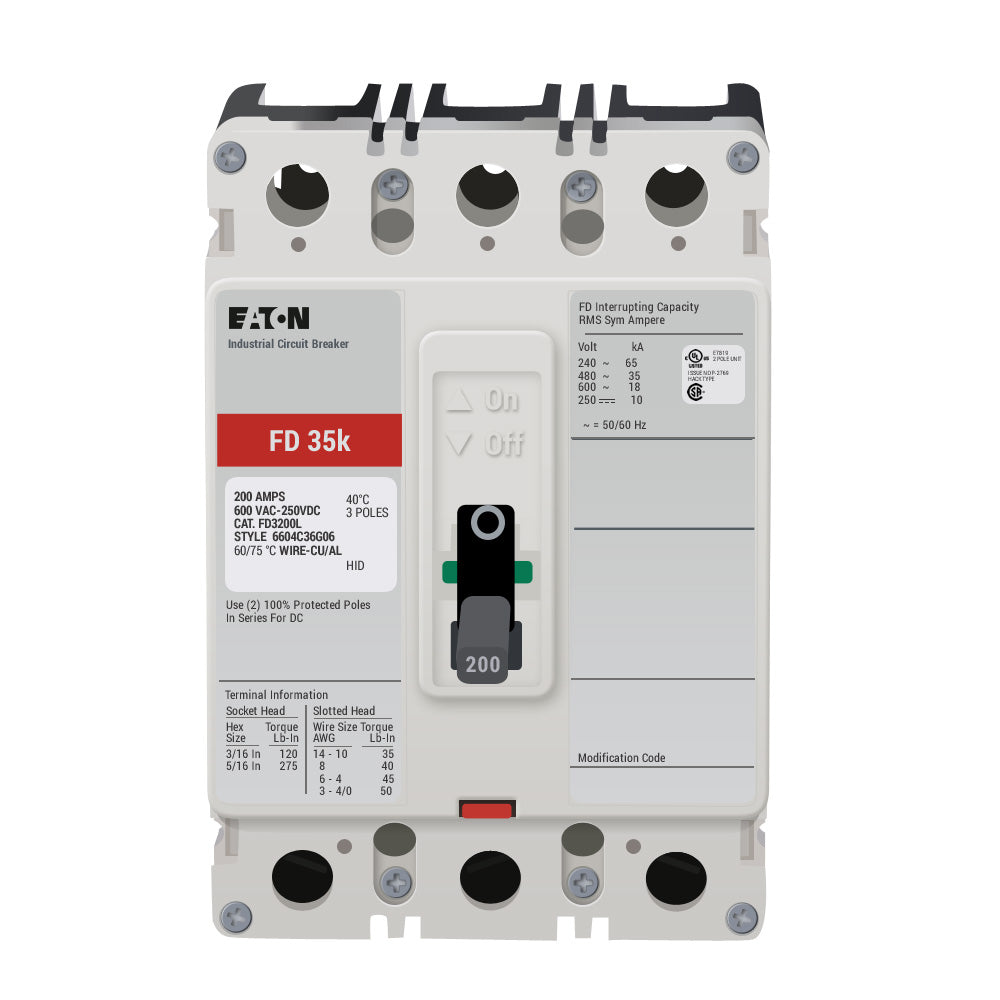

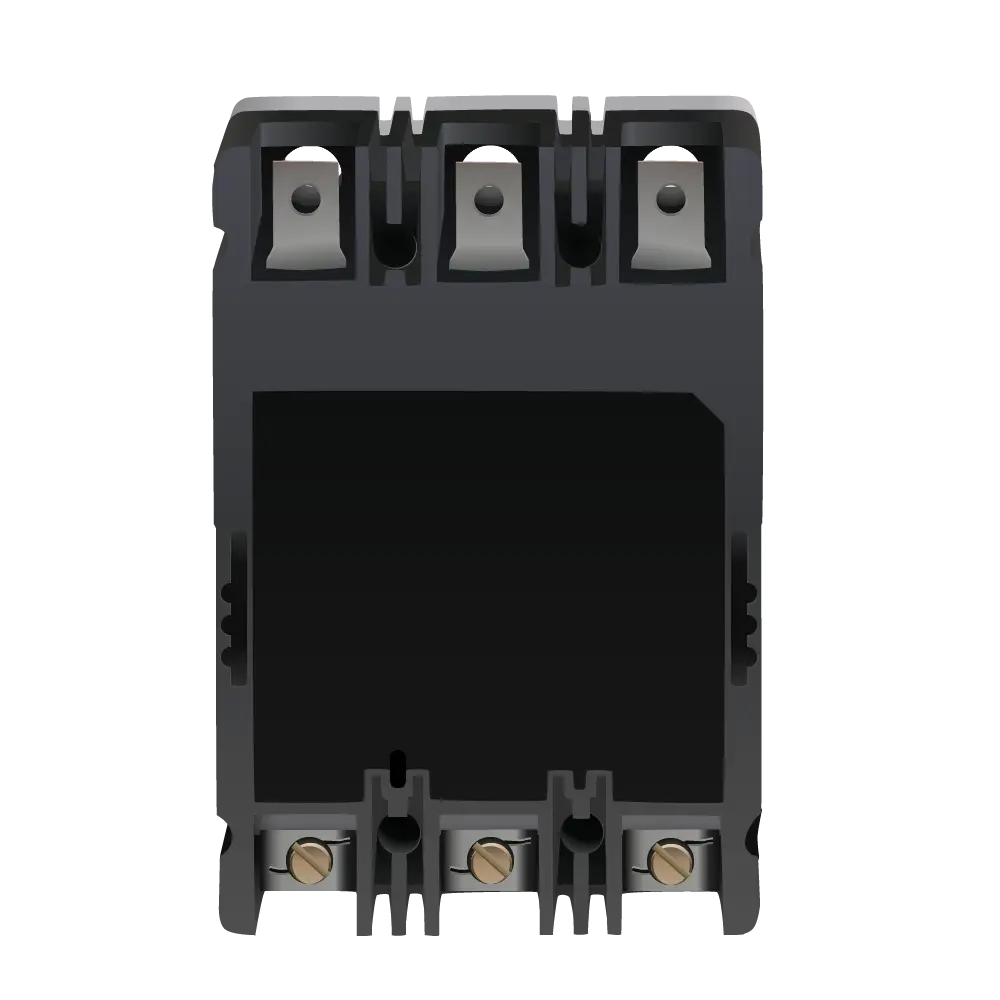

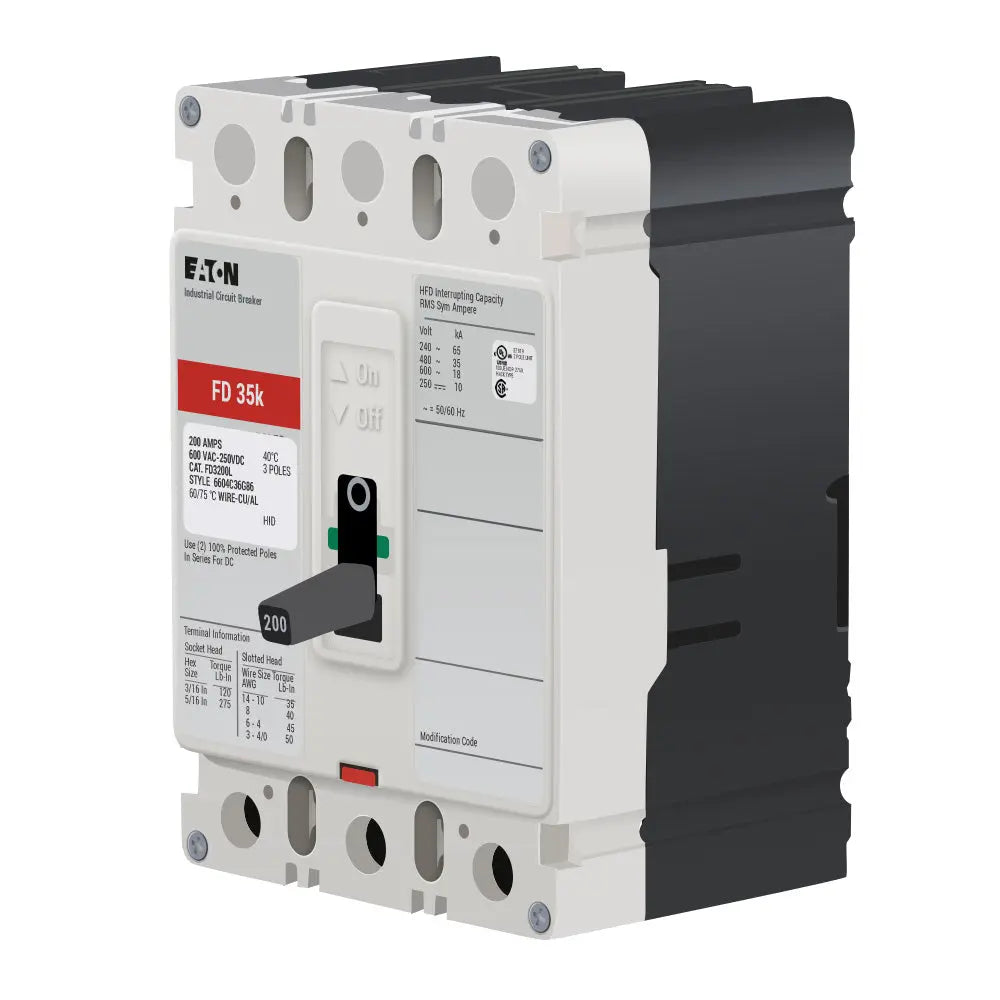

FD3200L is a 3-pole, 200 amp molded case circuit breaker from Cutler Hammer designed for reliable power distribution protection.This FD frame breaker supports 600 VAC and 250 VDC voltage ratings with a standard interrupt rating up to 35kA at 480V. It features a T186 trip unit and is part of Eaton's Series C line, suitable for industrial and commercial applications requiring robust circuit protection.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: FD3200L
- Amperage: 200 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Frame Type: FD (Series C)
- Interrupt Rating: 35kA @ 480V, 65kA @ 240V
- Trip Unit: T186
- Mounting Type: Molded Case
- Certifications: Standard industrial certifications (per Series C)
- Weight: Approximately 5 lbs
Specifications
- Part Number: FD3200L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679015407
- GTIN : 00786679015407
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
