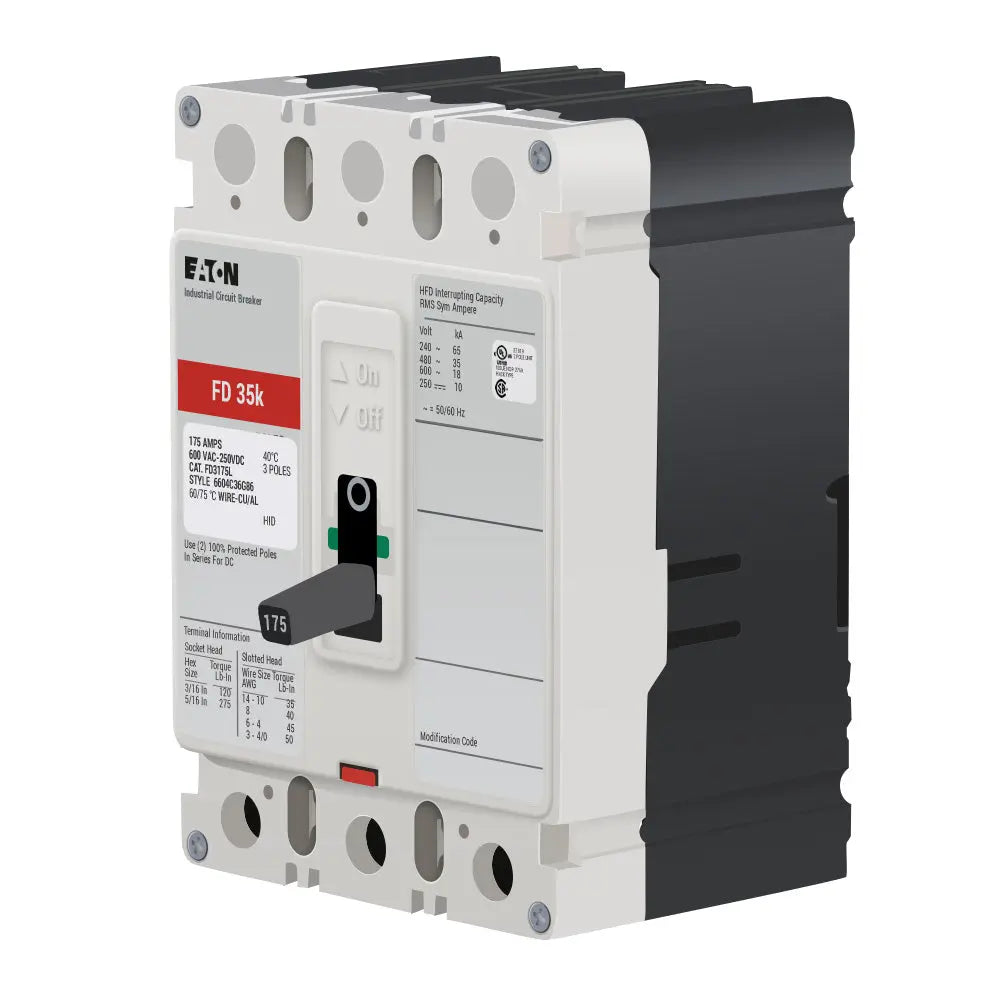

FD3175L - Cutler Hammer 175A 600V 3-Pole F-Frame Molded Case Circuit Breaker

FD3175L

FD3175L is a Cutler Hammer 175 Amp, 600 Volt, 3-pole molded case circuit breaker designed for reliable circuit protection.This FD series, F-frame breaker features a fixed thermal-magnetic trip unit and is rated for 35kA interrupt capacity at 480V AC. It supports both line and load cable connections and is suitable for industrial and commercial electrical distribution systems.

Key Specifications
• Amperage: 175 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: F-Frame
• Series: Series C
• Trip Type: Fixed Thermal-Magnetic (T186)
• Interrupt Rating: 35 kA @ 480 VAC
• Mounting Type: Molded Case
• Line and Load Terminals
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FD3175L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679015414
• GTIN : 00786679015414
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
