Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

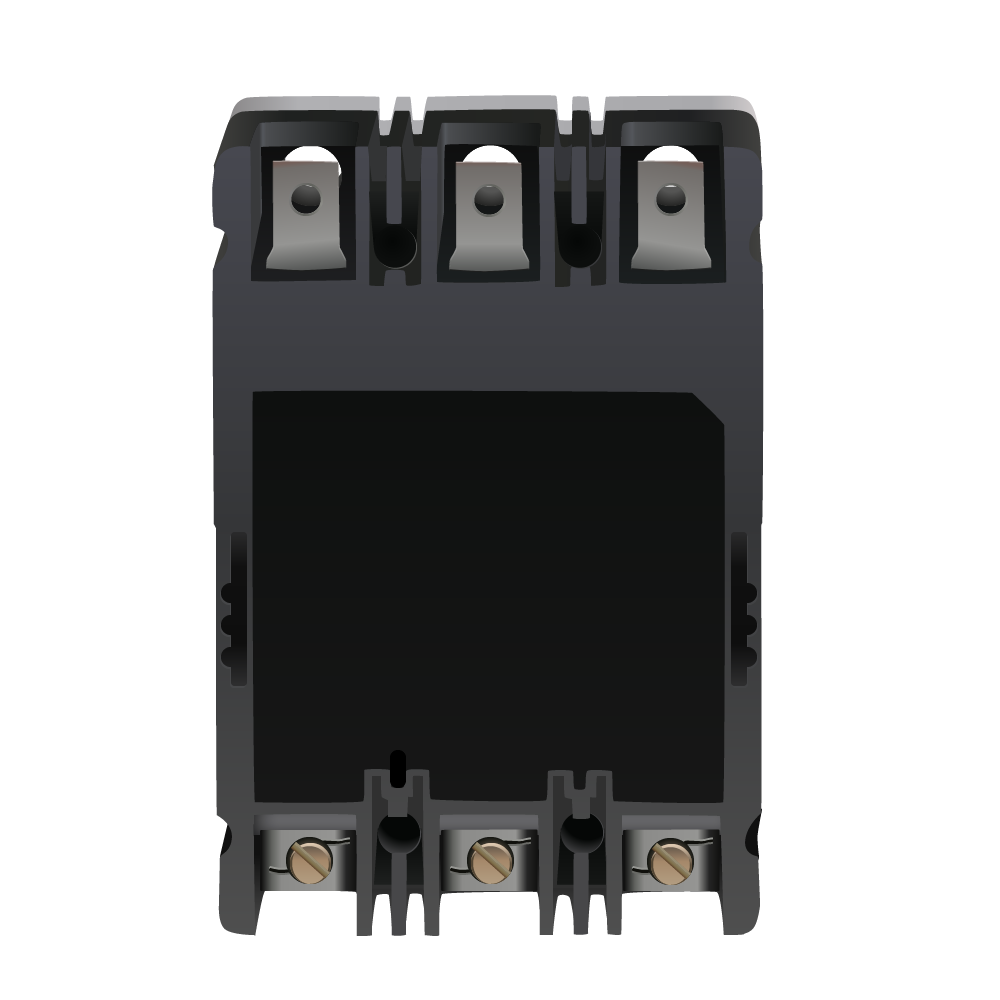

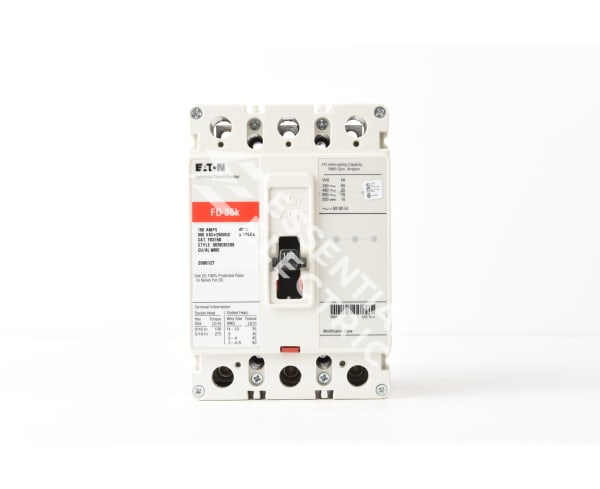

FD3150
FD3150 is a Cutler Hammer molded case circuit breaker designed for industrial and commercial power distribution applications.
This Eaton Series C FD frame breaker features a 150 amp rating, 600 volt AC and 250 volt DC capability, and a 3-pole configuration with bolt-on mounting. It uses a fixed thermal and fixed magnetic trip unit providing long-time and instantaneous protection with a 35kA interrupt rating at 480V. The breaker is UL listed and designed for reliable thermal magnetic protection in three-phase systems.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 150 A
- Voltage: 600 Vac / 250 Vdc
- Poles: 3
- Frame Type: FD Frame
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Series: Eaton Series C
- Certifications: UL Listed
- Phase: 3
- Connection: Line and Load Terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FD3150
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 225A/F
- Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 786679305799
- GTIN : 00786679305799
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards : CSA Certified, IEC Rated, UL Listed
- Certification : CSA Certified, IEC Rated, UL Listed
