Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
FD3125

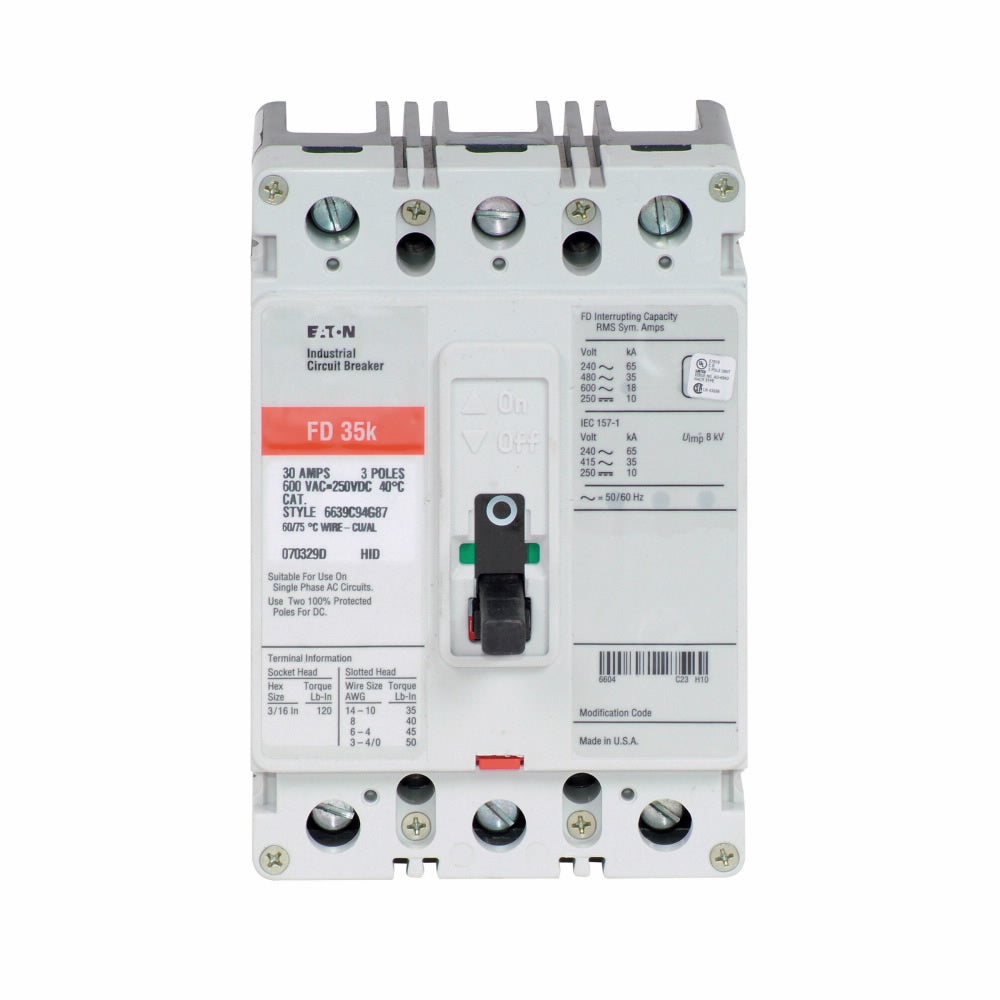

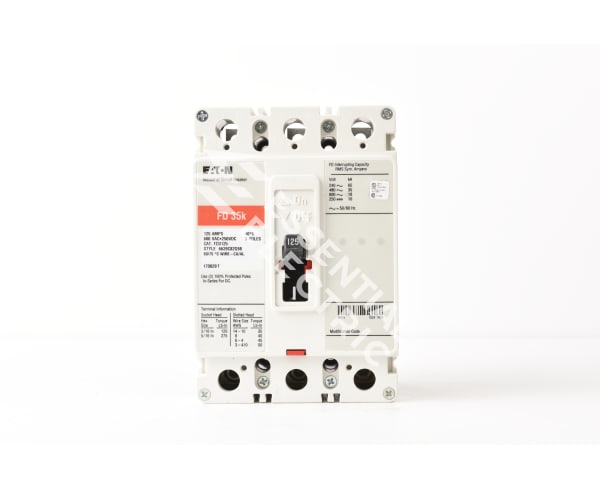

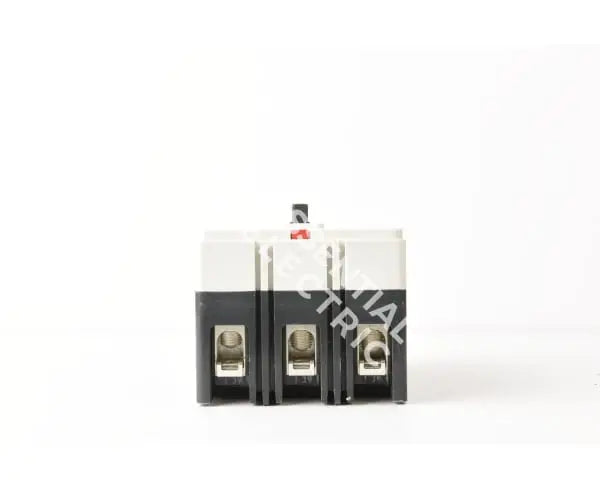

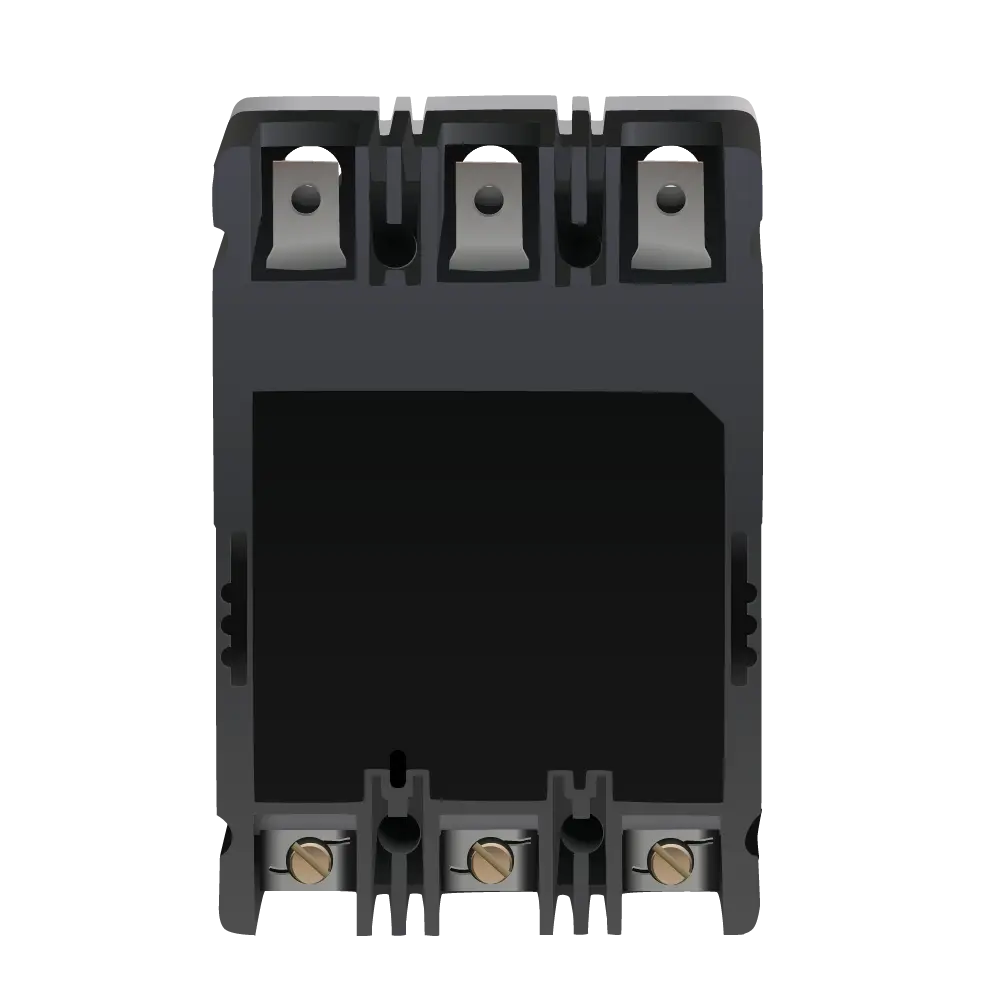

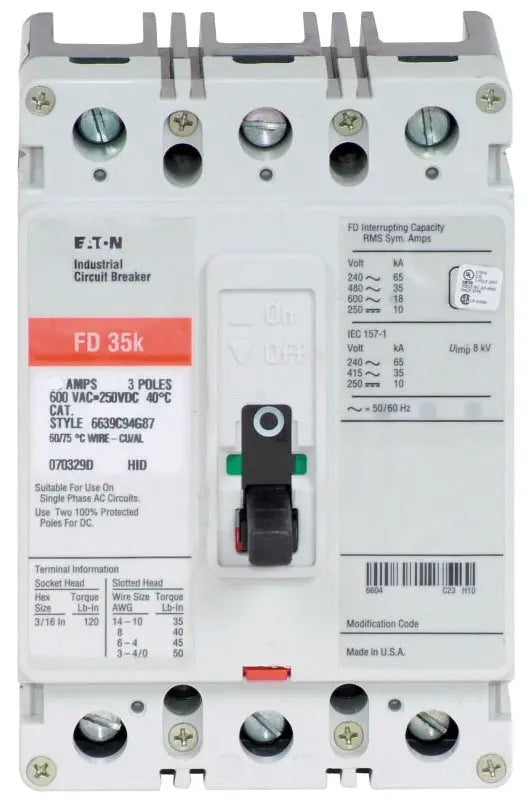

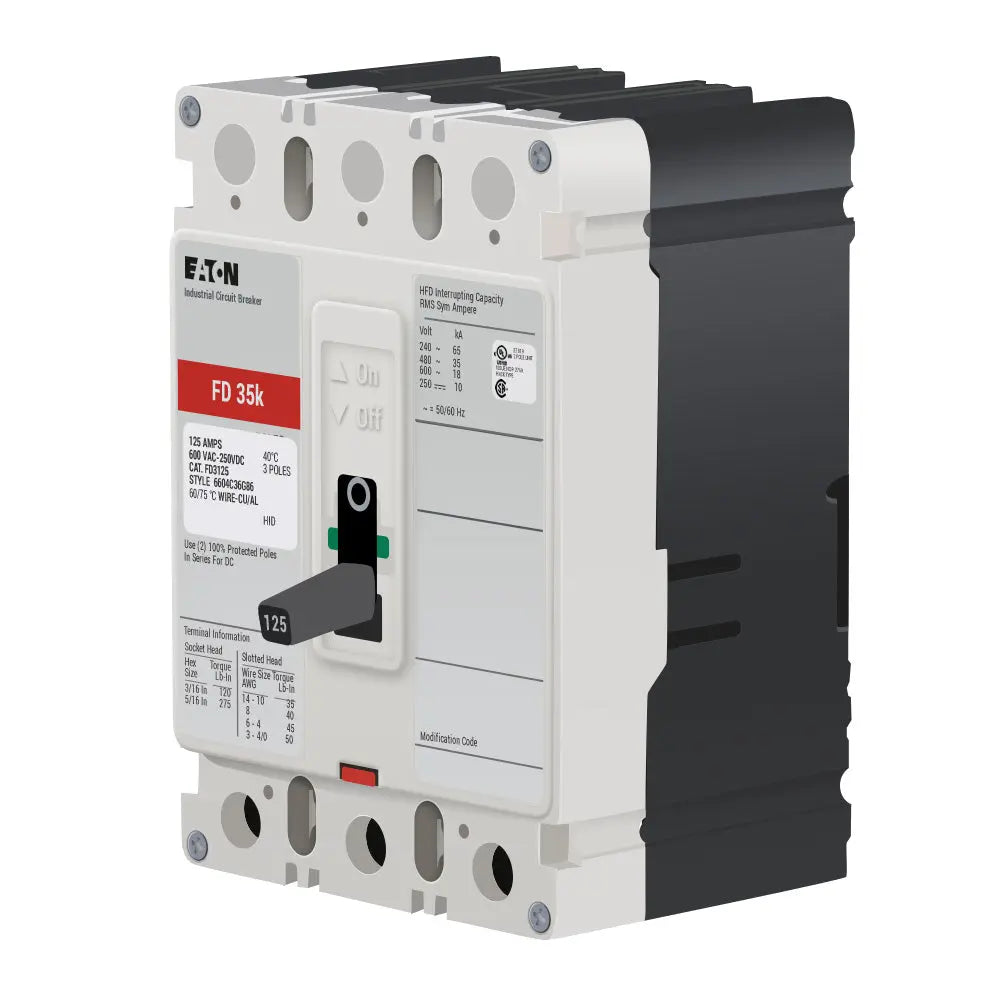

FD3125 is a Cutler Hammer FD Series 3-pole molded case circuit breaker rated for 125A at 600VAC, designed for reliable protection in commercial and industrial power distribution systems. This thermal magnetic circuit breaker features a robust F frame construction, bolt-on mounting, and is suitable for panelboard, switchboard, motor control center, and busway applications. It offers dependable performance with a 35kA interrupting rating at 480V and is UL Listed for safety and compliance.
- Part Number: FD3125
- Manufacturer: Cutler Hammer
- Series/Frame: FD Series, F Frame
- Amperage Rating: 125A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 35kA @ 480V
- Trip Type: Thermal Magnetic
- Certifications: UL Listed
- Application: Panelboard, Switchboard, MCC, Busway
- Wire Size: 4 to 4/0 AWG
Specifications
- Part Number: FD3125
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 225A/F
- Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 786679305782
- GTIN : 00786679305782
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards : CSA Certified, IEC Rated, UL Listed
- Certification : CSA Certified, IEC Rated, UL Listed
