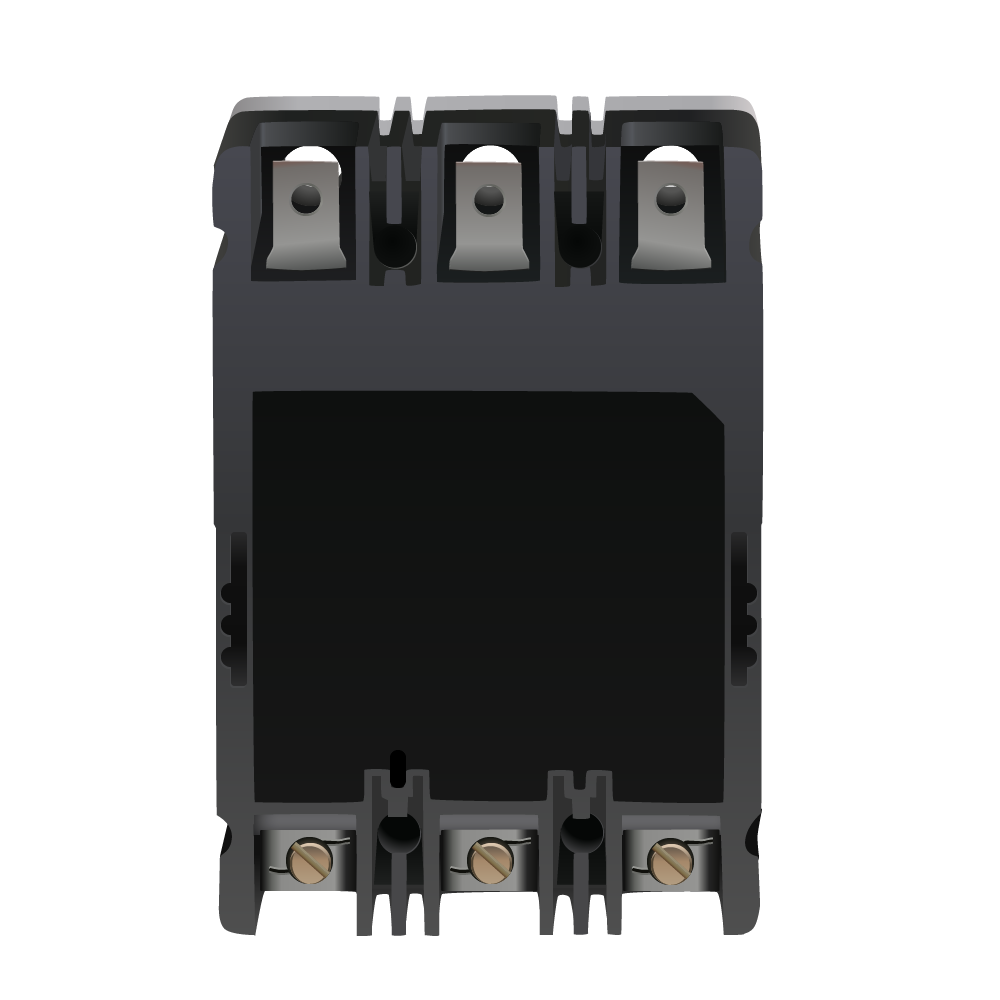

FD3110L - Cutler Hammer 110A 600V 3 Pole F-Frame Circuit Breaker

FD3110L

FD3110L is a 110 amp, 3 pole, 600 Volt circuit breaker from Cutler Hammer designed for reliable industrial and commercial power protection.FD3110L features an F-frame type with a thermal magnetic trip unit, feed-thru mounting, and a 35kA interrupting capacity at 480 VAC. It complies with UL standards and is suitable for motor protection, lighting, and general power distribution.

Key Specifications
• Amperage Rating: 110 A
• Voltage Rating: 600 Vac, 250 Vdc
• Poles: 3 Pole
• Frame Type: F-Frame
• Interrupting Capacity: 35 kA at 480 VAC, 65 kA at 240 VAC
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Mounting Type: Feed-Thru
• Frequency Rating: 50/60 Hz
• Dimensions: 6 in (H) x 4.13 in (W) x 3.38 in (D)
• Weight: Approximately 4.5 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3110L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679451762
• GTIN : 00786679451762
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
