FD3050 - Crouse-Hinds 50A 600VAC 3-Pole Molded Case Circuit Breaker Series C FD Frame

FD3050

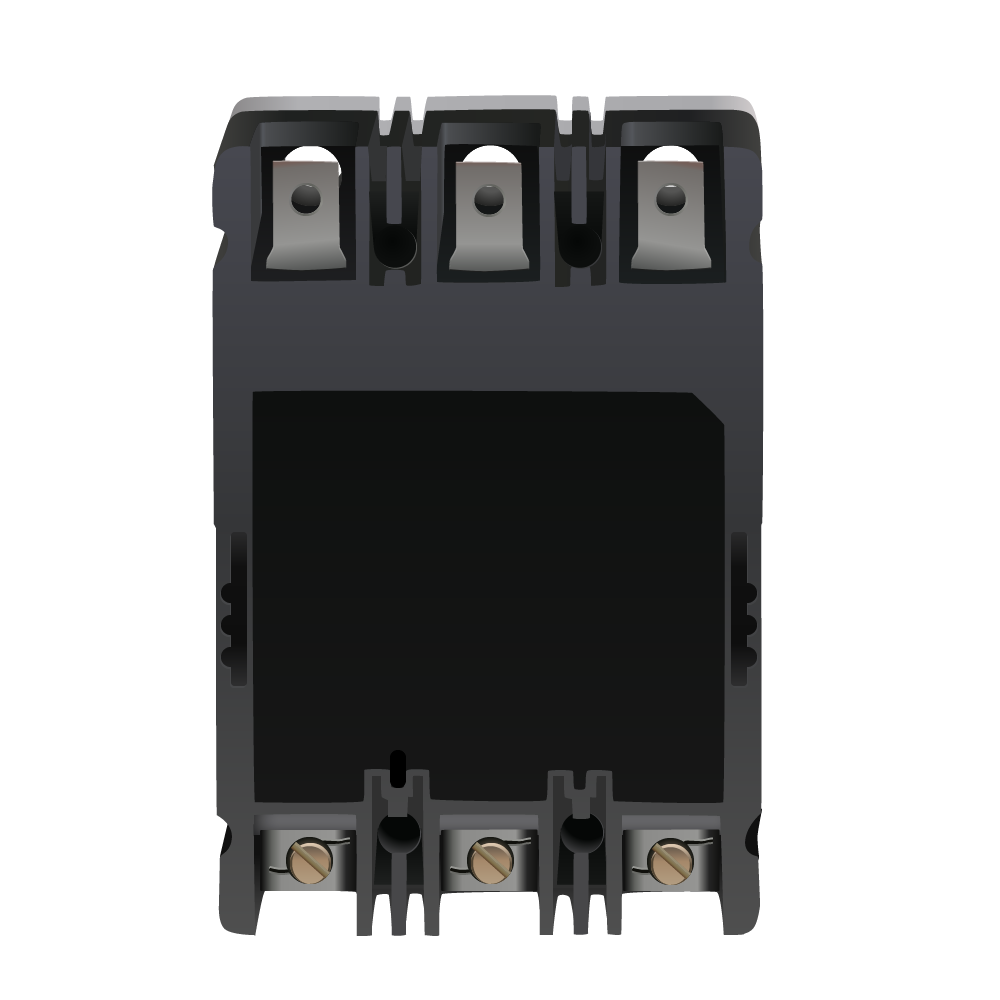

FD3050 is a Crouse-Hinds 50 Amp, 3-pole molded case circuit breaker designed for industrial power distribution applications.This Series C FD frame breaker features a thermal magnetic trip unit with fixed trip settings, suitable for panel or bolt-on mounting. It supports voltage ratings up to 600 VAC and 250 VDC, with an interrupting rating of 35kA at 480 VAC. The breaker is UL and CSA certified, ensuring compliance with industry safety standards.

• Amperage: 50 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Mounting Type: Panel mount / Bolt-on
• Interrupting Rating: 35kA at 480 VAC
• Series/Frame: Series C, FD Frame
• Trip Unit: Thermal Magnetic, Fixed Trip
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 6" H x 4.13" W x 3.38" D
• Application: Industrial circuit protection for overloads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3050
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679305690
• GTIN : 00786679305690
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
