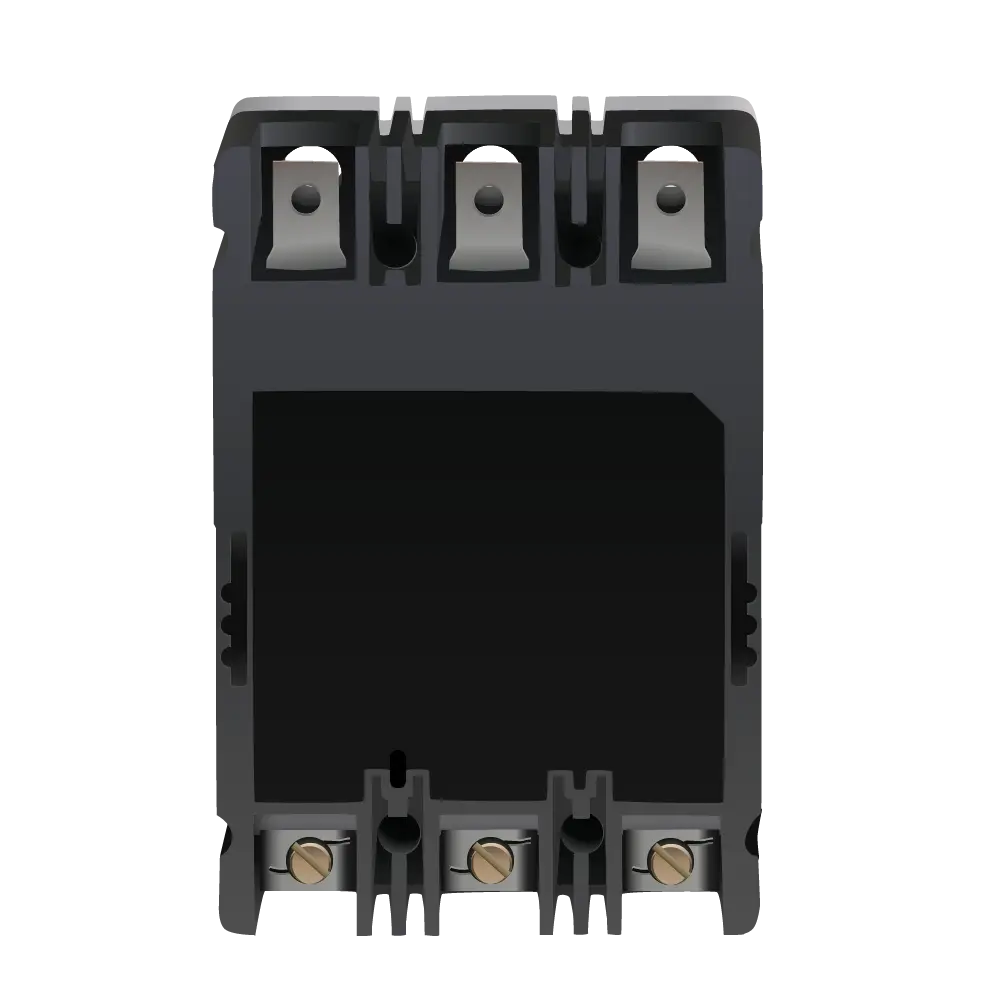

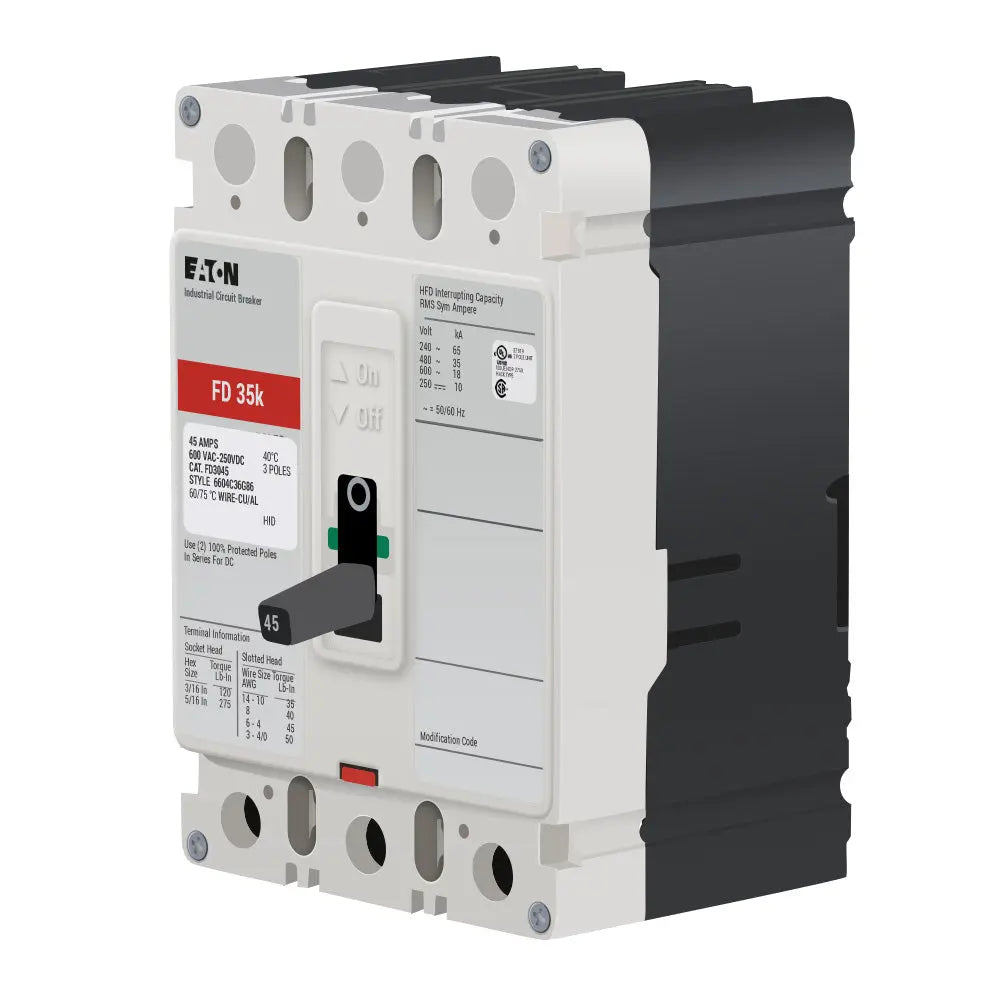

FD3045 - Cutler Hammer 45A 600V 3-Pole Molded Case Circuit Breaker Series C Frame F

FD3045

FD3045 is a Cutler Hammer molded case circuit breaker designed for 45 amp, 600 volt applications with 3 poles and Series C frame.This FD series circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It has a 35kA interrupt rating at 480V, feed-thru connection, and is rated for 3-phase power systems. The breaker is designed for free-standing mounting and complies with industry standards for safety and performance.

• Amperage: 45A
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Series/Frame: Series C, Frame F
• Interrupt Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Free Standing
• Connection: Feed-Thru
• Phase: 3
• Weight: Approx. 4.3 to 4.5 lbs
• Certifications: Meets industry standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3045
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 078667930554
• GTIN : 00786679305546
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.3
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
