Product Info
- Manufacturer:Cutler Hammer
Description

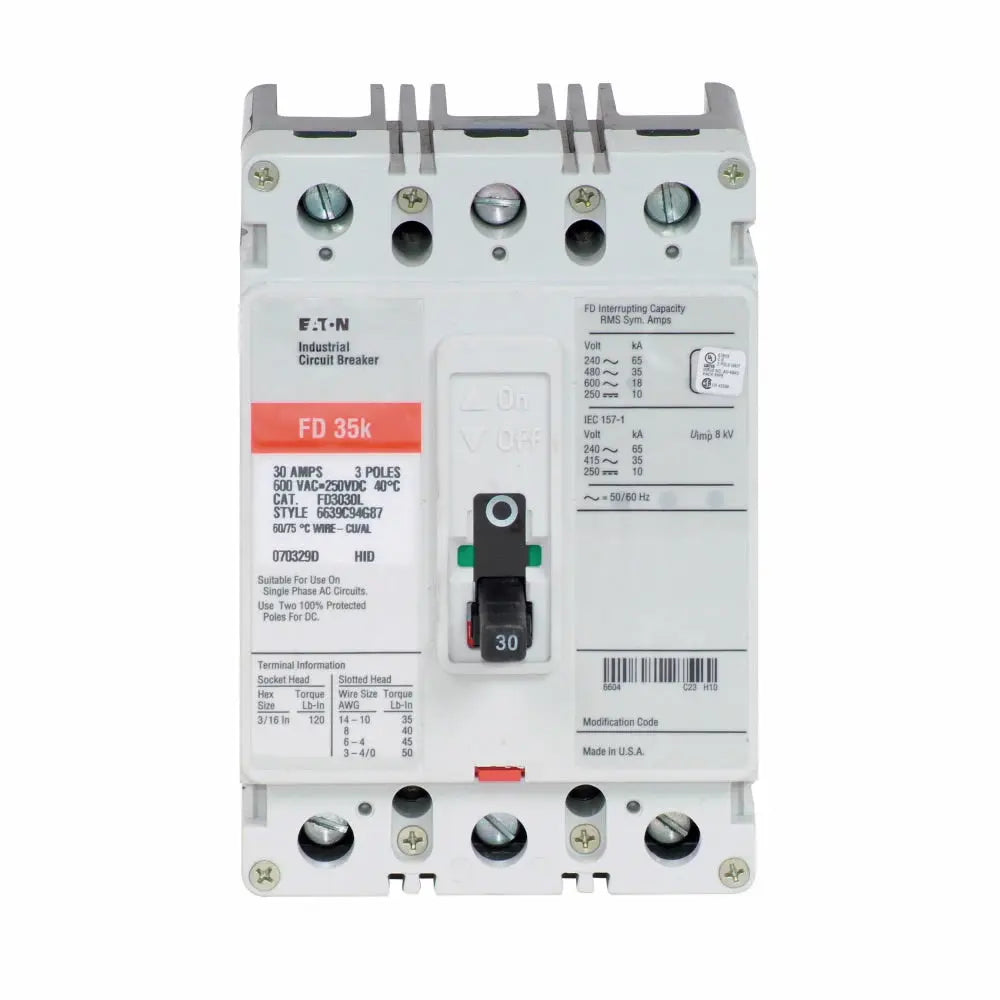

FD3030VW
FD3030VW is a Cutler Hammer (Eaton) Series C molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.
This thermal magnetic trip, 3-pole breaker features a 30A current rating, 600V AC voltage rating, and 250V DC rating. It is part of the F-Frame series, offers a 35kA interrupting capacity at 480V, and is panel-mounted with a non-interchangeable trip unit. The FD3030VW is UL listed and provides both long-time and instantaneous protection functions.
-
Key Specifications
- Part Number: FD3030VW
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 30A
- Voltage: 600V AC, 250V DC
- Poles: 3
- Mounting Type: Panel
- Interrupt Rating: 35kA at 480V
- Series/Frame: Series C, F-Frame
- Trip Unit: Thermal Magnetic, non-interchangeable
- Certifications: UL Listed
- Connection: Feed-thru
- Dimensions: 6" x 4.13" x 3.38"
- Weight: 5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FD3030VW
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
Product Data
- UPC : 78667907207
- GTIN : 00786679072073
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
