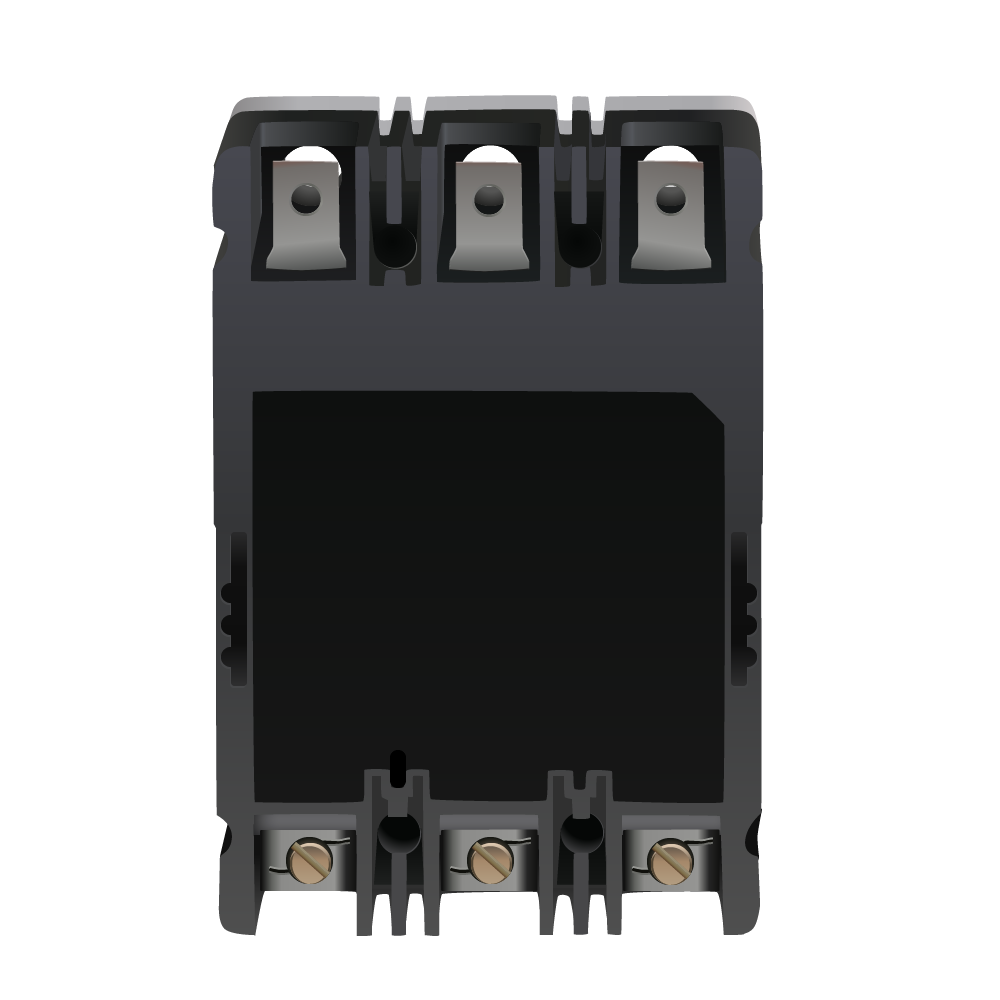

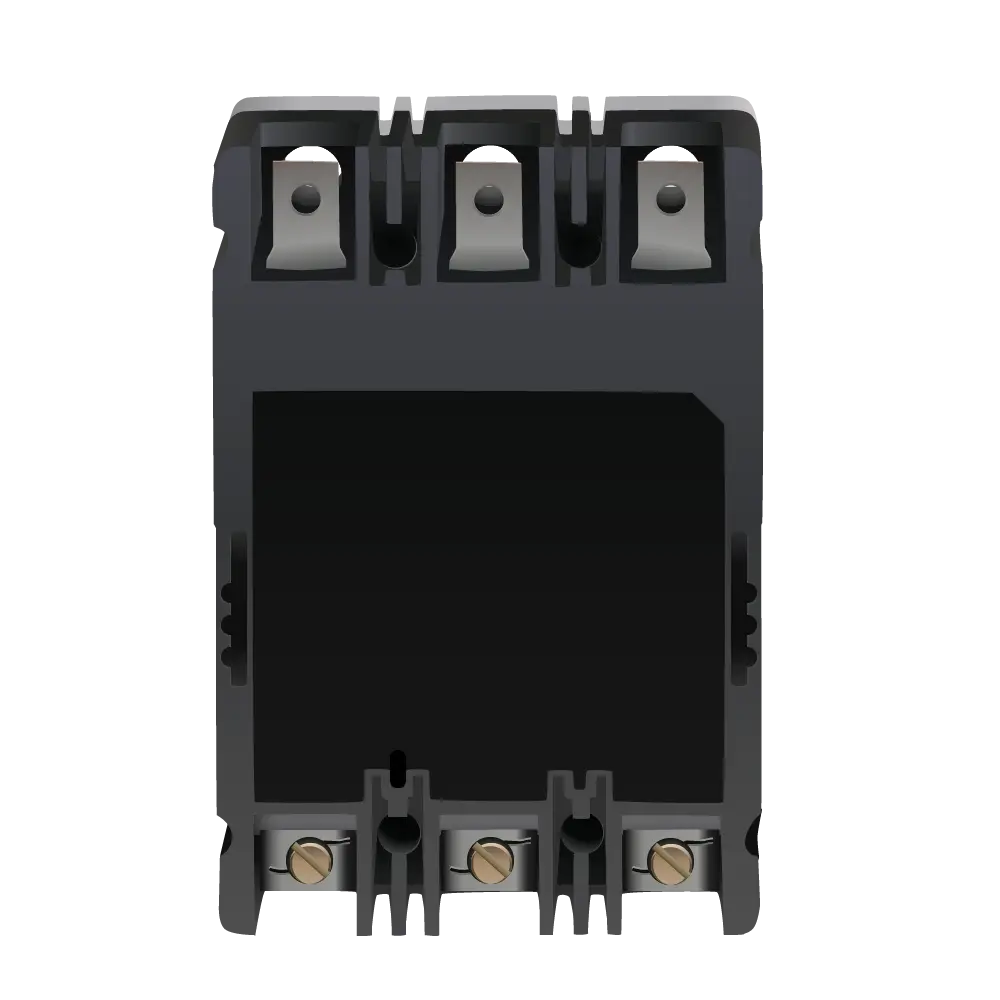

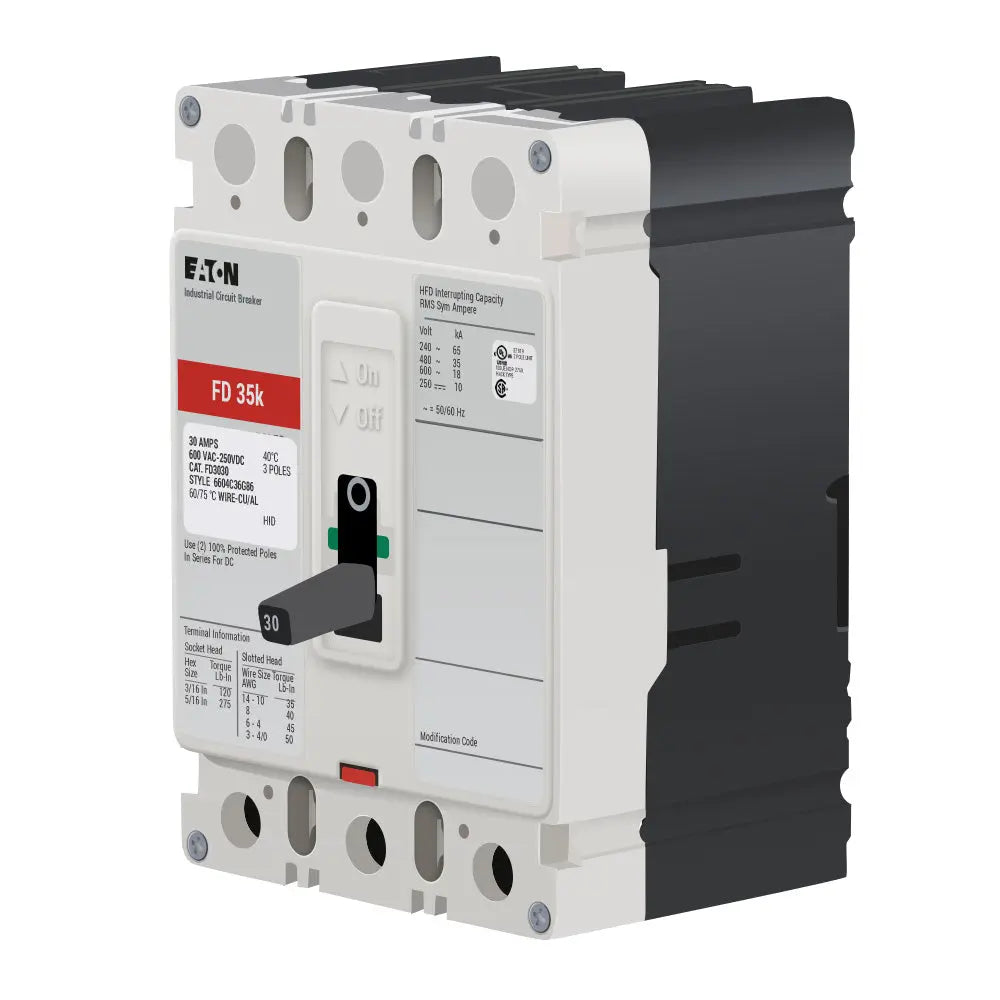

FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified

Save $2,055.61
SKU: FD3030-ReCert
Condition: Re-Certified
Price:
$325.32 $2,380.93
Stock:
13 in stock
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Cutler Hammer/ Westinghouse/ Eaton Bolt-On 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply
FD3030 - Eaton Series C 3 Pole 30A 600V F Frame Molded Case Circuit Breaker, 35kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mount, UL/CSA/CE Certified - Essential Electric Supply

Description

FD3030


FD3030 is an Eaton Series C molded case circuit breaker designed for reliable circuit protection in industrial applications.

This 3-pole, 30-ampere breaker features a 600VAC/250VDC rating, 35kA interrupting capacity at 480VAC, and a thermal magnetic fixed trip unit for overload and short-circuit protection. It is panel-mounted with bolt-on terminals, certified to UL, CSA, and CE standards, and built on the robust F frame for demanding environments.

Key Specifications

  • Part Number: FD3030
  • Manufacturer: Eaton
  • Amperage: 30A
  • Voltage: 600VAC, 250VDC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 35kA at 480VAC
  • Series/Frame: Series C, F Frame
  • Trip Unit: Fixed Thermal Magnetic (Non-Interchangeable)
  • Certifications: UL, CSA, CE
  • Connection: Feed-Thru
  • Application: Industrial circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: FD3030
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Series C
  • Type : FD
  • Voltage : 600
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Load Side Lug
  • Frame Size : 225A/F
  • Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 786679305652
  • GTIN : 00786679305652
  • Country of Origin : Dominican Republic
  • Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
  • Weight : 4.5
  • Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Standards : CSA Certified, IEC Rated, UL Listed
  • Certification : CSA Certified, IEC Rated, UL Listed
