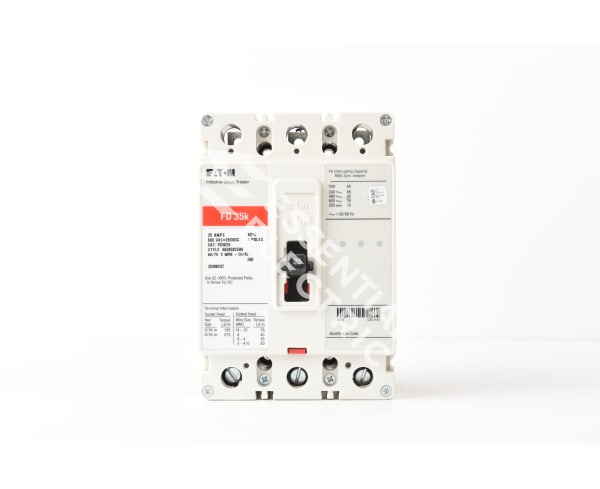

FD3025 - Cutler Hammer 25A 600V 3 Pole Molded Case Circuit Breaker F Frame

FD3025

FD3025 is a Cutler Hammer molded case circuit breaker rated for 25 amperes, 600 volts, and 3 poles, designed for bolt-on mounting.This FD series breaker is part of the Eaton Series C family with an F frame, featuring thermal magnetic trip units with long-time and instantaneous protection. It has a 35kA interrupting rating at 480V AC and is UL listed. The breaker includes line and load side lug terminals and is suitable for feed-thru connections.

• Amperage: 25A
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: F Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 480V AC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Series: Eaton Series C
• Terminal Type: Line and Load Side Lug Terminals
• UL Listed
• Connection: Feed-Thru
• Dimensions: Approx. 6 x 4.13 x 3.38 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3025
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679305645
• GTIN : 00786679305645
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.35
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
