Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

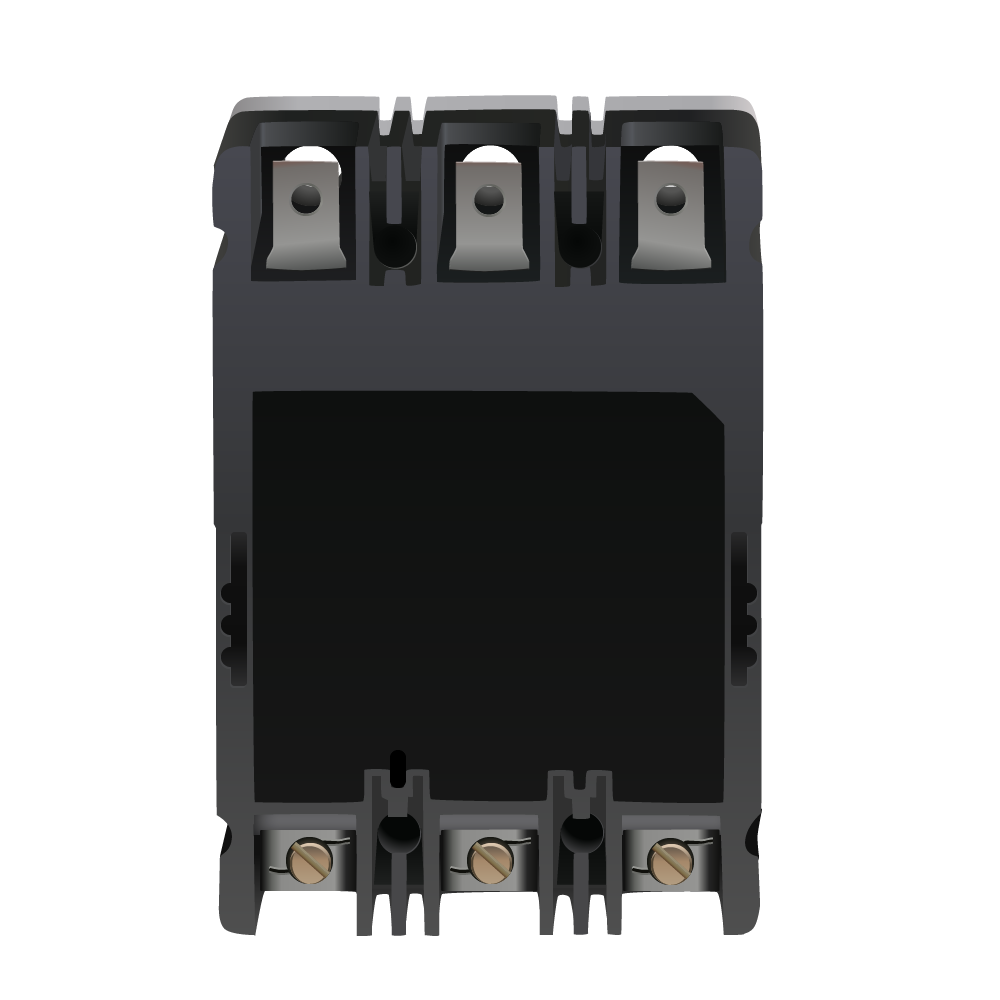

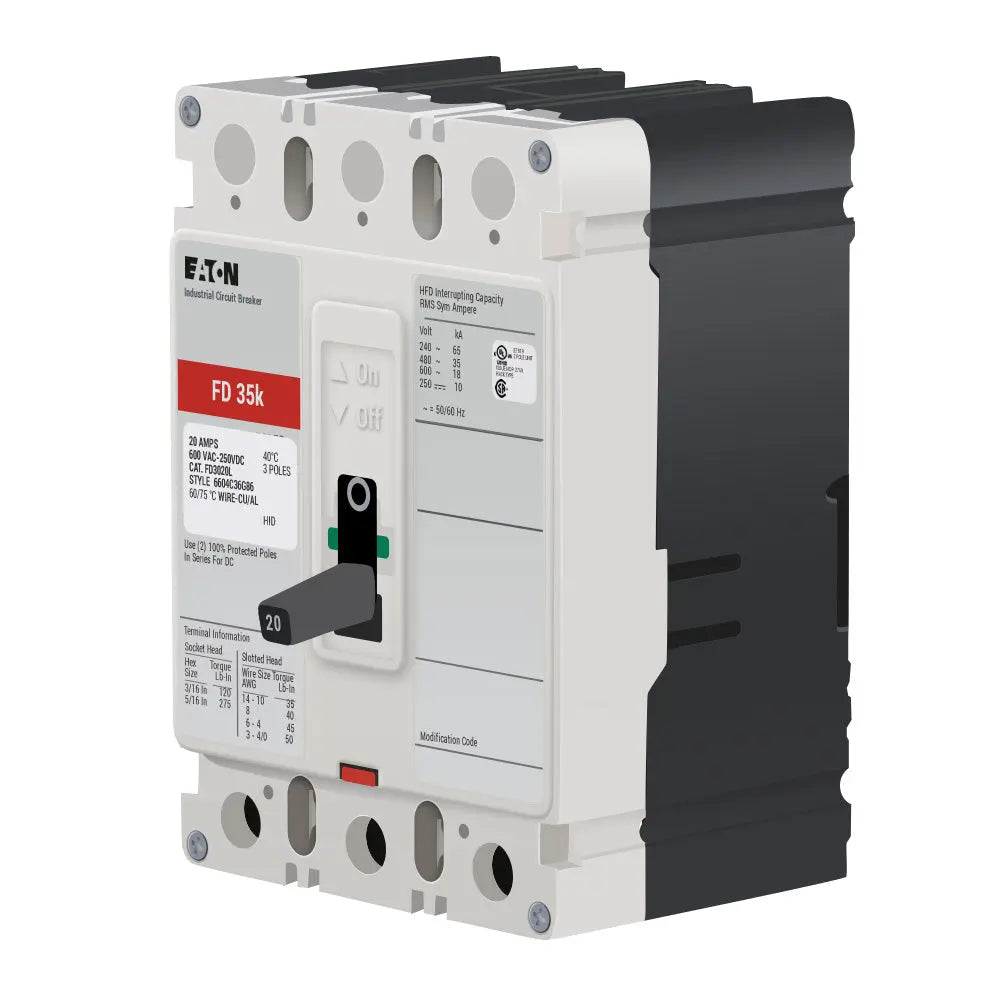

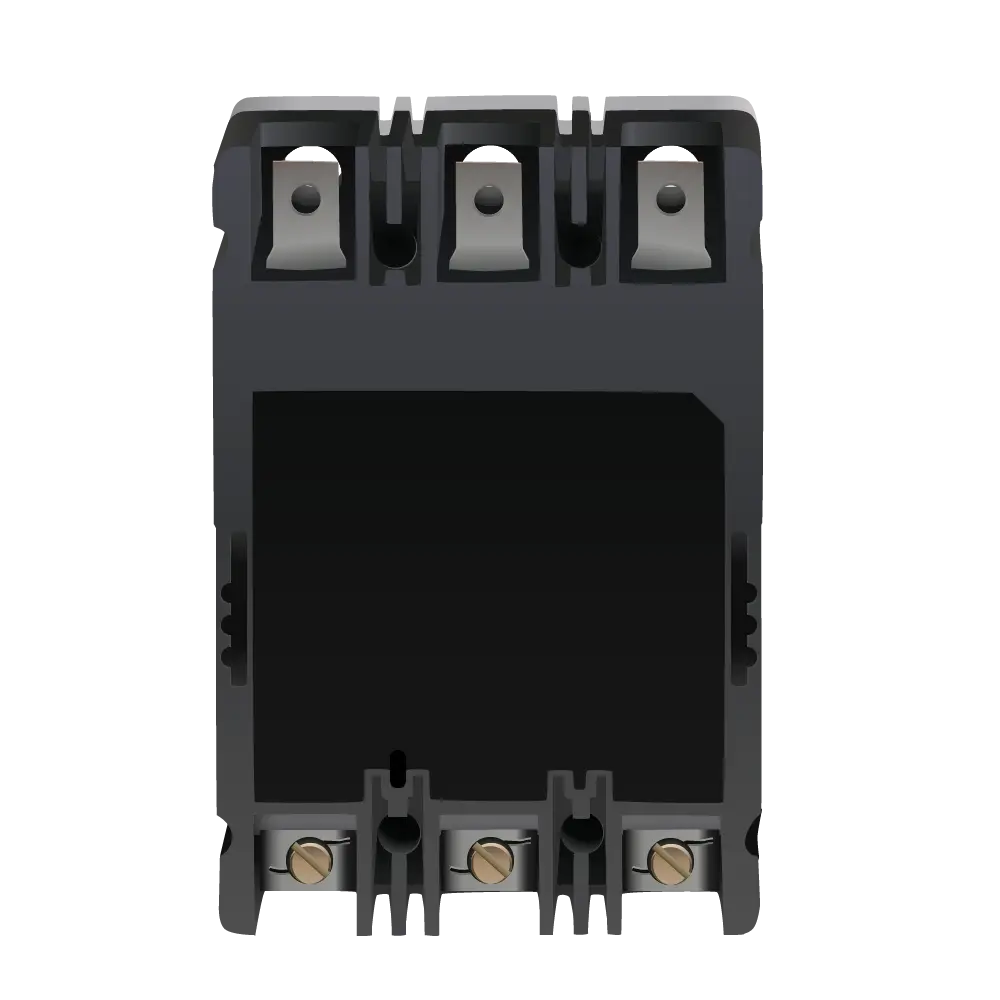

FD3020L
FD3020L is a 20 Amp, 600 VAC, 3-pole molded case circuit breaker from Eaton's Series C line designed for reliable circuit protection.This Eaton FD3020L breaker features a thermal magnetic trip unit (T186) with a fixed trip type, suitable for industrial and commercial applications. It supports a voltage rating of 600 VAC and 250 VDC, with an interrupt rating of 35 kA at 480 VAC and 65 kA at 240 VAC. The breaker is a complete frame type, designed for line and load terminals, and meets Eaton's high standards for durability and safety.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Trip Unit: Thermal Magnetic (T186)
- Interrupt Rating: 35 kA at 480 VAC, 65 kA at 240 VAC
- Series/Frame: Series C, F-frame
- Mounting Type: Complete molded case breaker
- Terminals: Line and load
- Product Dimensions: 6 in H x 4.13 in W x 3.38 in D
- Weight: 4.5 lb
- UPC: 786679305638
- Part Number: FD3020L
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- UPC : 786679305638
- GTIN : 00786679305638
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
