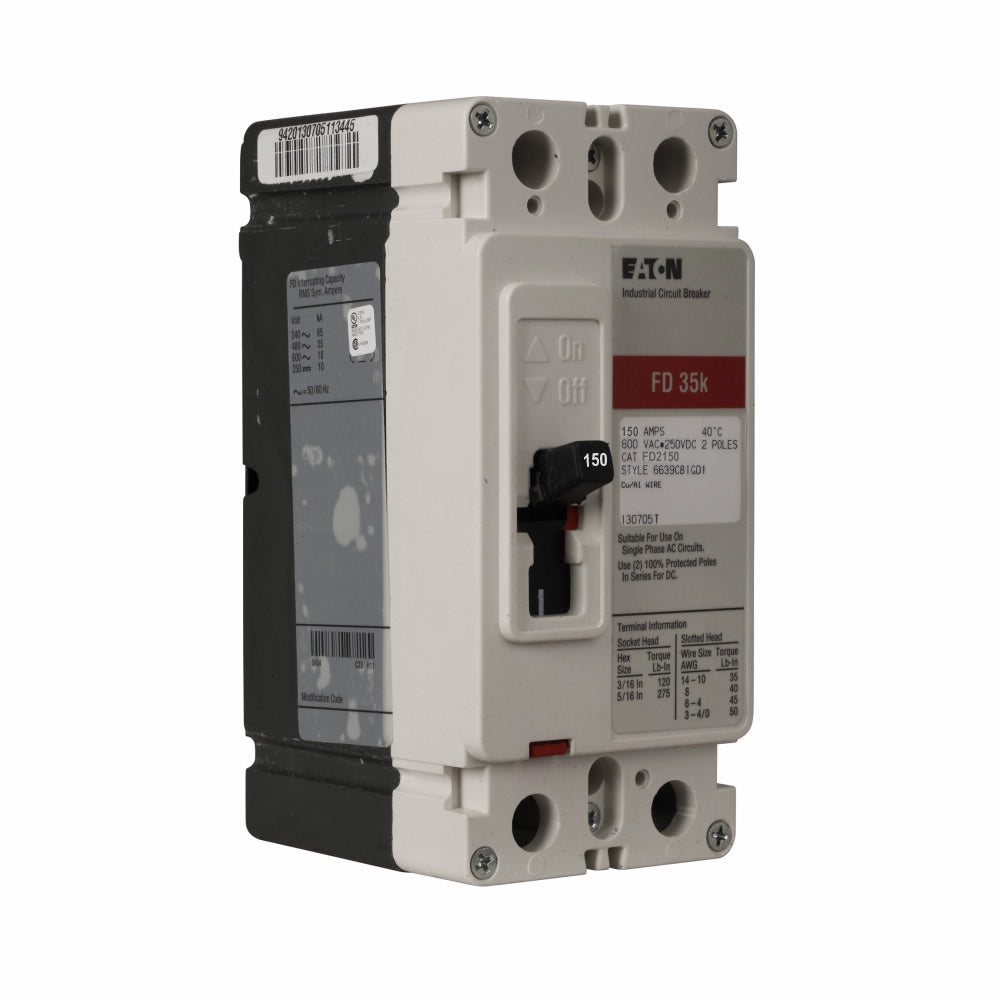

FD2150 - Westinghouse 150A 2P 600V Molded Case Circuit Breaker F-Frame Series C

FD2150

FD2150 is a Westinghouse 150 amp, 2-pole, 600 volt molded case circuit breaker designed for reliable power distribution protection.This FD2150 breaker features a thermal magnetic trip unit, F-frame Series C design, and is rated for 18 kiloamperes interrupting capacity at 600 volts AC. It is suitable for industrial and commercial applications requiring robust circuit protection with a 2-pole mounting configuration.

• Amperage: 150A
• Voltage Rating: 600V AC
• Number of Poles: 2
• Interrupting Rating: 18 kA at 600V
• Frame: F-Frame
• Series: Series C
• Trip Unit: Thermal Magnetic
• Mounting Type: Molded Case
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD2150
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679312322
• GTIN : 00786679312322
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 5.2 in (Length/Depth x Height x Width)
• Weight : 2.95
• Certification : UL Listed
