2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FCL34100

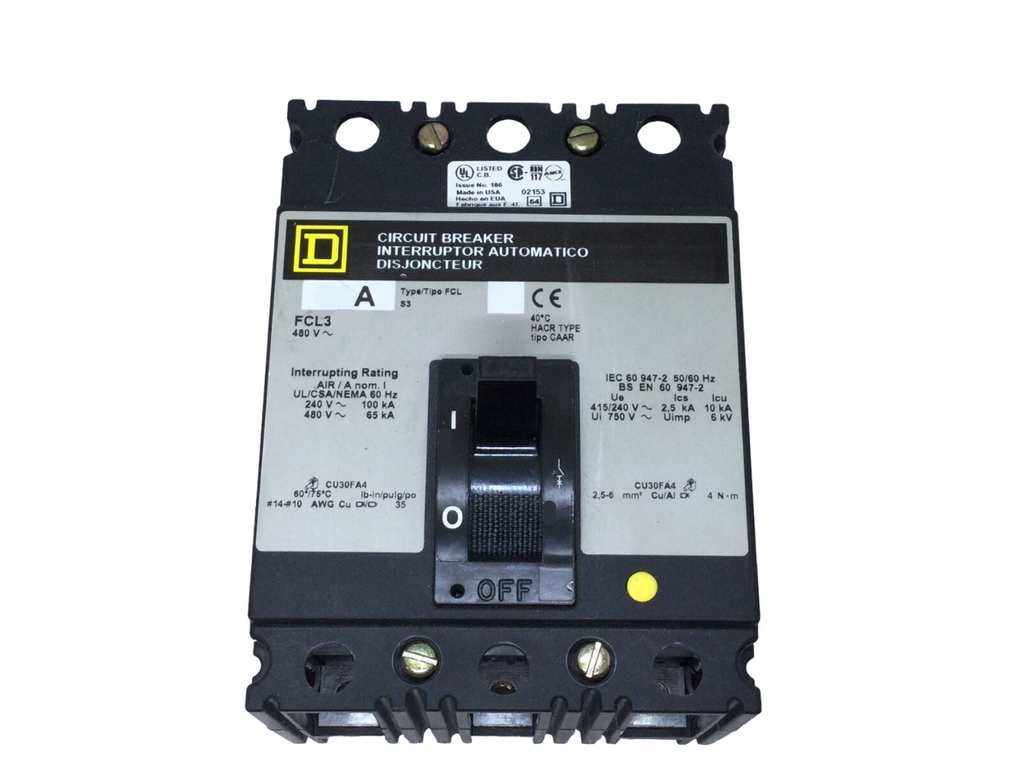

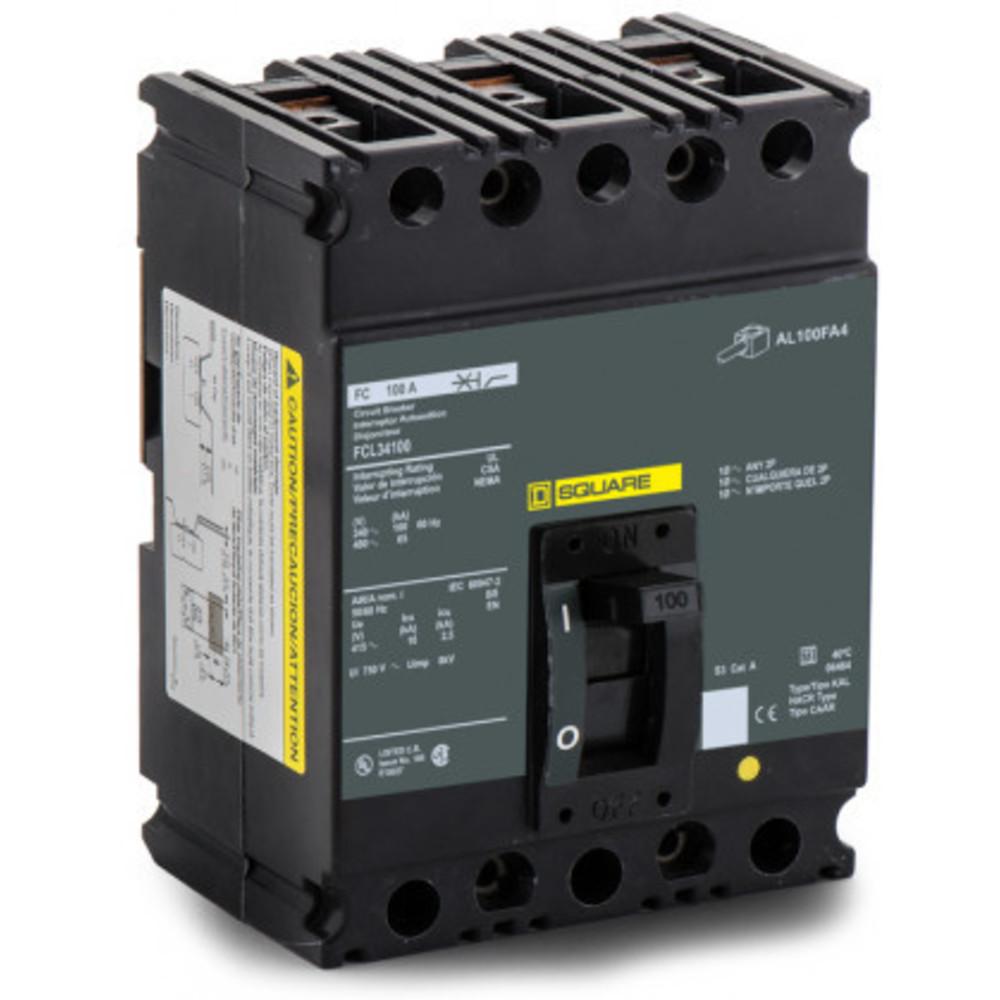

FCL34100 is a Square D 3 pole, 100 amp, 480 volt molded case circuit breaker designed for reliable industrial and commercial power protection.This FCL series breaker features a bolt-on mounting type and thermal magnetic trip unit, providing dependable overload and short circuit protection. It has a high interrupting rating of 65kA at 480VAC and 100kA at 240VAC, making it suitable for demanding electrical systems. The breaker includes line and load side lug terminals with feed-thru connection capability and is UL, CSA, and CE certified.
- Manufacturer: Square D
- Part Number: FCL34100
- Frame Type: FCL
- Amperage: 100A
- Voltage Rating: 480VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 480VAC, 100kA at 240VAC
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Connection Type: Feed-Thru with line and load side lugs
- Certifications: UL, CSA, CE
Specifications
- Part Number: FCL34100
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FCL Series
- Type : FCL
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901852421
- Weight : 7
