Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FCL34070

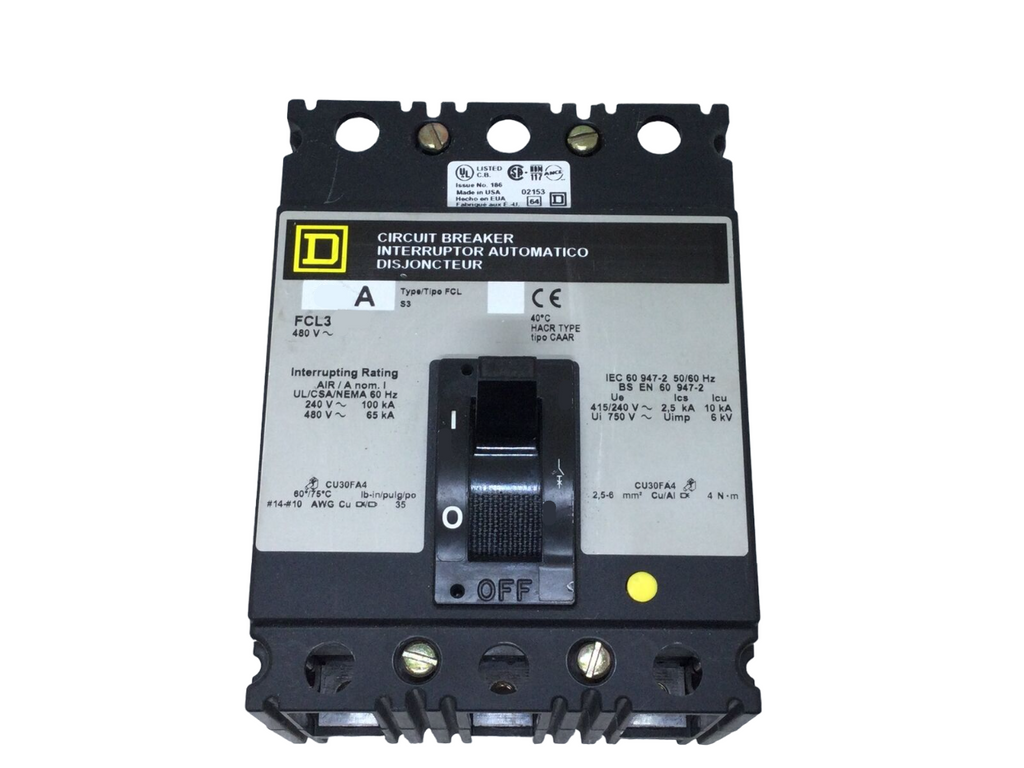

FCL34070 is a 3 pole, 70 amp, 480 volt molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This Square D FCL34070 circuit breaker features a 3 pole configuration with a 65kA interrupting rating at 480V. It uses a thermal magnetic trip unit with long-time and instantaneous trip functions. The breaker has a feed-thru connection type with line and load side lug terminals and is built on the FCL frame. It is UL and CSA certified for industrial and commercial applications.
- Manufacturer: Square D
- Part Number: FCL34070
- Amperage: 70 Amps
- Voltage Rating: 480 VAC
- Poles: 3
- Frame Type: FCL
- Interrupting Rating: 65kA at 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection Type: Feed-Thru
- Terminal Type: Line and Load Side Lug
- Certifications: UL, CSA
- Mounting: Bolt-on
Specifications
- Part Number: FCL34070
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FCL Series
- Type : FCL
- Voltage : 480
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901852322
- Weight : 7
