Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FCL34040

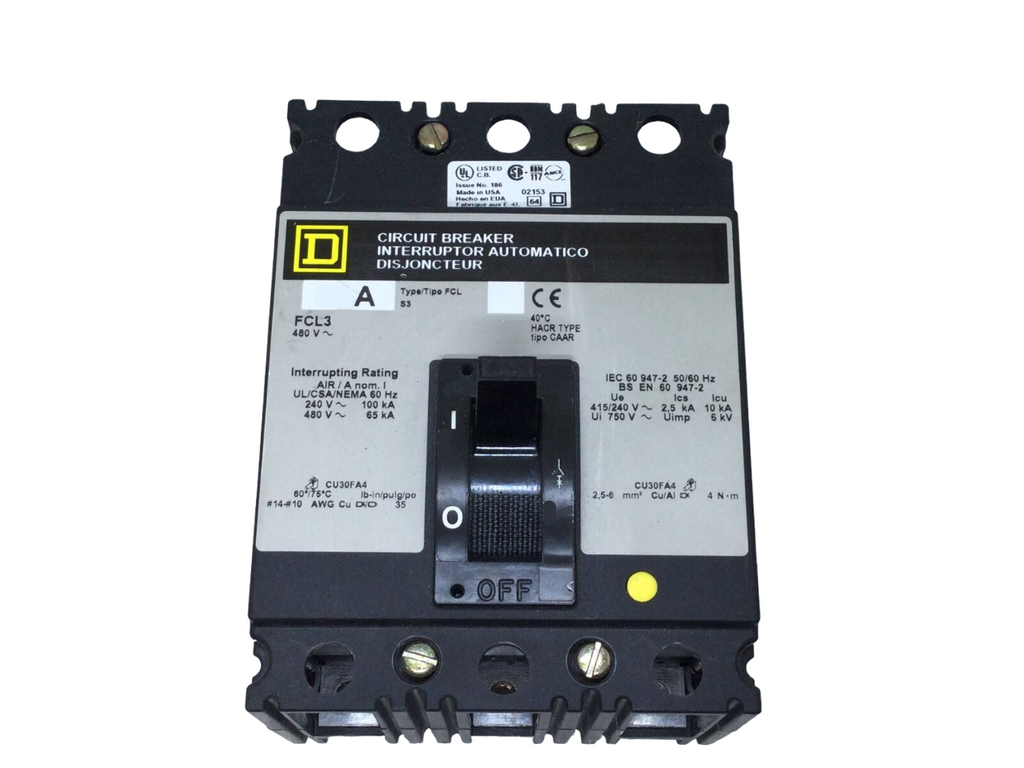

FCL34040 is a 40 Amp, 3 Pole molded case circuit breaker from Square D designed for 480VAC applications with bolt-on mounting.This thermal magnetic circuit breaker features a 65kA interrupting rating at 480V, feed-thru connection type, and includes long-time and instantaneous trip functions. It is UL, CSA, and CE certified and uses line and load side lug terminal connections.
- Manufacturer: Square D
- Part Number: FCL34040
- Amperage: 40 Amps
- Voltage: 480VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kAIC at 480V
- Frame Type: FCL
- Connection Type: Feed-Thru
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
- Certifications: UL, CSA, CE
- Terminal Connection: Line and Load Side Lug
Specifications
- Part Number: FCL34040
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FCL Series
- Type : FCL
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00653829043064
- Weight : 7
