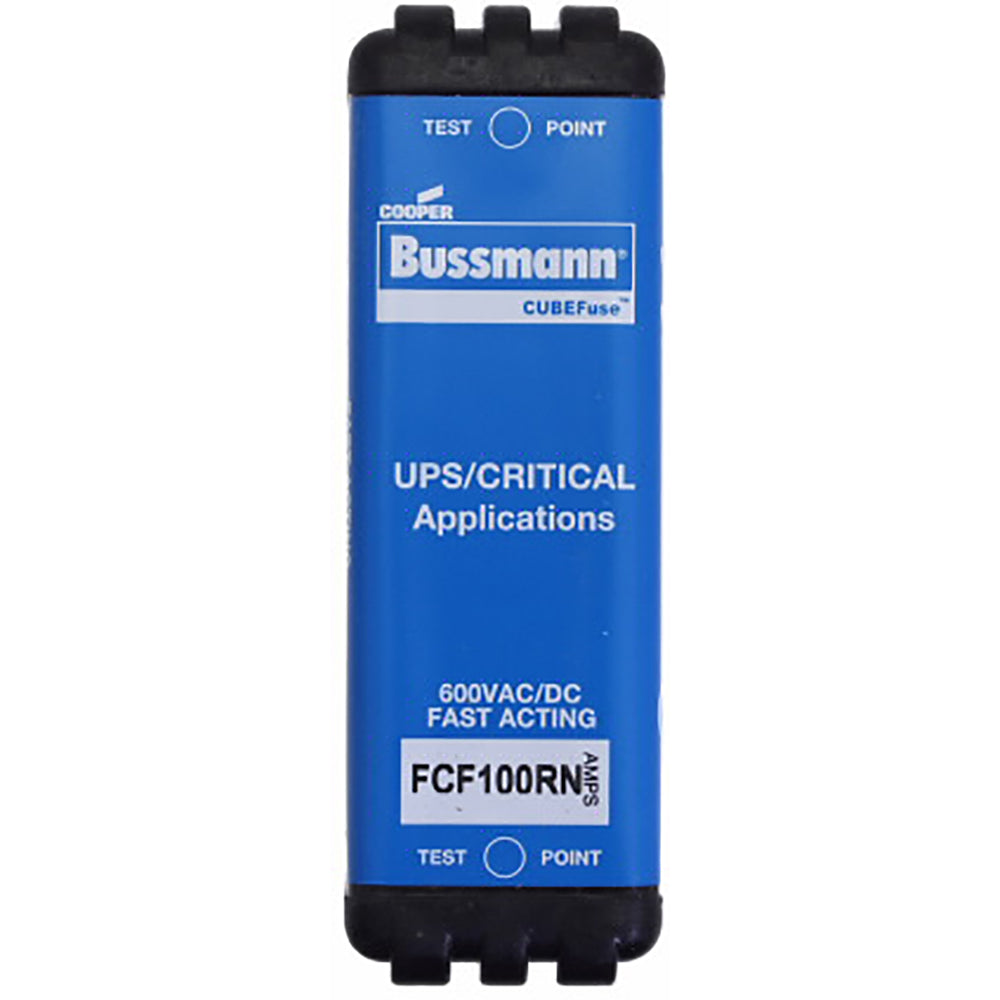

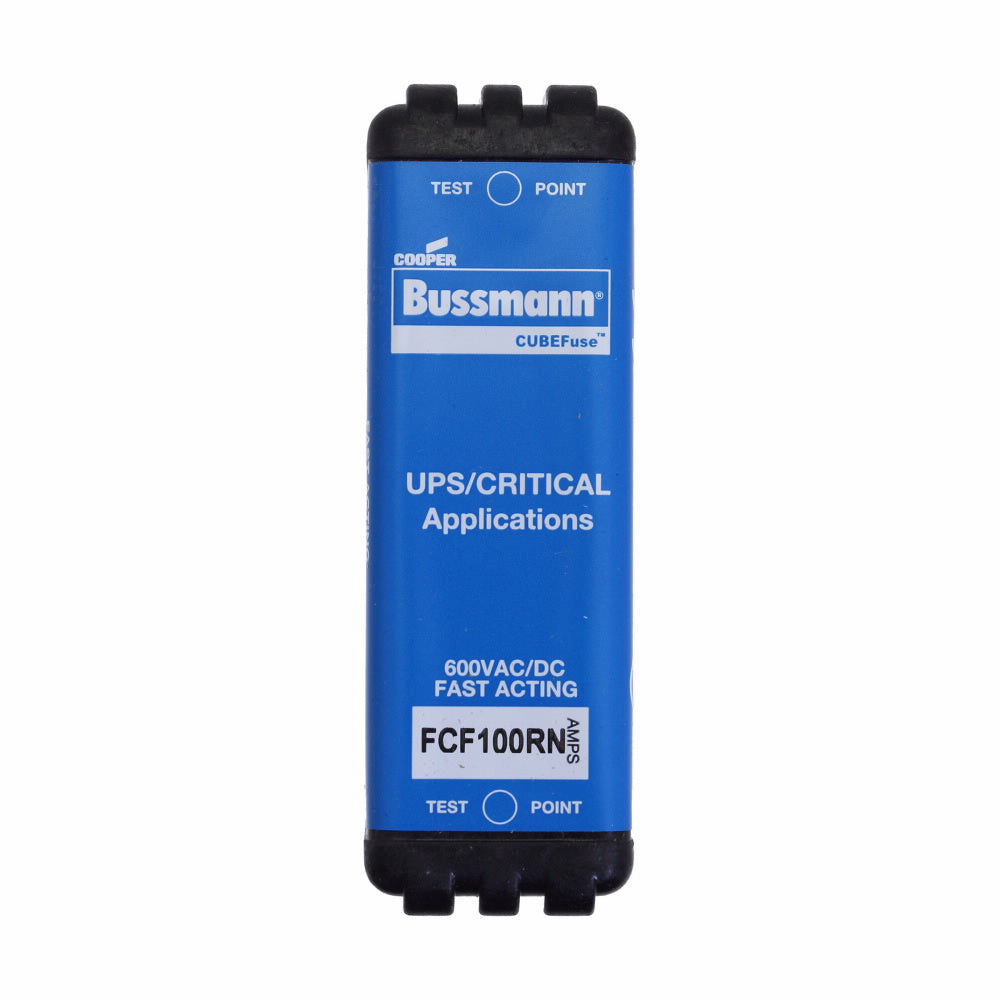

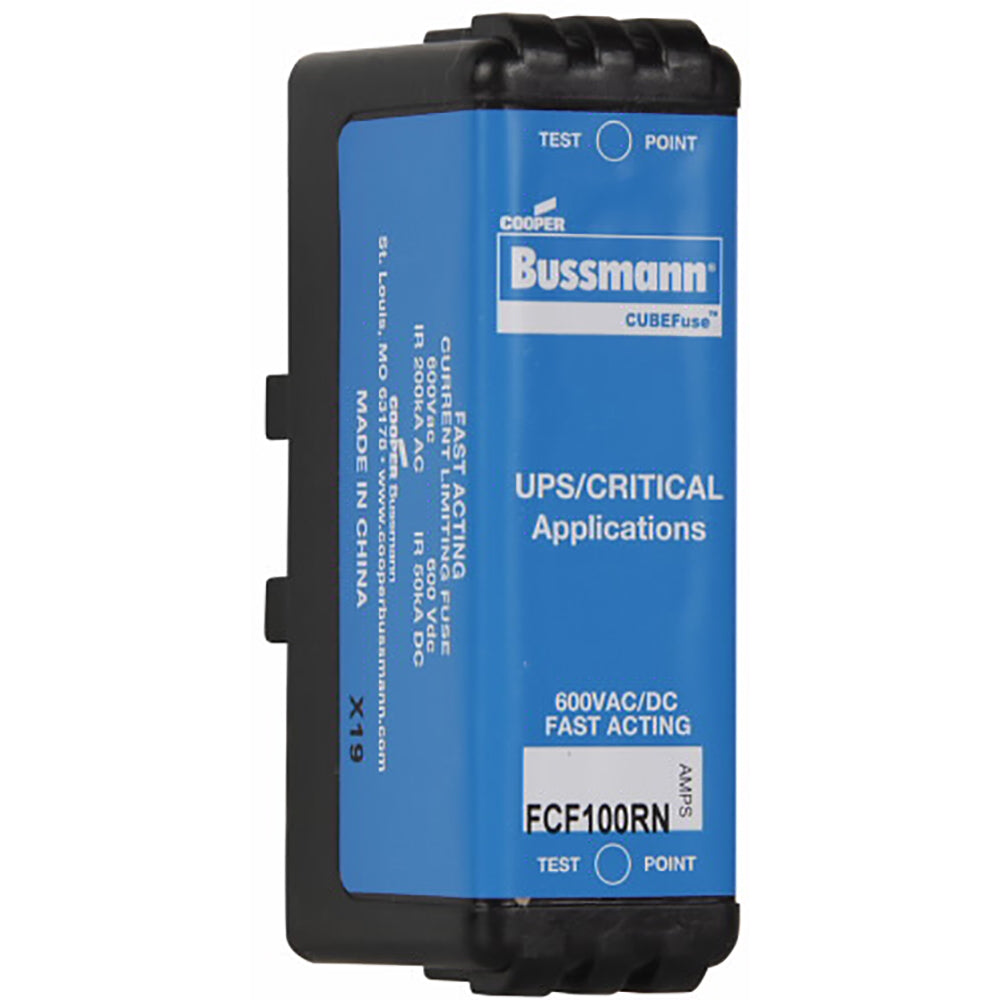

FCF100RN - Eaton Bussmann 100A 600VAC/DC Fast-Acting UL Class CF CUBEFuse Rectangular Blade Fuse

FCF100RN

FCF100RN is a Bussmann series fast-acting UL Class CF CUBEFuse designed for reliable circuit protection in critical and UPS applications. This rectangular blade fuse offers a compact footprint and finger-safe construction for safe handling and installation. The FCF100RN provides fast-acting protection with a current rating of 100A and voltage ratings up to 600VAC and 600VDC. It features a high interrupting rating, low let-through current, and no venting of arc or molten metal during operation. The fuse is constructed with electroless tin-plated copper alloy terminals for reliable conductivity and durability. It is suitable for use in a wide range of industrial and commercial environments, with an operating temperature range from -40°C to 80°C.

• Current Rating: 100A
• Voltage Rating: 600VAC, 600VDC
• Interrupting Rating: 200kA (UL 70-100A, CSA 1-100A)
• Series/Frame: Bussmann CUBEFuse, UL Class CF
• Mounting Type: Blade end
• Response Time: Fast-acting
• Power Loss: 11.50W at rated current
• Operating Temperature: -40°C to 80°C
• Terminal Material: Electroless tin-plated copper alloy
• Application: Critical/UPS
• Footprint: Compact, finger-safe design
• Standards: UL Class CF

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FCF100RN
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : FCF
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Connection : Finger-Safe
• Class Rating : CF
• Velocity : Fast - Acting

Product Data

• UPC : 05171236257
• GTIN : 00051712362573
• Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.284
