Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBV26TE030RV

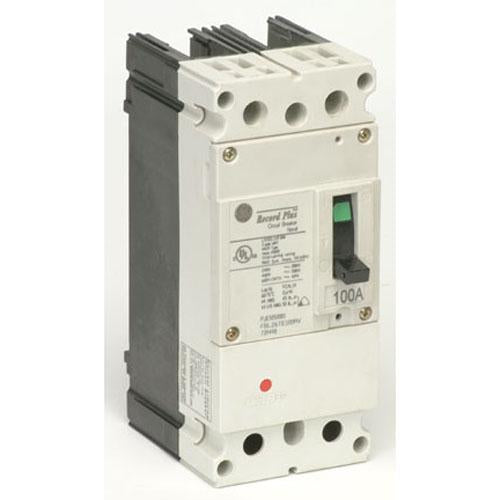

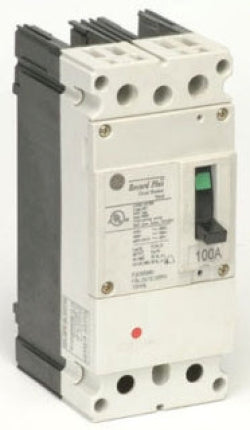

FBV26TE030RV is a General Electric 2 pole molded case circuit breaker with a 30 amp rating and 600 volt AC capacity designed for bolt-on mounting.This circuit breaker features a thermal magnetic trip unit within the FB100 frame type, providing reliable overcurrent protection with a standard interrupt rating of 150kA at 480V. It is suitable for single-phase applications and CSA certified for safety compliance.
- Manufacturer: General Electric
- Part Number: FBV26TE030RV
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Poles: 2
- Frame Type: FB100
- Mounting Type: Bolt-On
- Interrupt Rating: 150kA @ 480V
- Trip Unit: Thermal Magnetic
- Phase: Single Phase
- Certifications: CSA Approved
Specifications
- Part Number: FBV26TE030RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBV
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 150kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164394504
- GTIN : 00783164394504
- Dimensions : Depth / Length 8.750 in X Height 5.000 in X Width 3.000 in
- Weight : 3
- Wire Size : AWG 10 to 4 AWG, Cu/Al
