Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN36TE070R2

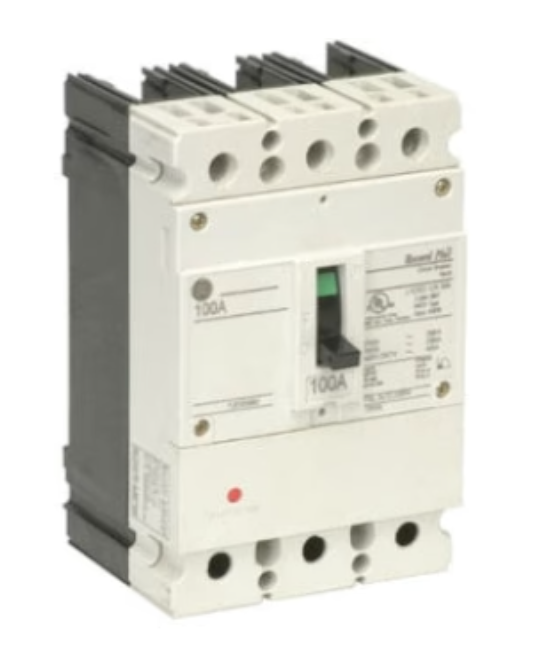

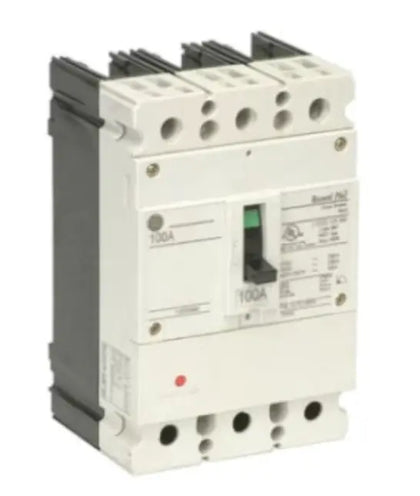

FBN36TE070R2 is a General Electric molded case circuit breaker designed for industrial and commercial power distribution applications. This thermal magnetic breaker features a 3-pole configuration with bolt-on connection type, suitable for panel integration in standard electrical systems.Key Specifications
- Amperage: 70 Amperes
- Voltage Rating: 600 VAC
- Poles: 3
- Connection Type: Bolt-On
- Interrupting Rating: 65 kA at 480V
- Trip Type: Thermal Magnetic
- Frame Size: FBN36
- Weight: 2.75 lbs
- UL Listed: UL489
Specifications
- Part Number: FBN36TE070R2
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164336573
- Dimensions : Depth / Length 8.750 in X Height 4.750 in X Width 4.500 in
- Weight : 4
