2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN36TE050RV

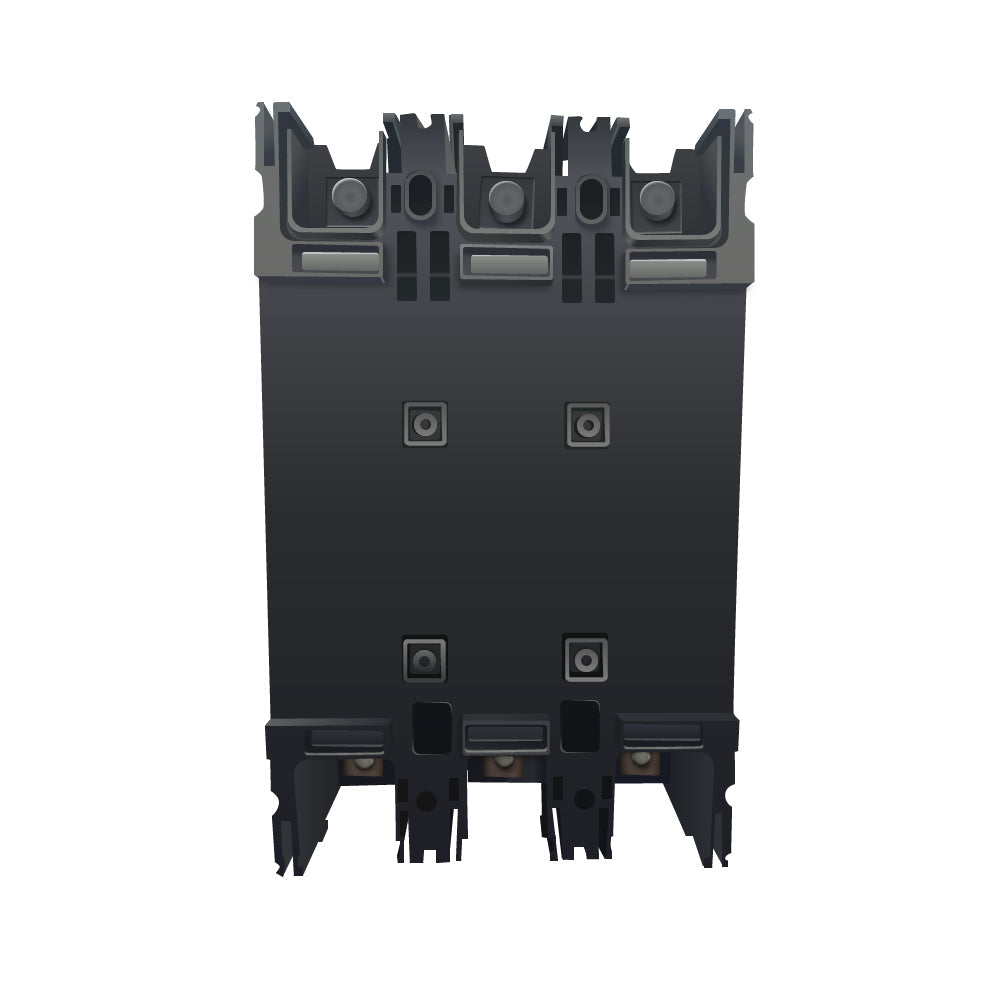

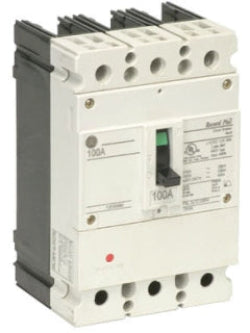

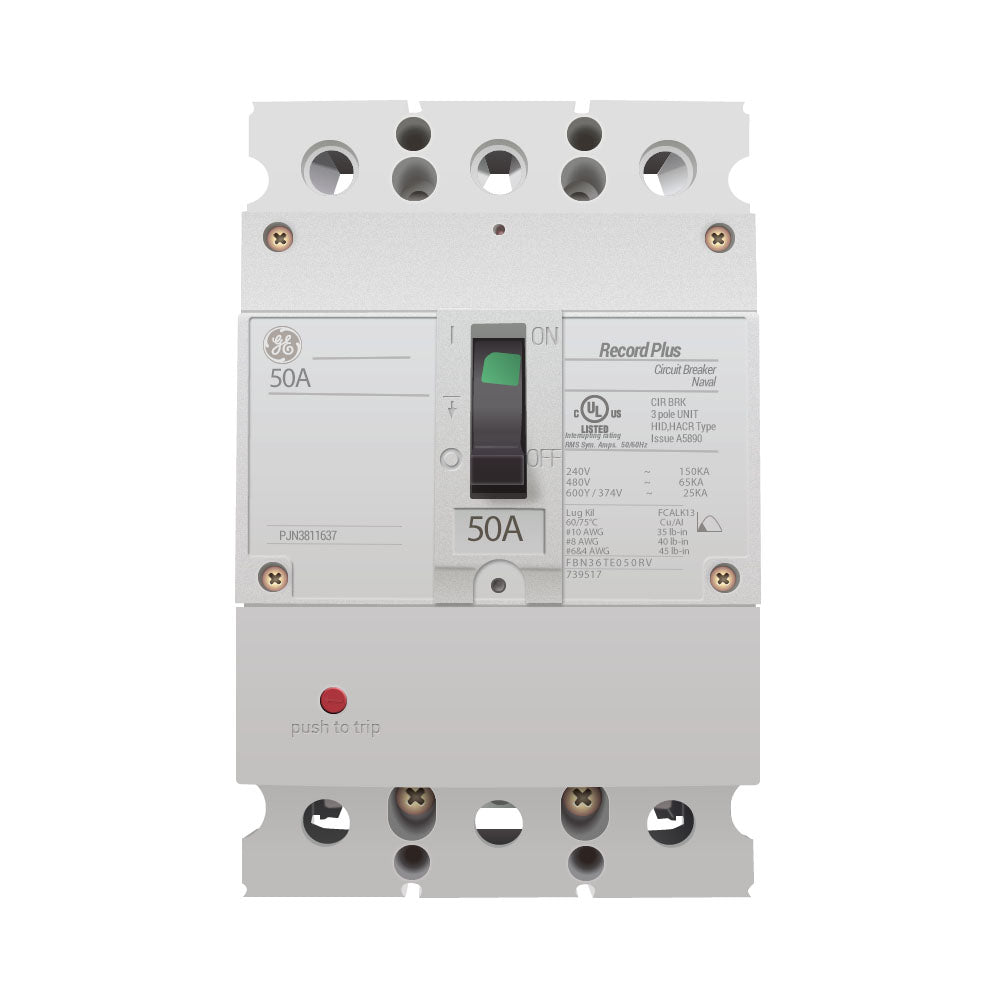

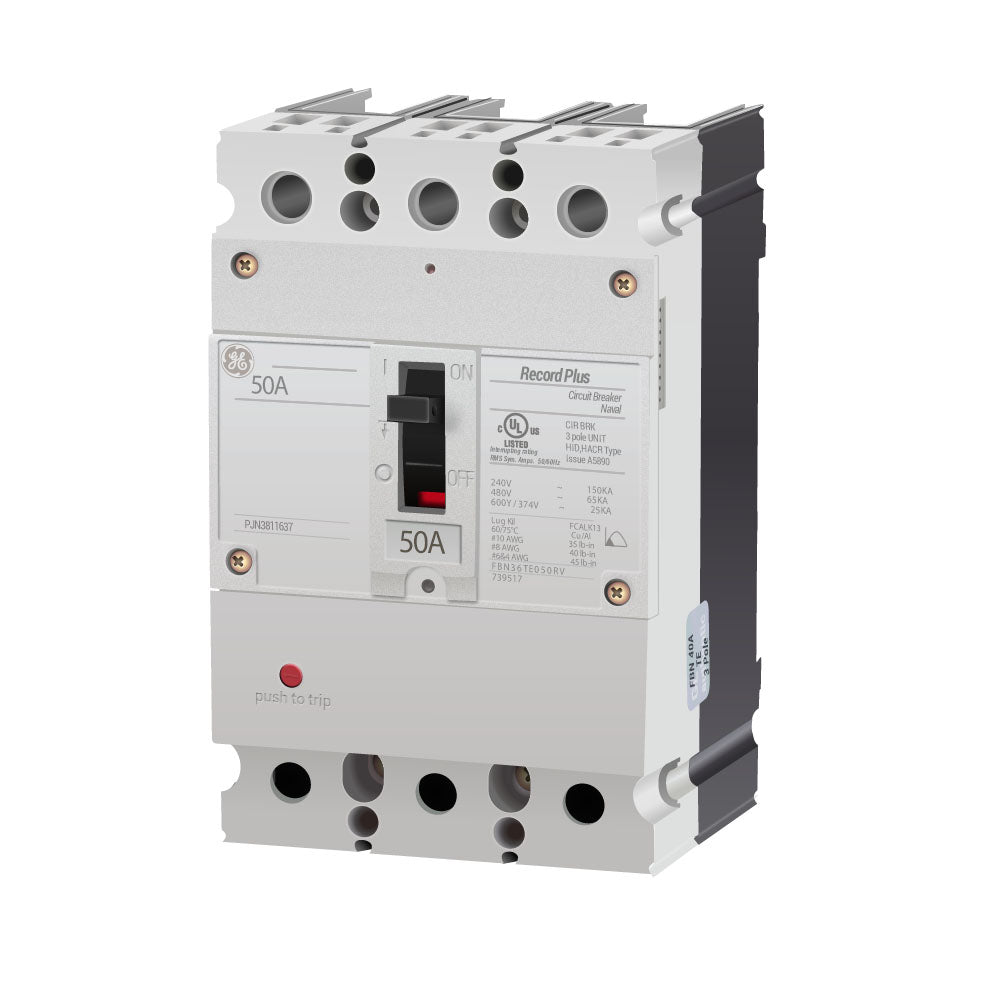

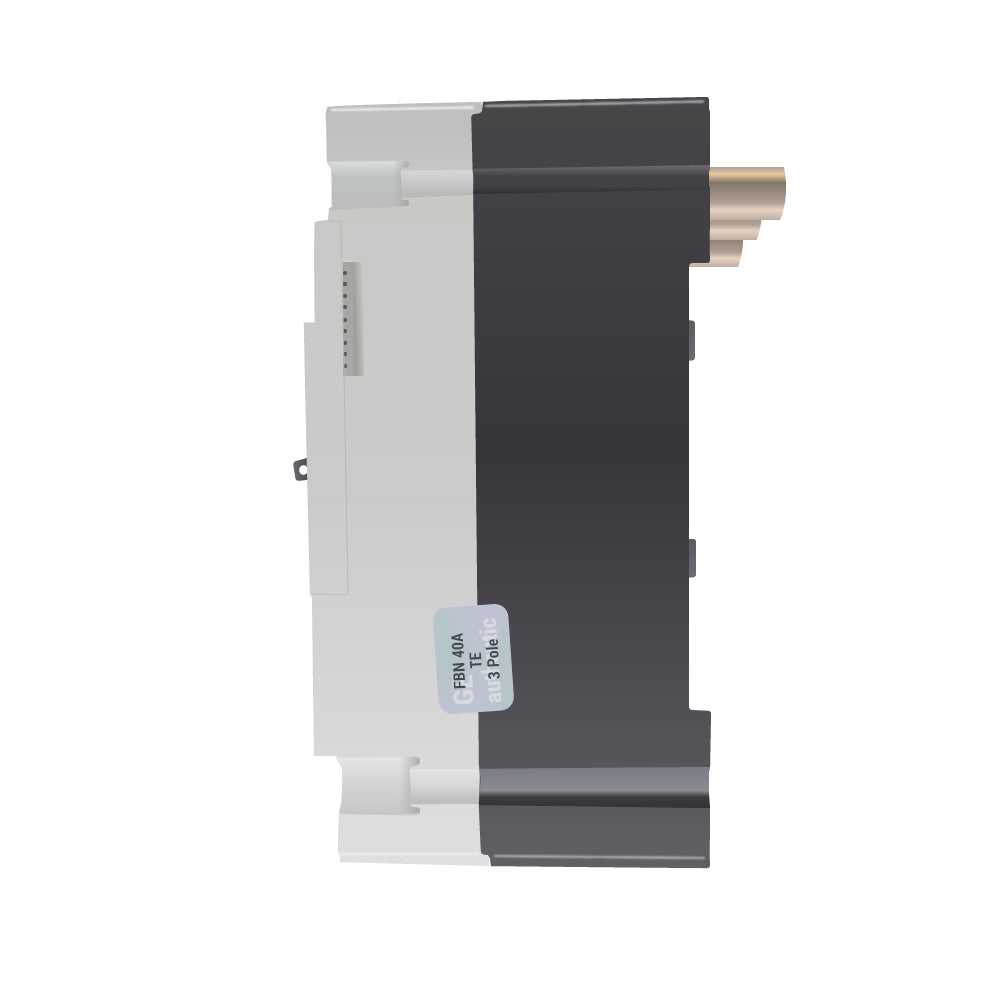

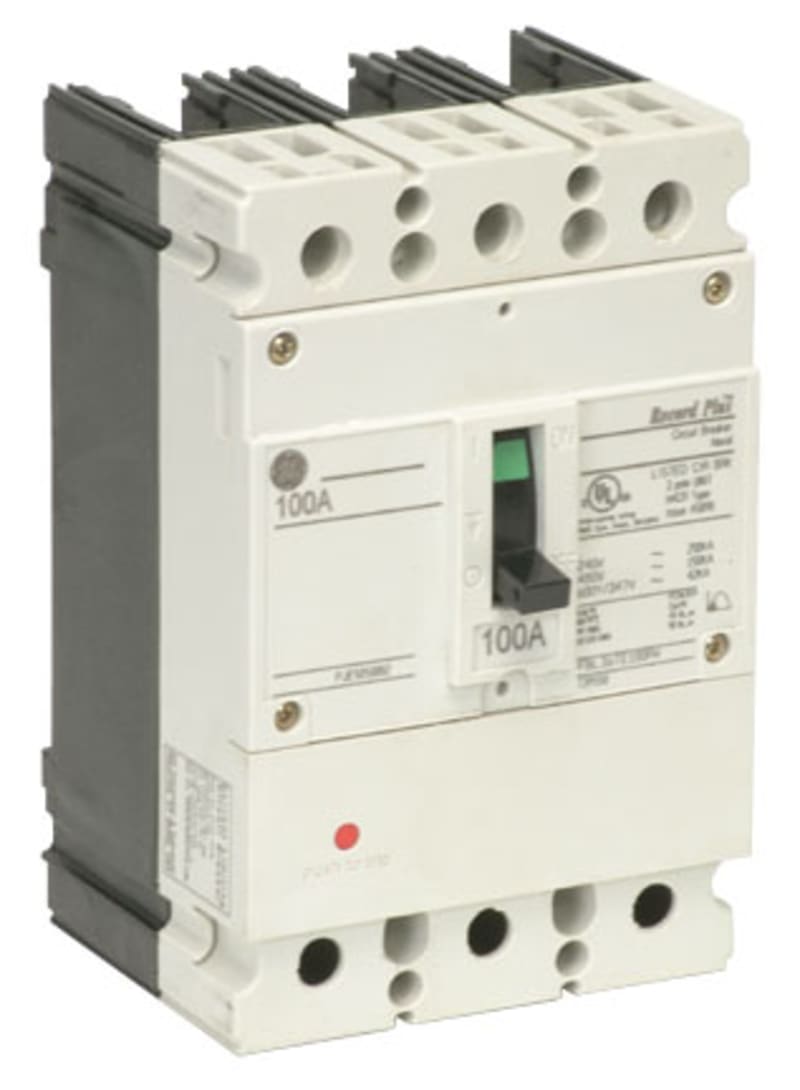

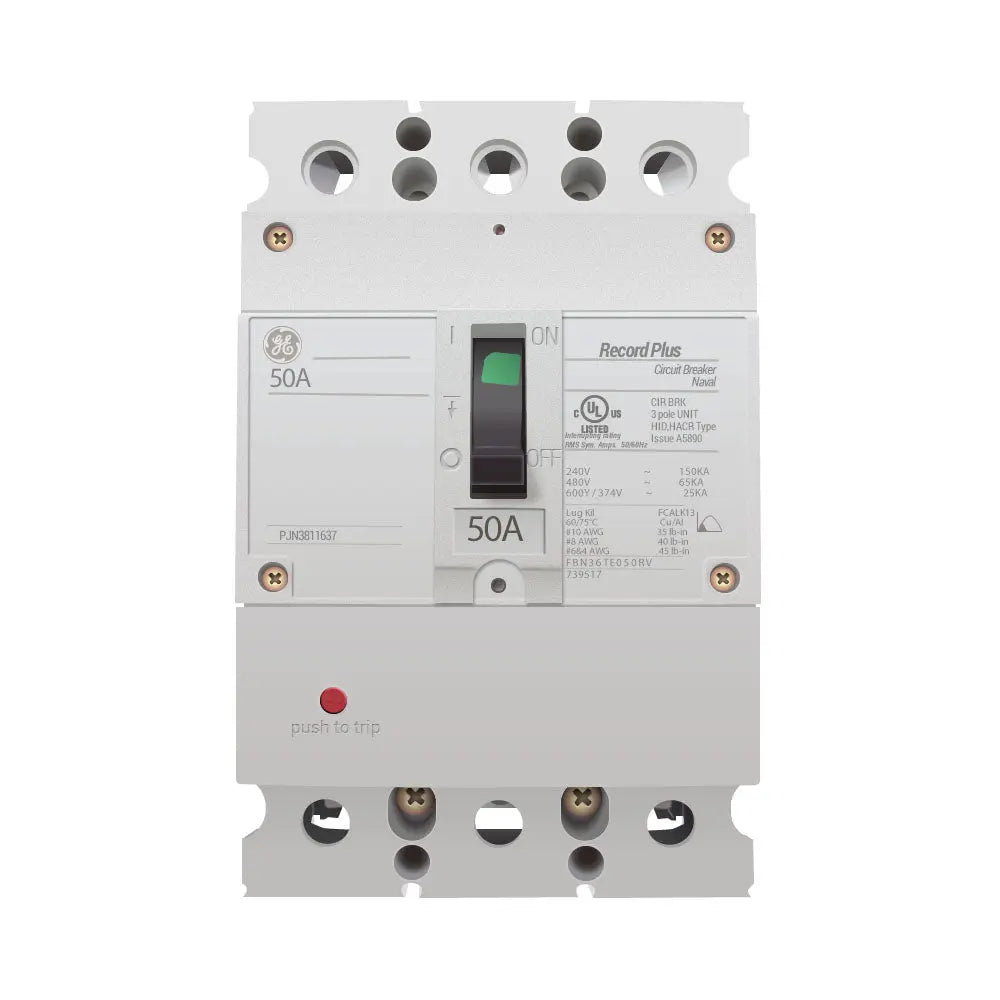

FBN36TE050RV is a General Electric Record Plus molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole, 50A, 600V AC breaker features bolt-on mounting and a thermal-magnetic trip unit for precise overcurrent protection. It is built to meet rigorous safety standards and is suitable for use in a wide range of electrical systems. This breaker is part of the FB frame series and offers a high interrupting rating for dependable performance. The compact design and robust construction ensure long-term reliability and easy installation in panelboards and switchgear.
- Part Number: FBN36TE050RV
- Manufacturer: General Electric
- Amperage: 50A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA @ 480V
- Series/Frame: Record Plus, FB
- Trip Unit: Thermal-Magnetic
- Standards: UL Listed, CSA Certified
- Application: Commercial, Industrial
- Weight: 3.25 lbs
Specifications
- Part Number: FBN36TE050RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164395198
- GTIN : 00783164395198
- Dimensions : Depth / Length 8.750 in X Height 4.750 in X Width 4.500 in
- Weight : 4
- Certification : UL
- Wire Size : 10 to 4 AWG
