Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN36TE045RV

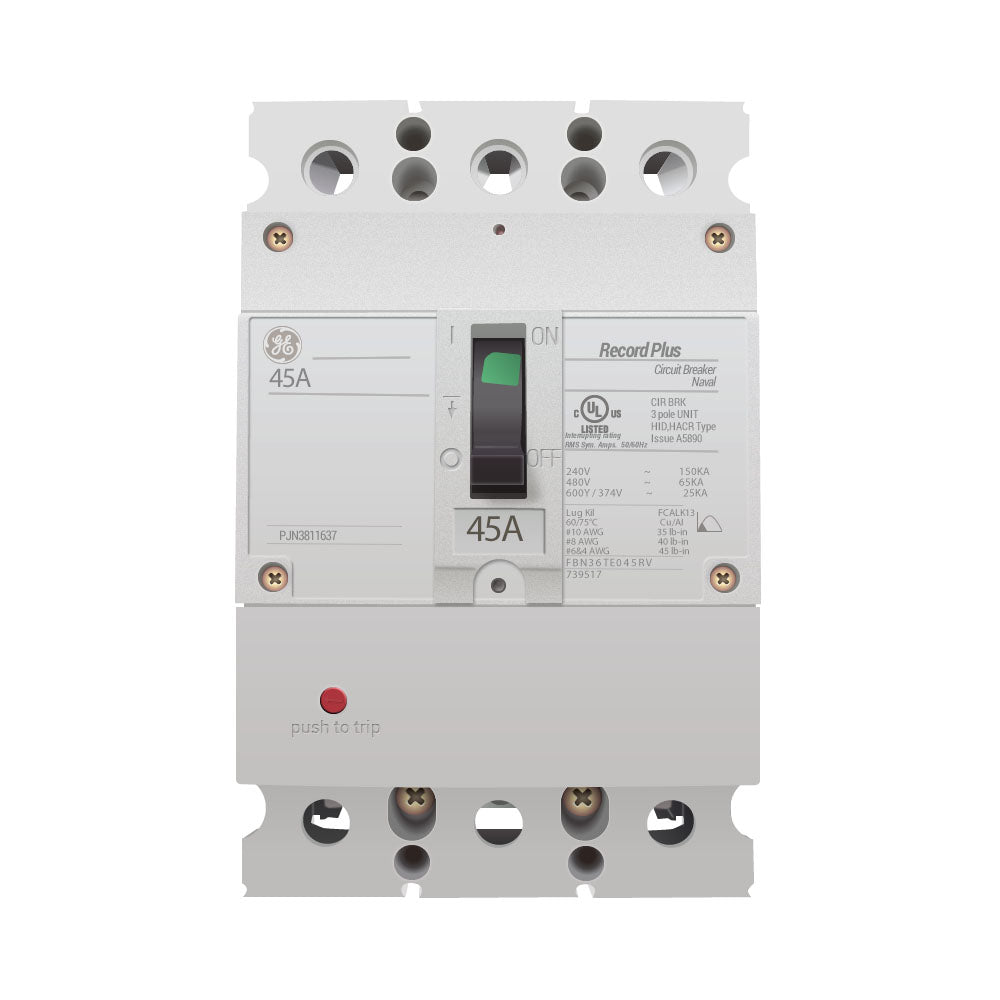

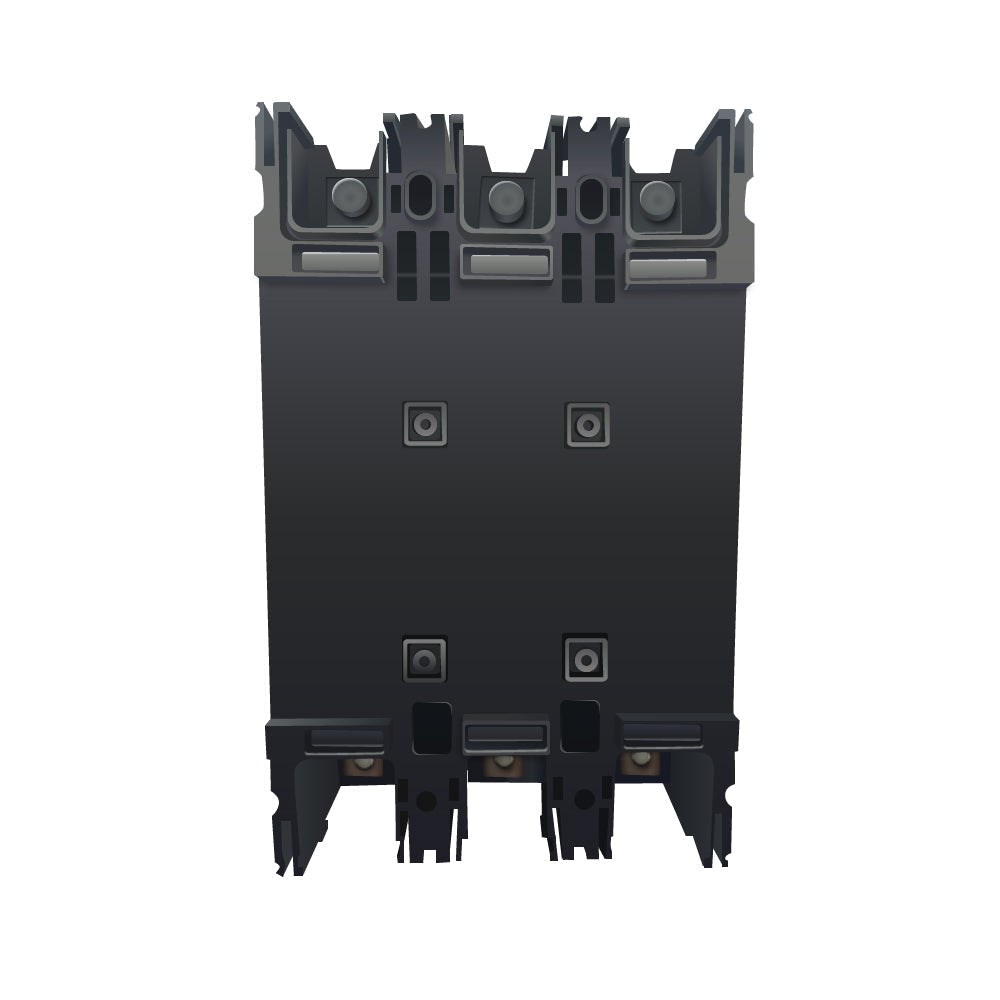

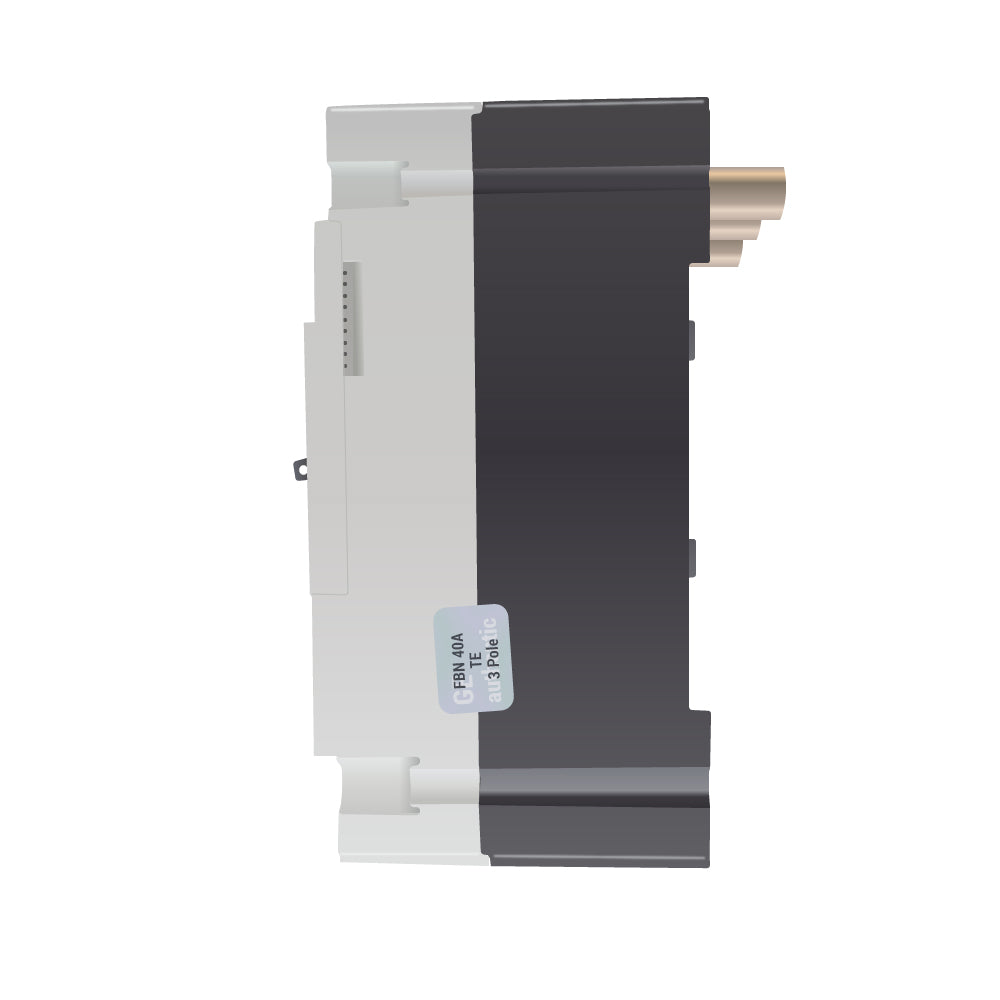

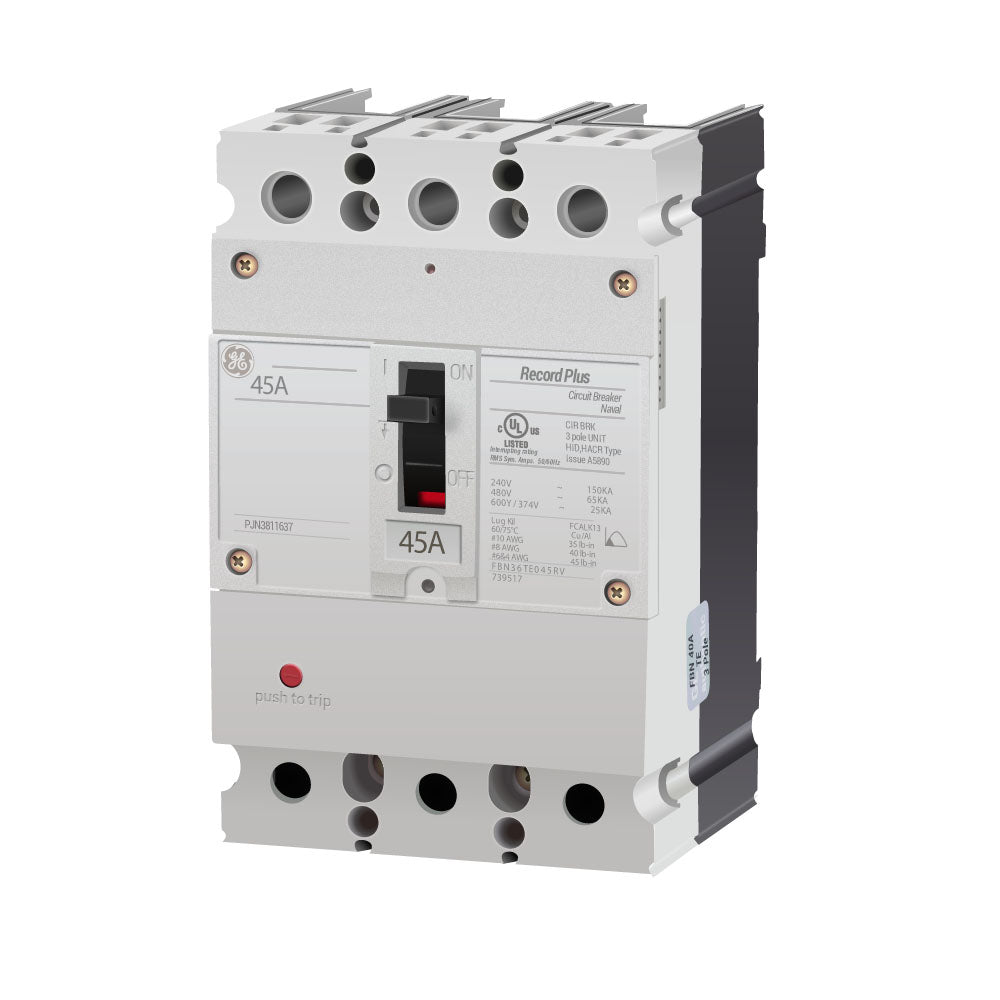

FBN36TE045RV is a General Electric 3-pole thermal magnetic molded case circuit breaker rated for 45 amps and 600 volts AC.
This circuit breaker features a FB100 frame with bolt-on mounting, designed for 3-phase applications. It offers a high interrupting capacity of 65kA at 480V, with long-time and instantaneous trip functions for reliable protection. The breaker includes load side lug terminals and complies with industry certifications for safety and performance.
- Key Specifications
- Amperage: 45 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Type: FB (FB100)
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection Type: Load Side Lug Terminals
- Phase: 3-Phase
- Certifications: Industry Standard Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FBN36TE045RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164395181
- GTIN : 00783164395181
- Dimensions : Depth / Length 8.750 in X Height 4.750 in X Width 4.500 in
- Weight : 4
- Certification : UL
