Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN36TE035RV

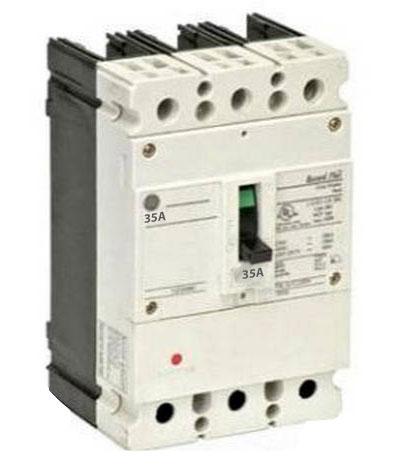

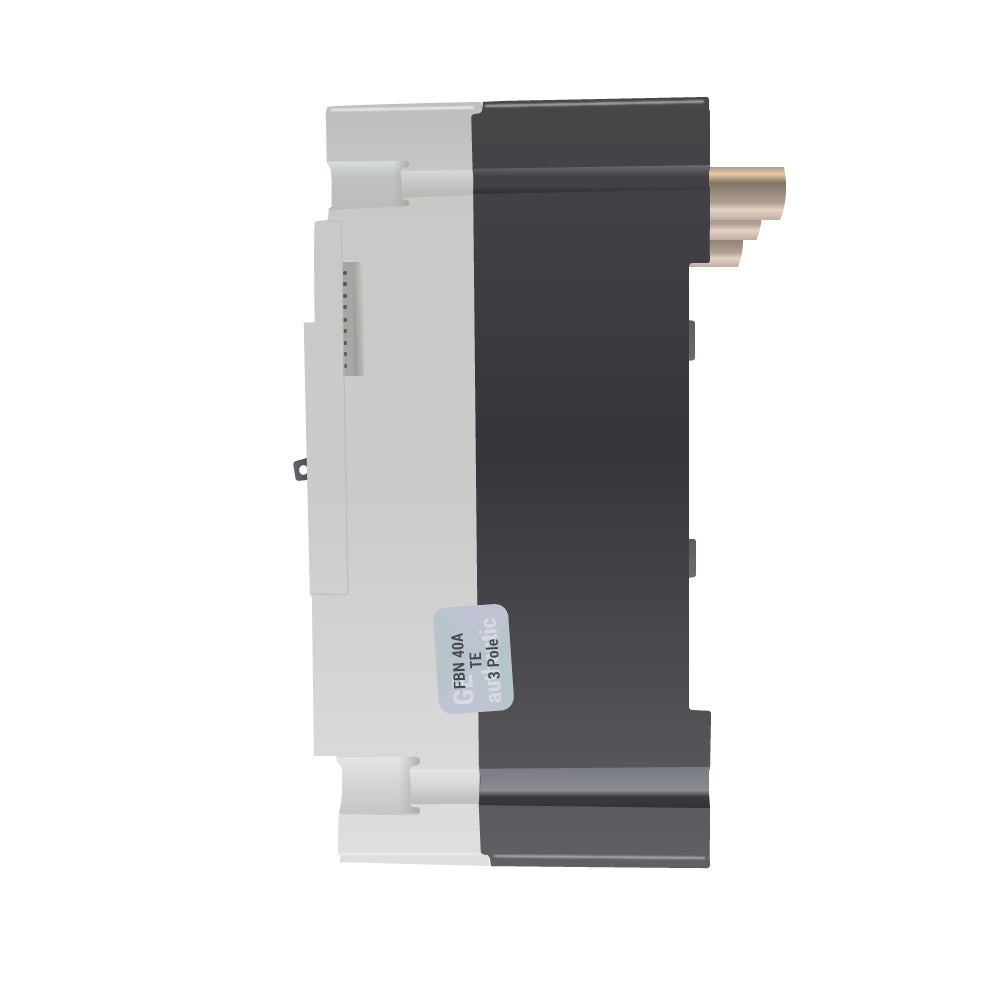

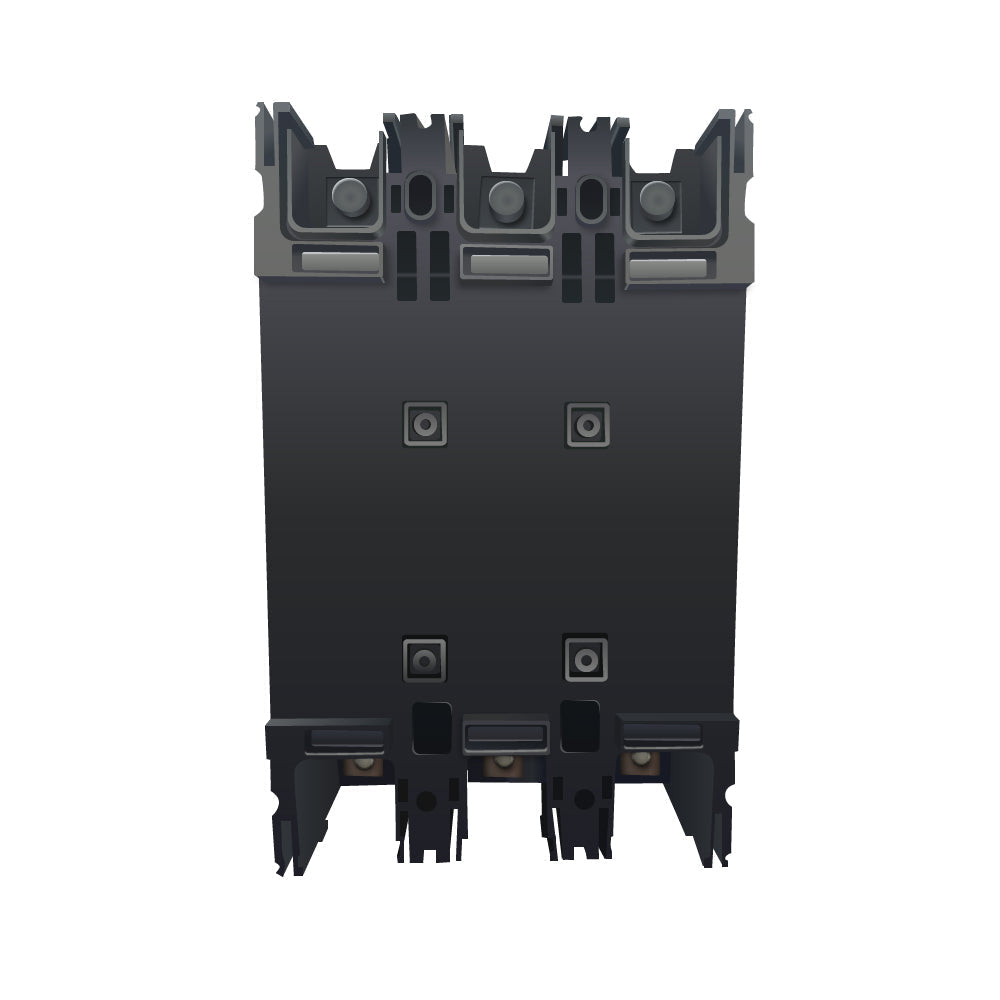

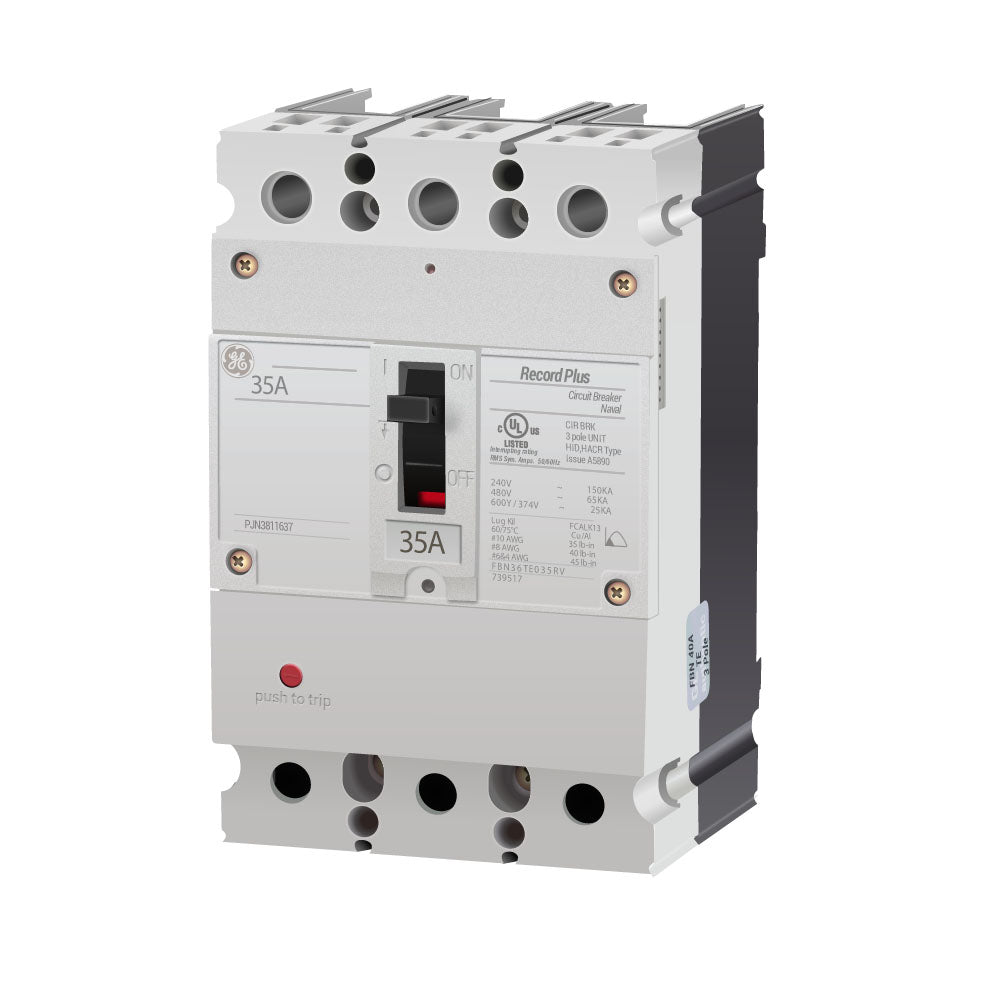

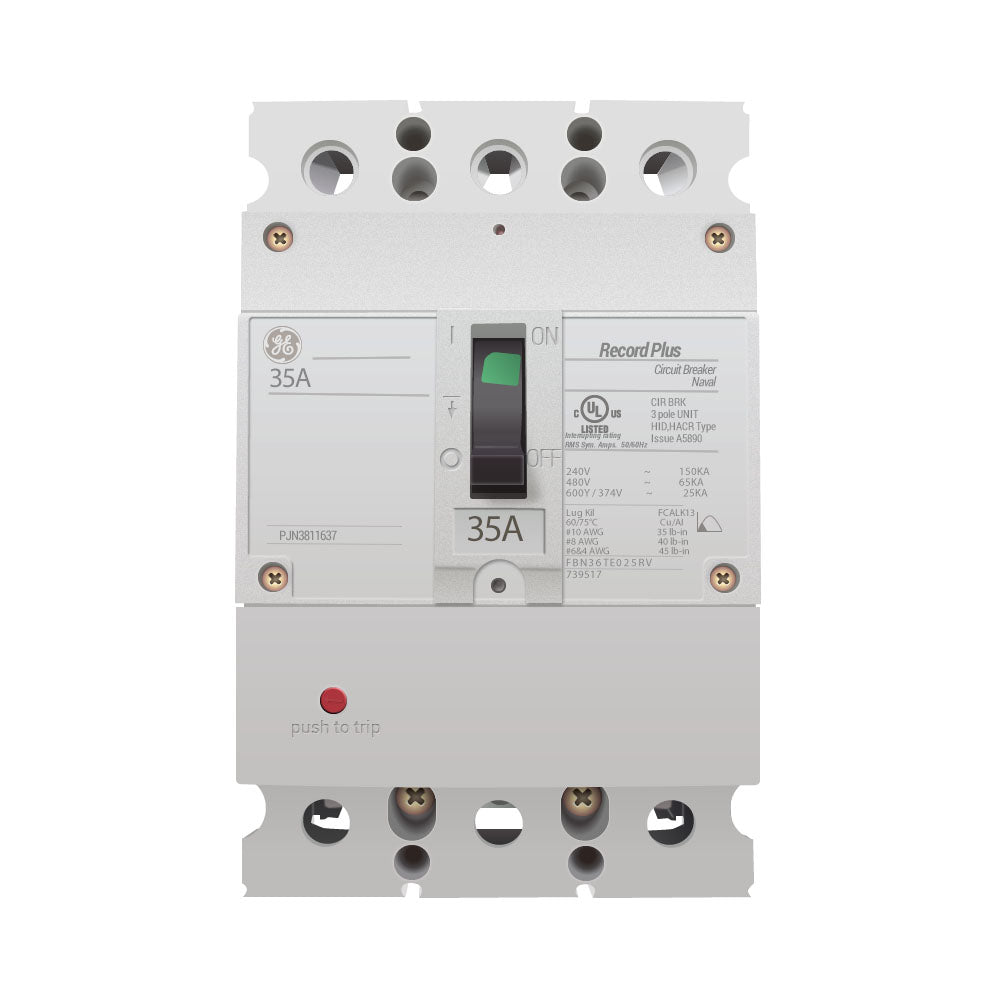

FBN36TE035RV is a General Electric 3-pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This breaker features a 35 ampere current rating and a 600 volt AC system voltage rating. It uses a thermal magnetic trip unit for dependable overload and short circuit protection. The breaker is part of the GE Record Plus series with an FB100 frame and bolt-on mounting type. It has a high interrupting rating of up to 150 kA at 240 VAC and 65 kA at 480 VAC, suitable for demanding electrical environments. The breaker is UL listed and CSA certified.
- Key Specifications
- Amperage: 35 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: FB100
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 150 kA at 240 VAC, 65 kA at 480 VAC
- Mounting Type: Bolt-On
- Series: Record Plus
- Certifications: UL Listed, CSA Certified
- Part Number: FBN36TE035RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 783164395167
- GTIN : 00783164395167
- Dimensions : Depth / Length 8.750 in X Height 4.750 in X Width 4.500 in
- Weight : 4
- Certification : UL
