FBN36TE030RV - General Electric 30A 600V 3-Pole Thermal Magnetic Circuit Breaker FB Frame

Save $471.29
SKU: FBN36TE030RV-New

Condition: New
Price:
Sale price$857.71 Regular price$1,329.00
Stock:
12 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

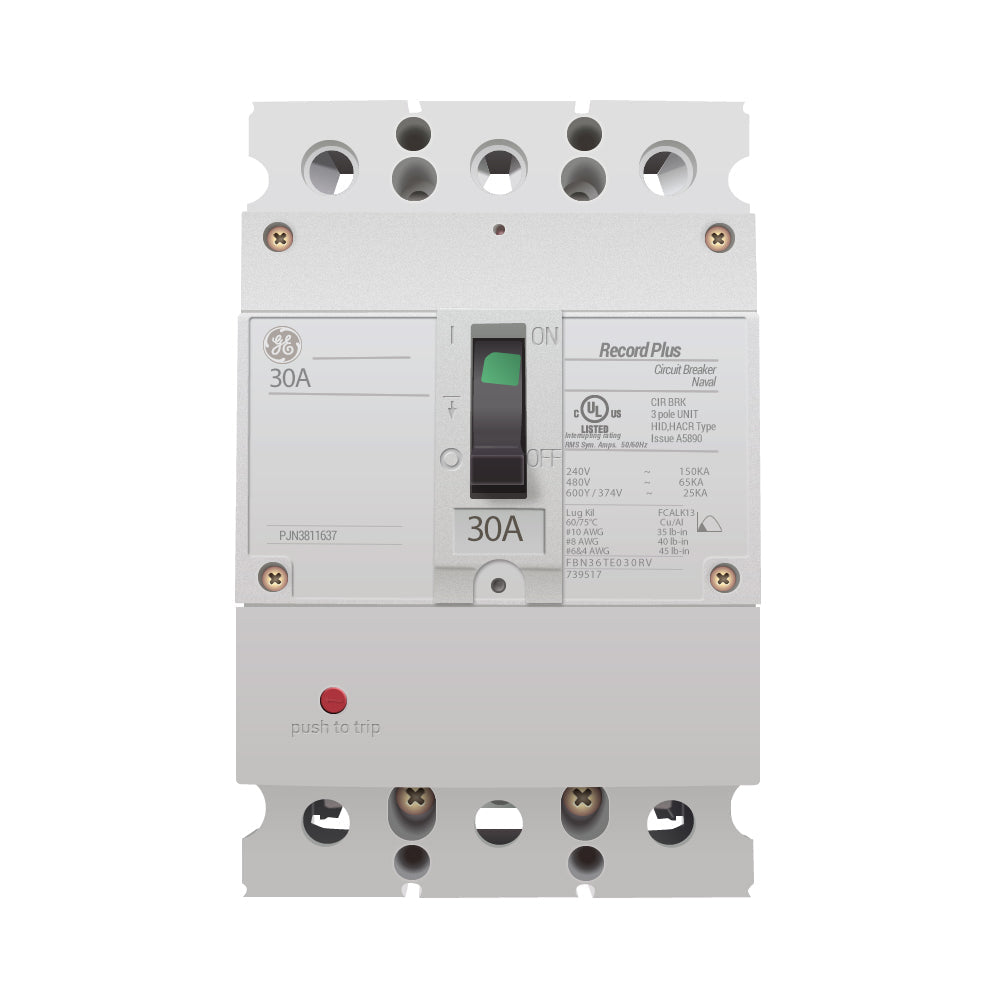

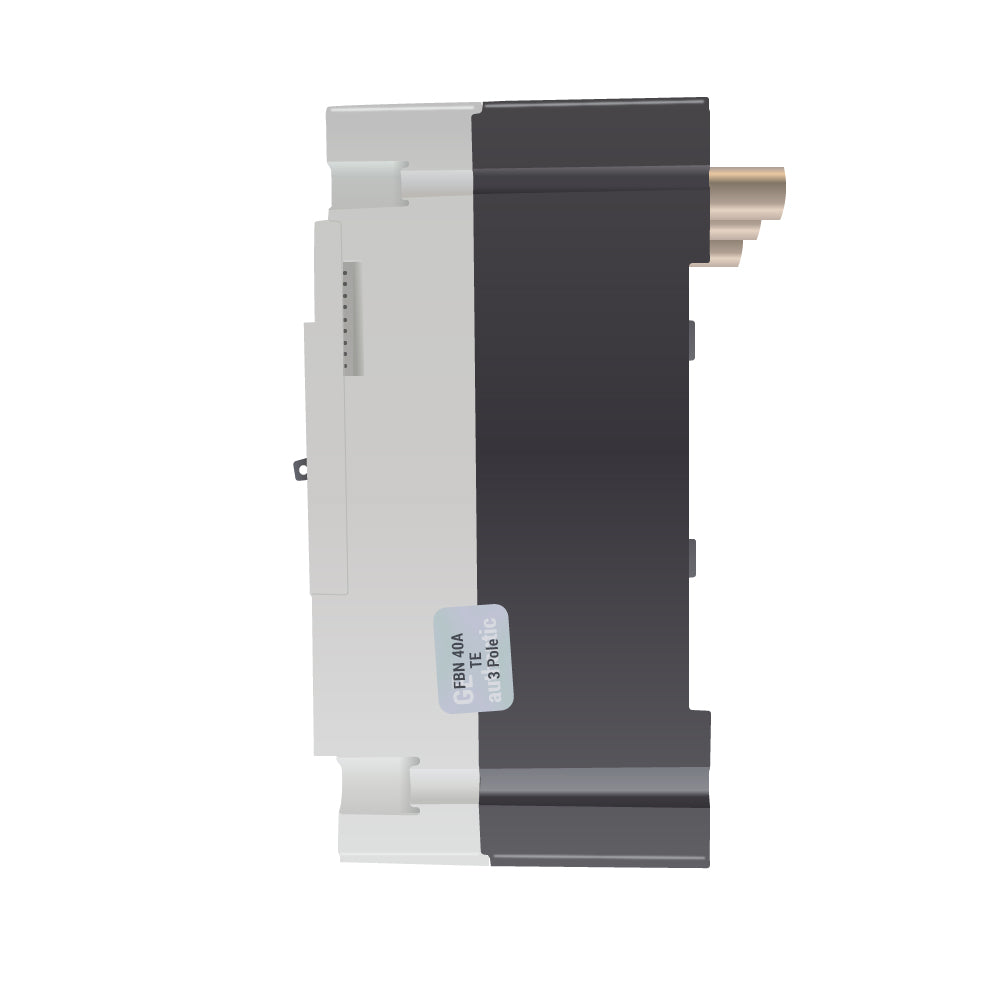

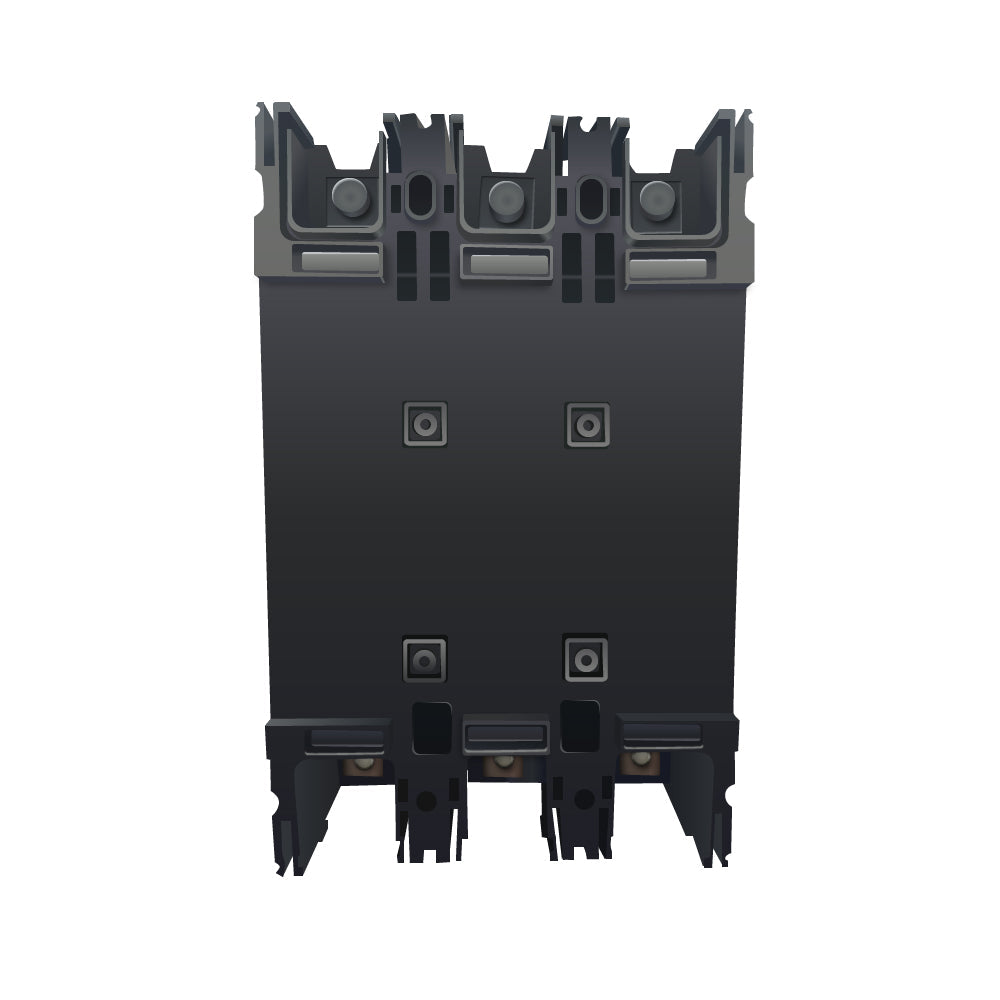

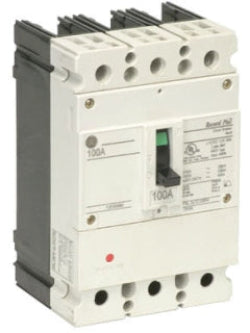

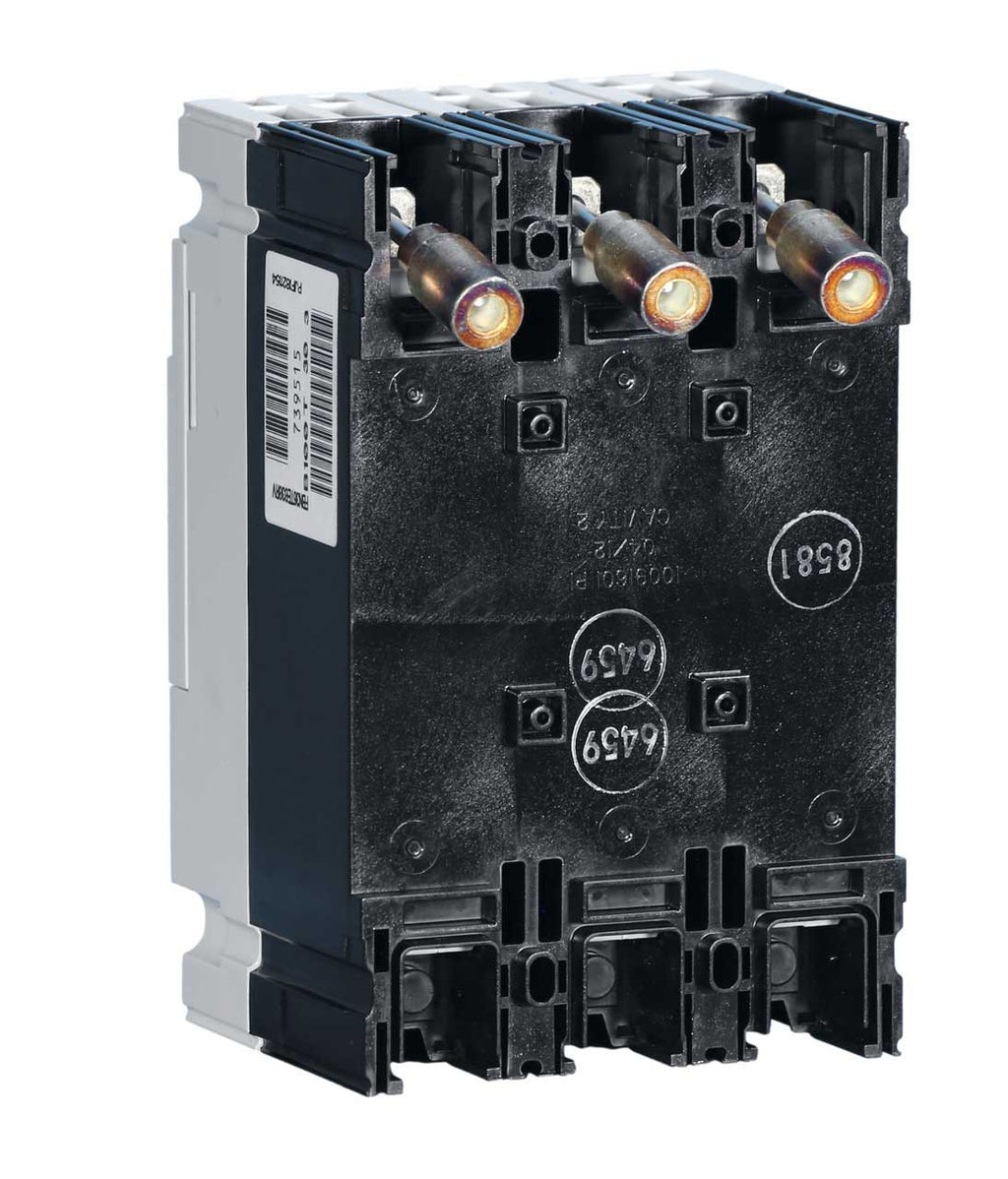

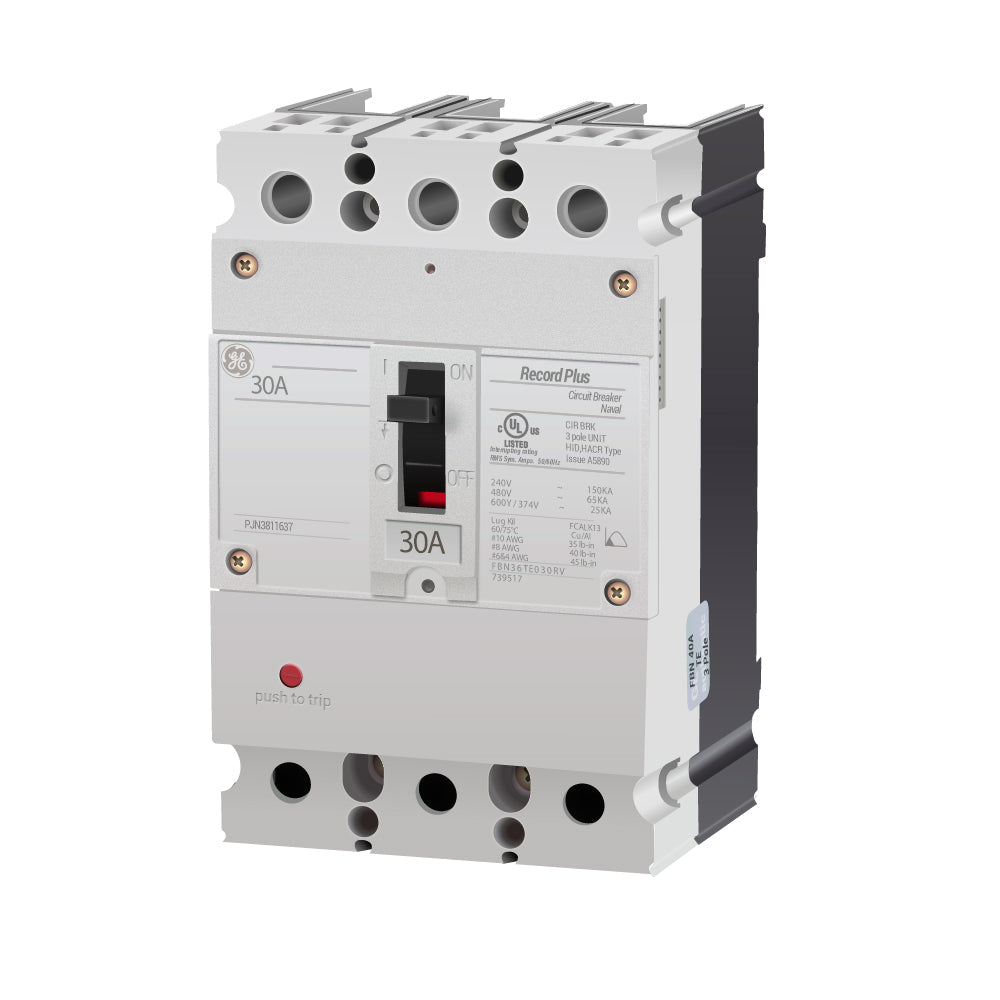

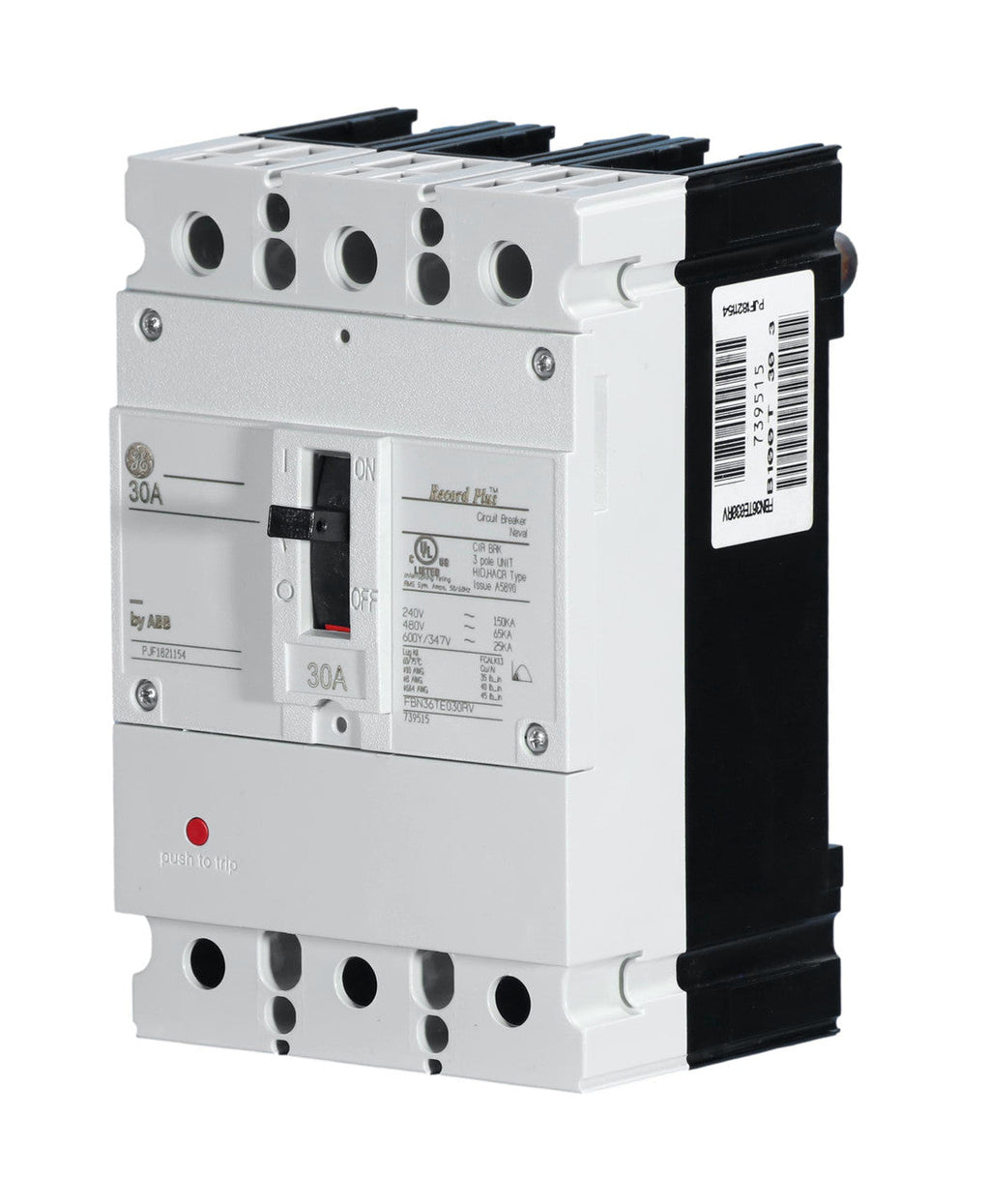

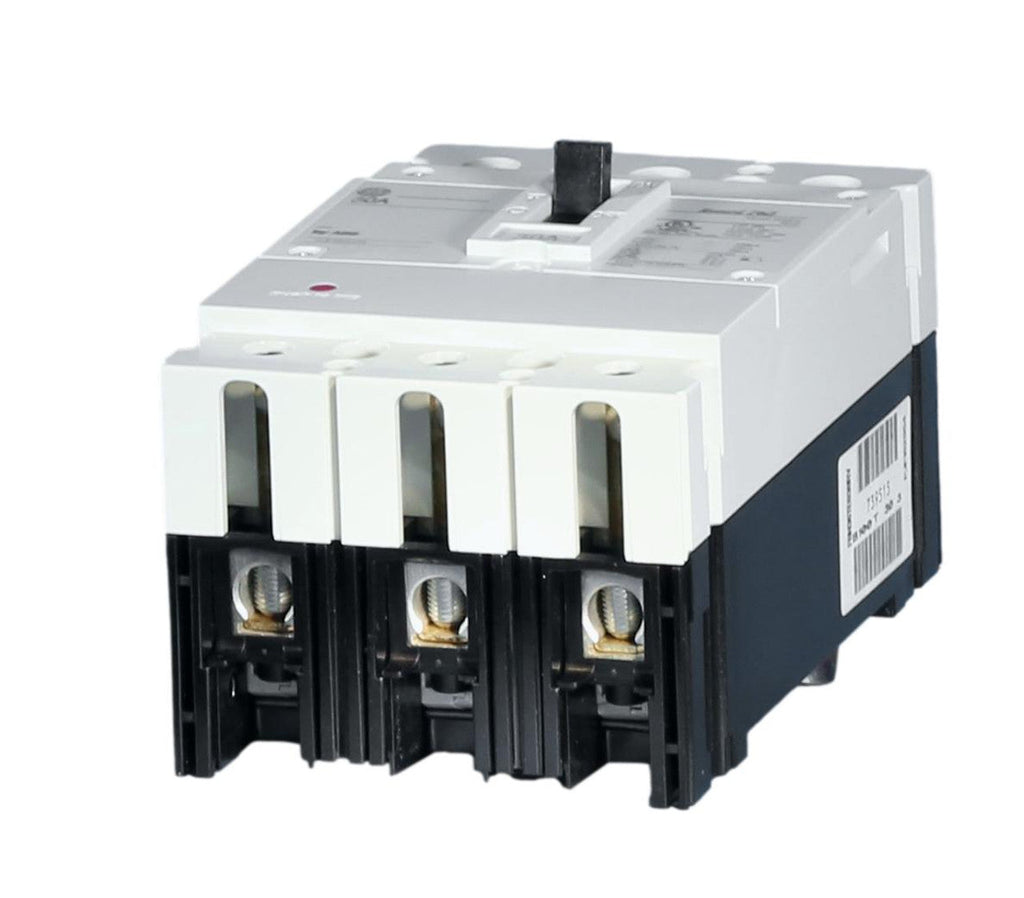

FBN36TE030RV


FBN36TE030RV is a 3-pole, 30 amp, 600 volt thermal magnetic molded case circuit breaker from General Electric's Record Plus series.This circuit breaker features a FB100 frame type with bolt-on mounting, designed for high interrupting capacity applications. It includes long-time and instantaneous trip functions (LI trip unit) and is suitable for use in 240V, 480V, and 600/347V systems with interrupt ratings of 150kA at 240V, 65kA at 480V, and 25kA at 600/347V. The breaker supports reverse feed and uses load side lug terminals with wire range 10-4 AWG copper/aluminum. It carries UL certification (UL File #E11592) and HACR markings.
    Key Specifications
    • Amperage: 30 A
    • Voltage Rating: 600 V AC
    • Poles: 3
    • Frame Type: FB100
    • Mounting Type: Bolt-On
    • Interrupting Rating: 150kA @ 240V, 65kA @ 480V, 25kA @ 600/347V
    • Trip Unit: Thermal Magnetic (LI - Long Time and Instantaneous)
    • Wire Range: 10-4 AWG Cu/Al
    • Suitable for Reverse Feed: Yes
    • UL Listed: Yes (UL File #E11592)
    • HACR Rated: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FBN36TE030RV
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Record Plus
  • Type : FBN
  • Voltage : 600
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164395150
  • GTIN : 00783164395150
  • Dimensions : Depth / Length 8.750 in X Height 4.750 in X Width 4.500 in
  • Weight : 4
  • Certification : UL
  • Wire Size : 10 - 4 AWG copper/aluminum
