Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN26TE035RV

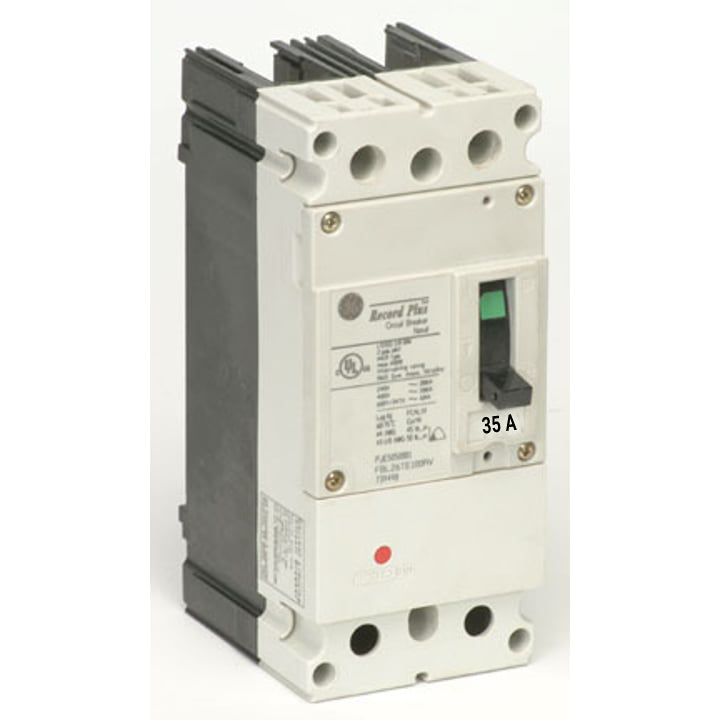

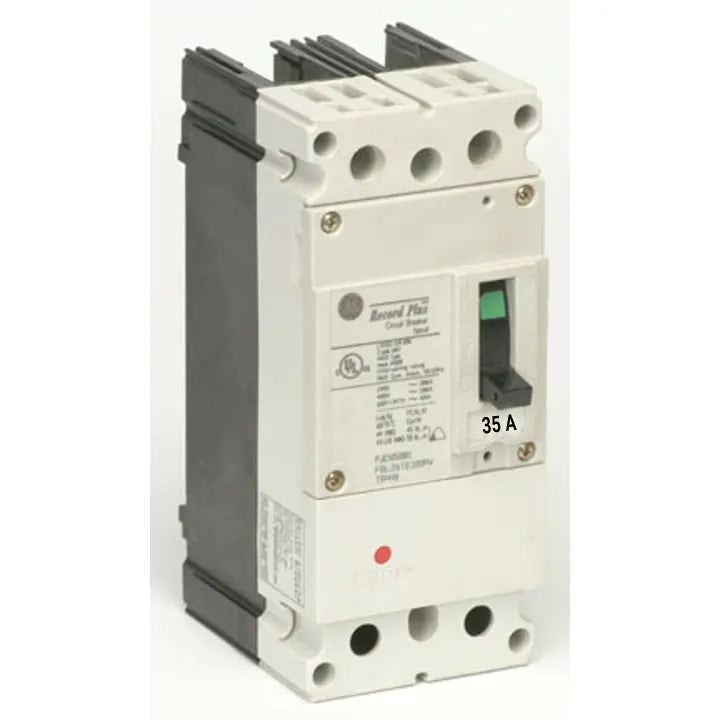

FBN26TE035RV is a 2 pole, 35A, 600V molded case circuit breaker from the General Electric Record Plus family, designed for reliable thermal magnetic protection in commercial and industrial applications. This breaker features a bolt-on mounting style, fixed long time and instantaneous trip functions, and is suitable for use in 600Y/347VAC systems. It is UL listed and HACR rated, making it ideal for HVAC and refrigeration circuits. The FBN26TE035RV is engineered for high interrupting capacity and dependable performance in demanding environments.
- Part Number: FBN26TE035RV
- Manufacturer: General Electric
- Series: Record Plus
- Frame Type: FB 100
- Amperage: 35A
- Number of Poles: 2
- Voltage Rating: 600Y/347VAC
- Mounting Type: Bolt-On
- Interrupting Rating: 65kAIC @ 480VAC
- Trip Unit: Thermal Magnetic (LI)
- Certifications: UL Listed, HACR
- Terminal Connection: Load Side Lug
Specifications
- Part Number: FBN26TE035RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164394641
- GTIN : 00783164394641
- Dimensions : Depth / Length 8.500 in X Height 4.250 in X Width 3.250 in
- Weight : 3
- Certification : UL
