Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBN26TE030R2

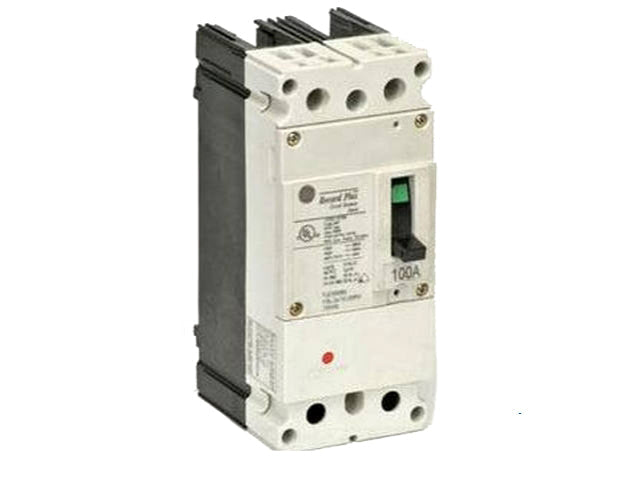

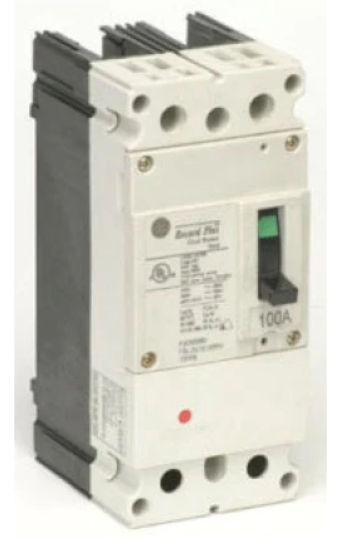

FBN26TE030R2 is a General Electric Record Plus thermal magnetic molded case circuit breaker designed for reliable power distribution and motor protection in industrial and commercial applications. This bolt-on breaker delivers consistent performance with fixed thermal and fixed magnetic trip protection, suitable for HACR (Heating, Air Conditioning, and Refrigeration) load applications. The breaker features a compact FB 100 frame design that integrates seamlessly into standard panelboards and distribution equipment. Key Specifications
- Amperage: 30 A
- Voltage: 600 VAC (also rated 240 VAC and 480 VAC)
- Poles: 2
- Mounting: Bolt-On
- Trip Type: LI (Long-Time and Instantaneous)
- Protection: Thermal Magnetic
- Frame Type: FB 100
- Interrupting Rating: 150 KAIC at 240V, 65 KAIC at 480V
- Load Rating: HACR
- Minimum Wire Size: 14 AWG
Specifications
- Part Number: FBN26TE030R2
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBN
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164335477
- GTIN : 00783164335477
- Weight : 3
